    T-MOTOR VL8020

    VL Series
    Propulsion System

    VL8020 KV170

    MOTOR

    V150A

    ESC

    VZ28

    PROPELLER

    T-MOTOR VL8020

    Fast and economical
    propeller locking

    Fast (Lock the propeller in seconds)

    The 360° custom angle propeller-locking can effectively avoid the turbulence caused by the rotation of the rotor and ensure that the aerodynamic layout of the fixed-wing aircraft is not affected, thereby improving flight safety

    Economical (Adaptive propeller locking)

    The ESC can automatically adjust the current to control the torque to lock the propeller as per the change of external force, reducing power consumption and heat to achieve energy saving

    Recommendation

    12S

    Voltage

    19.7kg

    Max Thrust/Arm

    35kg

    Recommended MTOW(Quad)

    Technical Drawing


    Specification
    Model No.VL8020Magnet Level180℃
    Motor SizeΦ88.8*45.5mmLead CableSilicone wire13# 1000mm
    Stator150°C high temperature
    -resisting coatings    		Copper Wire220℃
    Configuration24N28PCoil Insulation Test1000V/5s
    Shaft DiameterIN: 12 OUT: 10Rotor Dynamic BalanceStandard≤10mg
    BearingImported 6901IPIPX5
    CentrifugalCooling DesignYESPackage Size150*120*57mm
    Model No.VL8020KV (RPM/V)170
    Rated Voltage (LiPo)12SIdle Current (15V)2.4A
    Internal Resistance(25℃)32mΩPeak Current116A
    Continuous Power(180s)1760WAmbient Temperature-30℃～55℃
    Max. Thrust19.7kgMotor Weight(indl. Cable)735g
    ESC specs.
    Model No.V150AControlPWM/CAN
    Max. Voltage60VProtocolDRONE CAN/UAV CAN
    Peak Current (10s)160A (Under certain heat
    dissipation conditions)    		Propeller-lockingElectronicPropeller
    -locking
    Continuous Current70A (Under certain heat
    dissipation conditions)    		Encoder cablesShielded cables-Black
    -24AWG-5C-450±10mm
    -M6 aviation connector
    Standby Consumption≤50mAOutput CableSilicone wire-orange
    -10AWG-150±10mm
    Throttle Pos. Range1040~1940us (fixed)Input CableSilicone wire-red/black
    -10AWG-200±10mm
    Throttle RefreshFrequency50~500HzSignal CableShielded cables-Black
    -OD4.2-5C-500±10-JP
    -3P*2-Black blank white
    -green yellow gray
    Throttle ResponseSpeed300msWeight (Incl. cables)295g
    Prop specs.
    Model No.VZ28*10.8 inch (711.2*274.32mm)Weight (Single Blade)80±5g
    Test Data
    TypeThrottleVoltage
    (V)    		Thrust
    (g)    		Torque
    (N*m)    		Current
    (A)    		RPMPower
    (W)    		Effciency
    (g/W)    		Operating
    Temperature
    (℃)
    VL8020 KV170
    +
    V150A 14S
    +
    VZ28*10.8    		40%44.4037831.268.8723573949.6172
    (Ambient
    Temperature:
    25)
    42%44.3741861.4010.2124734539.24
    44%44.3546201.5311.7125895198.89
    46%44.3150661.6713.3027035898.59
    48%44.2854981.8214.9828156638.29
    50%44.2559721.9716.8429247458.01
    52%44.2064362.1218.7830328307.75
    54%44.1669232.2820.8831399227.51
    56%44.1274262.4423.13324510217.28
    58%44.0779382.6025.52334811247.06
    60%44.0284692.7828.14345412396.84
    62%43.9690162.9630.89355513586.64
    64%43.8995523.1333.73365214816.45
    66%43.84100923.3036.77374816126.26
    68%43.76106273.4839.91384217466.09
    70%43.69111583.6543.15393218855.92
    80%43.28138924.5661.99436126835.18
    90%42.71164225.3984.09471535924.57
    100%42.11183216.02109.61496446163.97
    VL8020 KV170
    +
    V150A 14S
    +
    VZ28*10.8    		40%49.8847561.5710.8226295408.8172
    (Ambient
    Temperature:
    25)
    42%49.8552431.7312.4327556208.46
    44%49.8257501.9014.1828797068.14
    46%49.7862822.0716.0830038007.85
    48%49.7568232.2418.1431239027.56
    50%49.7173862.4320.37324210127.30
    52%49.6779842.6222.81335811337.05
    54%49.6185792.8125.37347312586.82
    56%49.5691893.0128.14358613956.59
    58%49.5097913.2131.00369615356.38
    60%49.44104313.4234.19380716906.17
    62%49.37110593.6237.43391318485.98
    64%49.30116803.8340.87401420155.80
    66%49.23123074.0344.43411421875.63
    68%49.15129164.2348.11421023655.46
    70%49.08135284.4351.97430425505.30
    80%48.61163755.3873.08471235534.61
    90%48.10185946.1195.83499446104.03
    100%47.64196796.48115.38512254963.58

    Note: Temperature in the chart is the bell temperature after running @75% throttle on 44.4V for 10mins.

    （Date above based on benchtest are for reference only,comparion with that of other motor types is not recommended.）

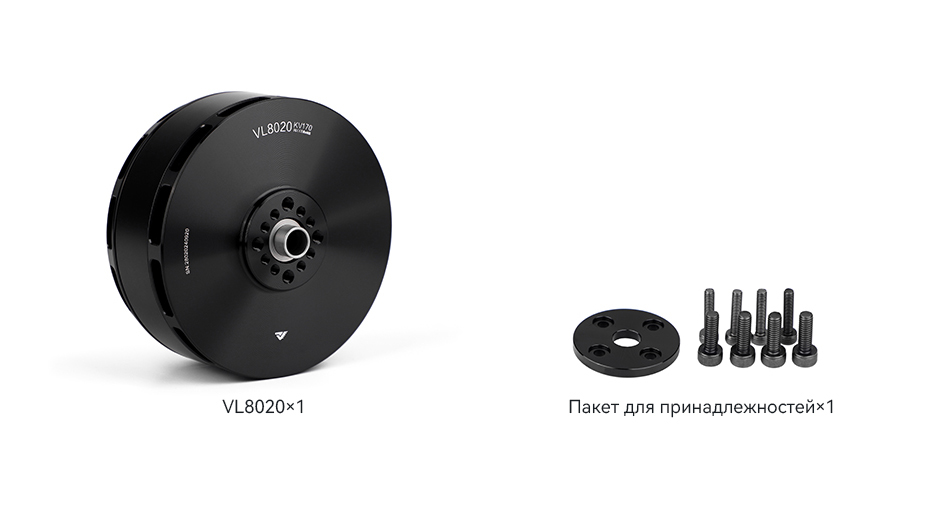

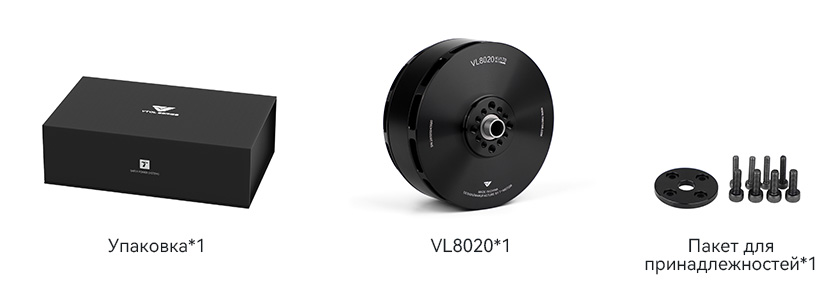

    Packing List


    Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@tmotor.com " in time.
