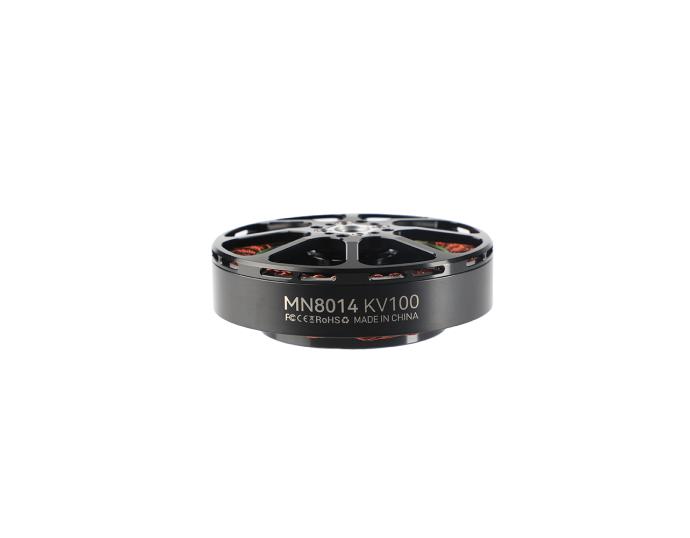

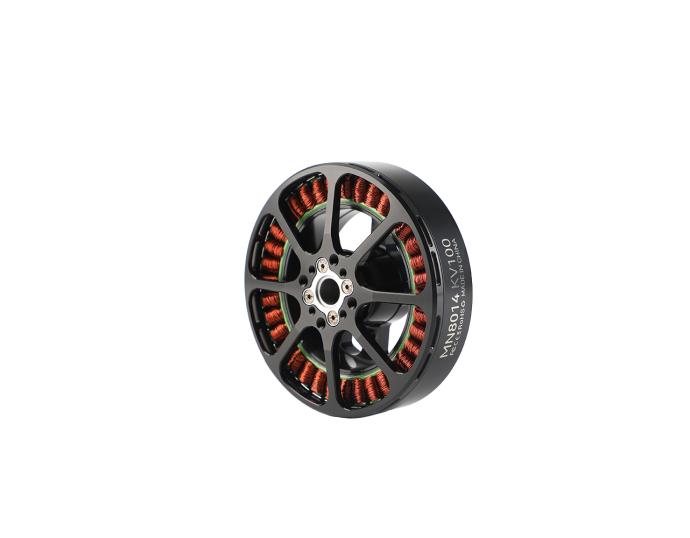

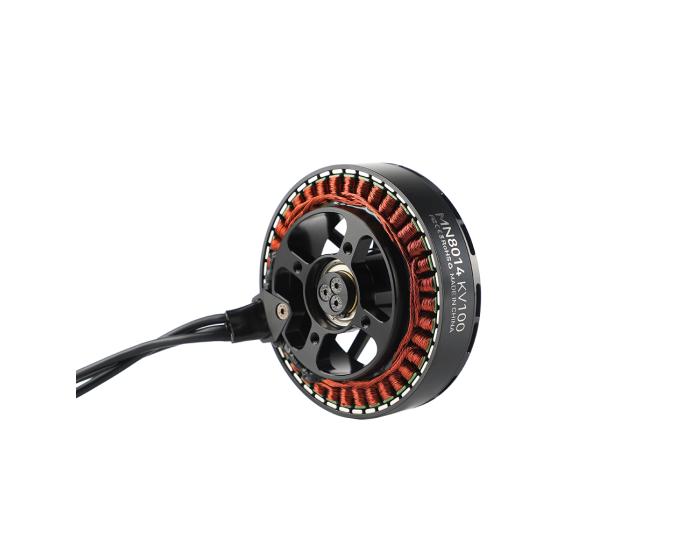

    MN8014 Antigravity Multirotor VTOL UAV Motor KV100

    279.90

    Available points: 13000 Points Points reward: 279 Points

    • Ultra light, high efficiency

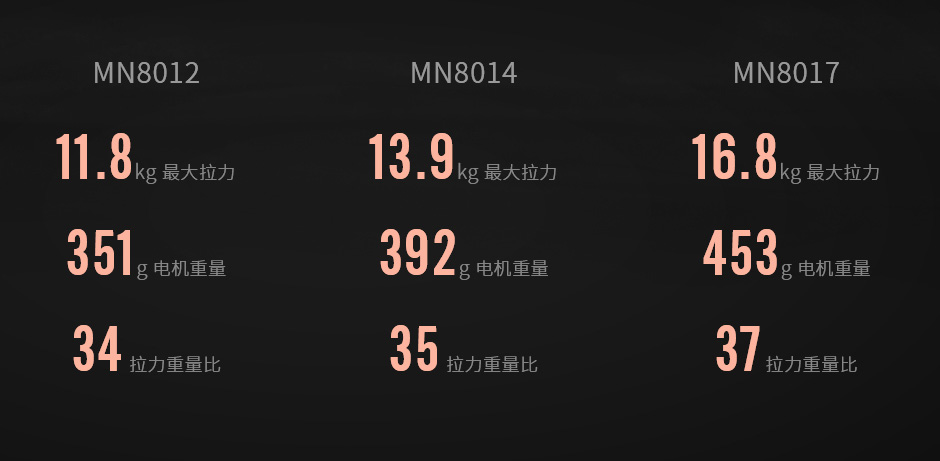

    • Max.Thrust:13.9kg, Motor Weight:392g, Power Ratio:35
    KV：
    • KV100
    Quantity：

    279.90

    USD200 Consumption Free Shipping by International Express (Excl. Remote Areas and Special Items).

    Relevant Products

    • Detail information
    • Specifications

    Hot Products

    About T-MOTOR MN8014 Multirotor VTOL UAV Motor KV100


    T-Motor Antigravity MN8014 KV100 Brushless Motor is designed to deliver exceptional power and reliability for professional UAVs, including multi-rotors and VTOL applications. With a maximum thrust of 13.9kg and a power ratio of 35, this motor provides the perfect balance of performance and durability, ensuring smooth, stable flights even under heavy loads.


    Antigravity MN8014 Highlights:


    • Ultra light, high efficiency

    • Max.Thrust:13.9kg, Motor Weight:439g, Power Ratio:35

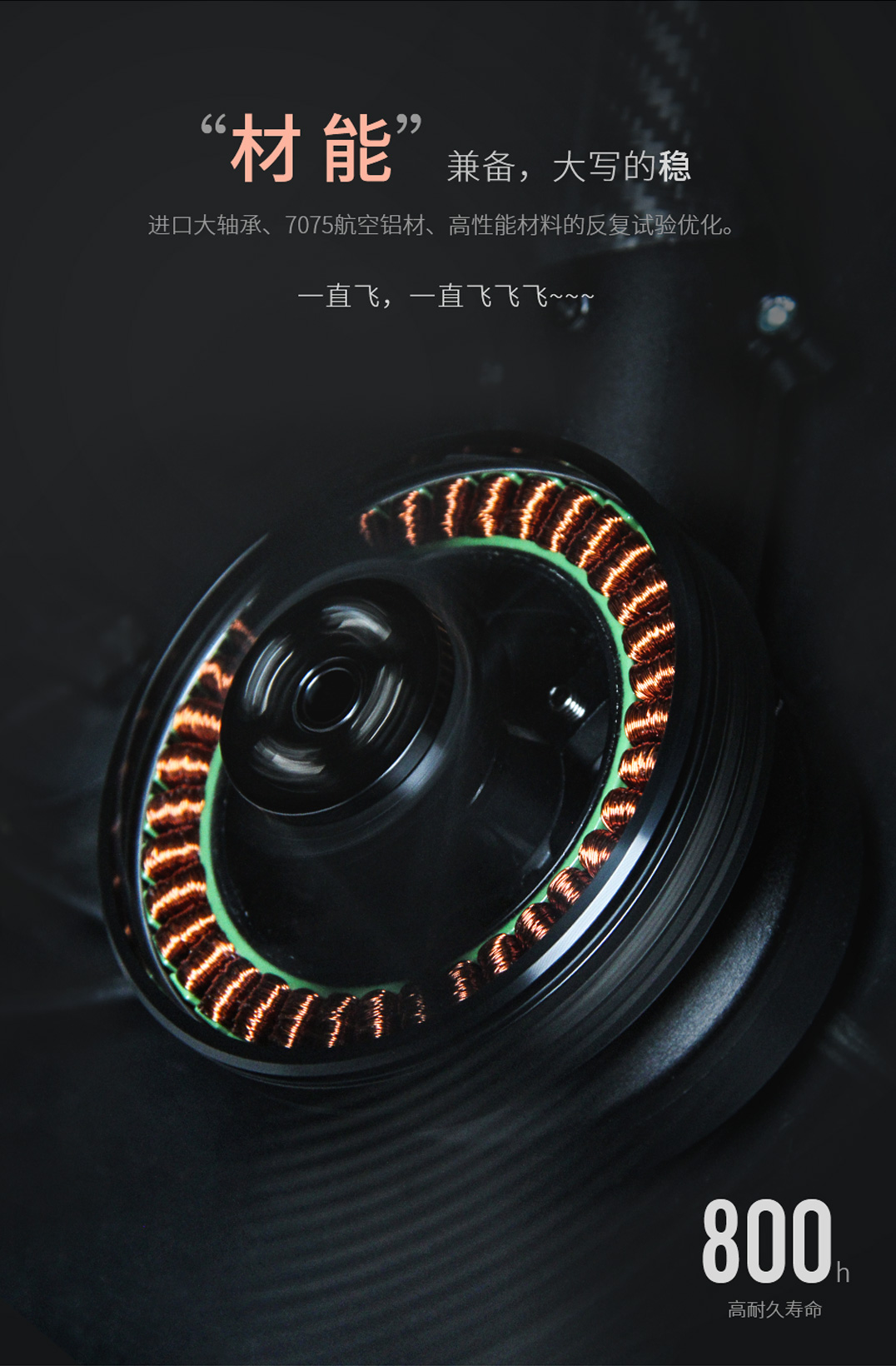

    • Employment of 15mm aluminium shaft and 24mm big bearing for stability improvement and service life extension.

    • Motor service life: 800 hours

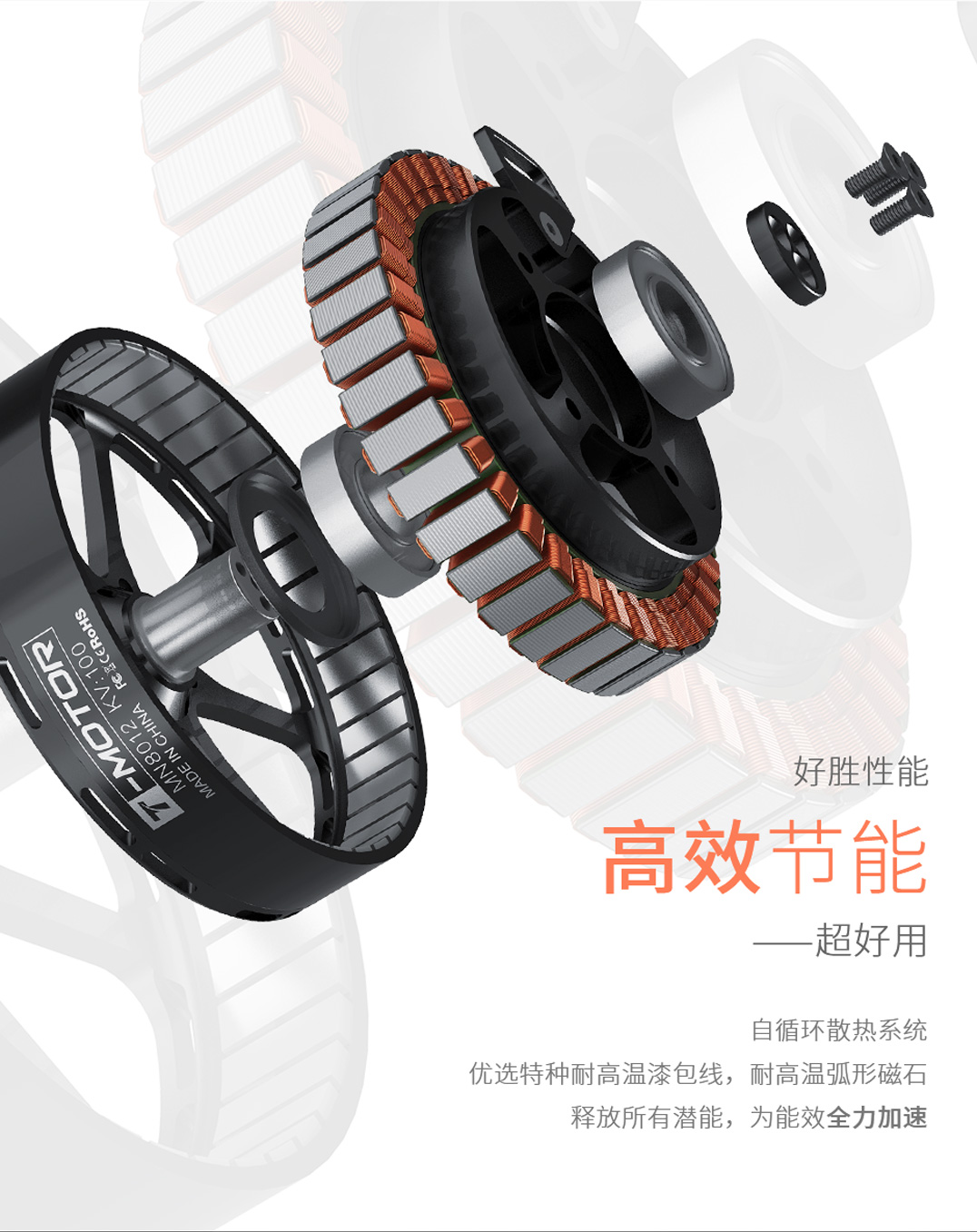

    • Self-circulating cooling system, high-temperature-resistant wires and arc magnets help release all potential for high efficiency.

    • Imported bearings and high strength 7075 aviation aluminium alloy for long motor endurance.


    " Antigravity Series" motors are an ultra-light zero gravity for Multi-rotor motor.
    High-Qualityimported Materials; High Slot Space Factor On Winding For Longer, Clearer And More Stable Flight.


    Application Areas：


    Multi-rotors, VTOL，UAVs，Heavy-duty professional drones

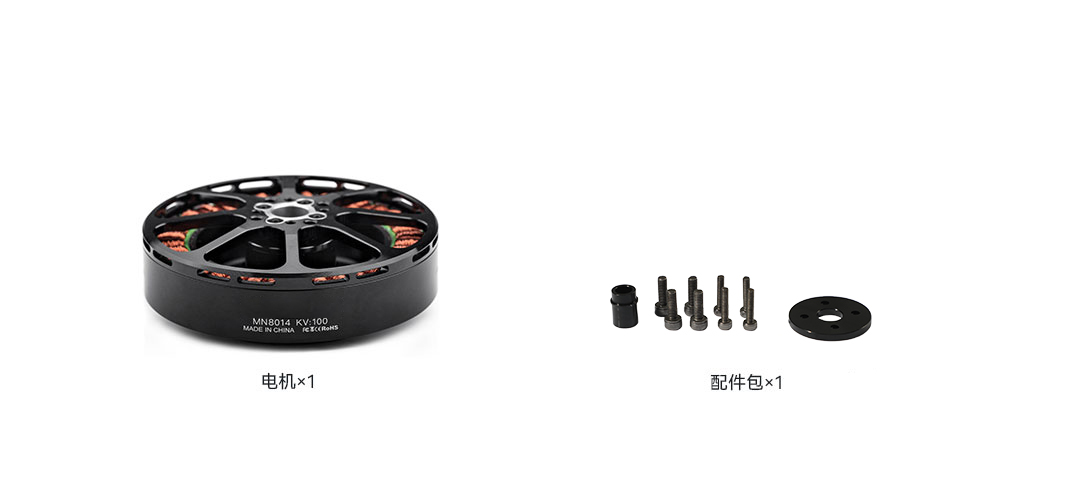

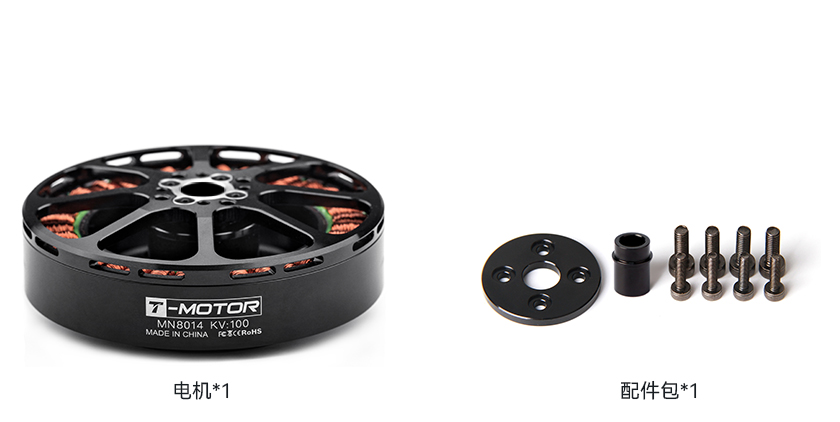

    Packing List Includes:


    1 x T-MOTOR MN8014 Motor KV100( kv which you choose)

    1 x Hardware pack

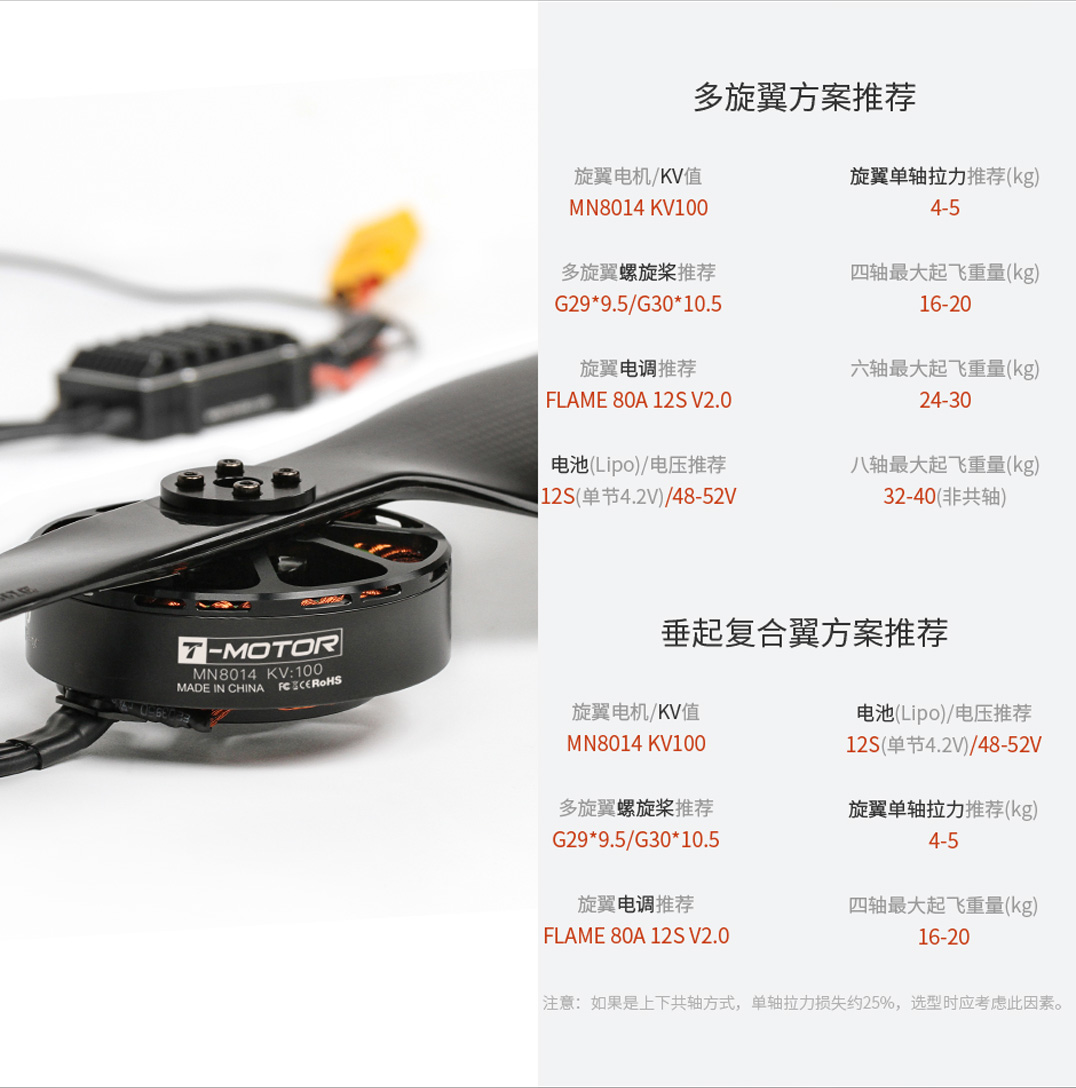

    Matching Guide:


    T-MOTOR Propeller G29*9.5 / G30*10.5 / FLAME 80A 12S V2.0 ESC


    If you have any questions or inquires, please contact us:  onlinesales@tmotor.com


    Technical Drawing


    Specification Export to Excel
    Motor SizeΦ87.8*31.5mmMagnet Level180℃ high temperature resistance
    StatorAnti-rust treatment;
    180℃high temperature-resisting coatings    		Lead14AWG*90mm
    Configuration36N42PCopper Wire220℃ high temperature resistance
    Shaft DiameterIN：12mmCoil Insulation Test1000V/5s
    BearingImported 6901ZZRotor Dynamic Balance Standard≤15Mg
    KV100Rated Voltage(Lipo)12S
    Idle Current（24V）1.4AInternal Resistance65mΩ
    Peak Current（180s）52AWeight (Incl. Cable)392g
    Max. Power （180s）2423WPackage Weight602g
    Test Data Export to Excel
    TypePropellerThrottleVoltage
    (V)    		Thrust
    (g)    		Torque
    (N*m)    		Current
    (A)    		RPMPower
    (W)    		Efficiency
    (g/W)

    Operating

    Temperature

    (℃)
    MN8014
    KV100

    T-MOTOR

    G29*9.5”

    		40%47.7223250.794.00174019112.2066℃
    45%47.6928310.955.17191024711.48
    50%47.6634691.166.80210832410.70
    55%47.6042831.429.1123334349.88
    60%47.5351361.6911.5925525519.32
    65%47.4760191.9914.7627607018.59
    70%47.3969412.2818.1929588628.05
    75%47.3378182.5621.59313610227.65
    80%47.2587122.8525.48330012047.24
    90%46.99105363.4433.82360315896.63
    100%46.77128234.1945.68394721366.00

    T-MOTOR

    G30*10.5”

    		40%47.6827200.944.62172522012.3592℃
    45%47.6332551.126.01188228611.37
    50%47.5039491.367.79206237010.68
    55%47.4048581.6710.5122784989.75
    60%47.2958512.0113.5724946429.12
    65%47.2567712.3216.9326778008.46
    70%47.1477982.6720.9328659877.90
    75%47.0787903.0125.04303811797.46
    80%47.0198153.3629.61319813927.05
    90%46.86117784.0439.55349318536.36
    100%46.65139404.7951.94377524235.75
    Note: Motor temperature is motor surface temperature at 100% throttle running 10mins.
    (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
