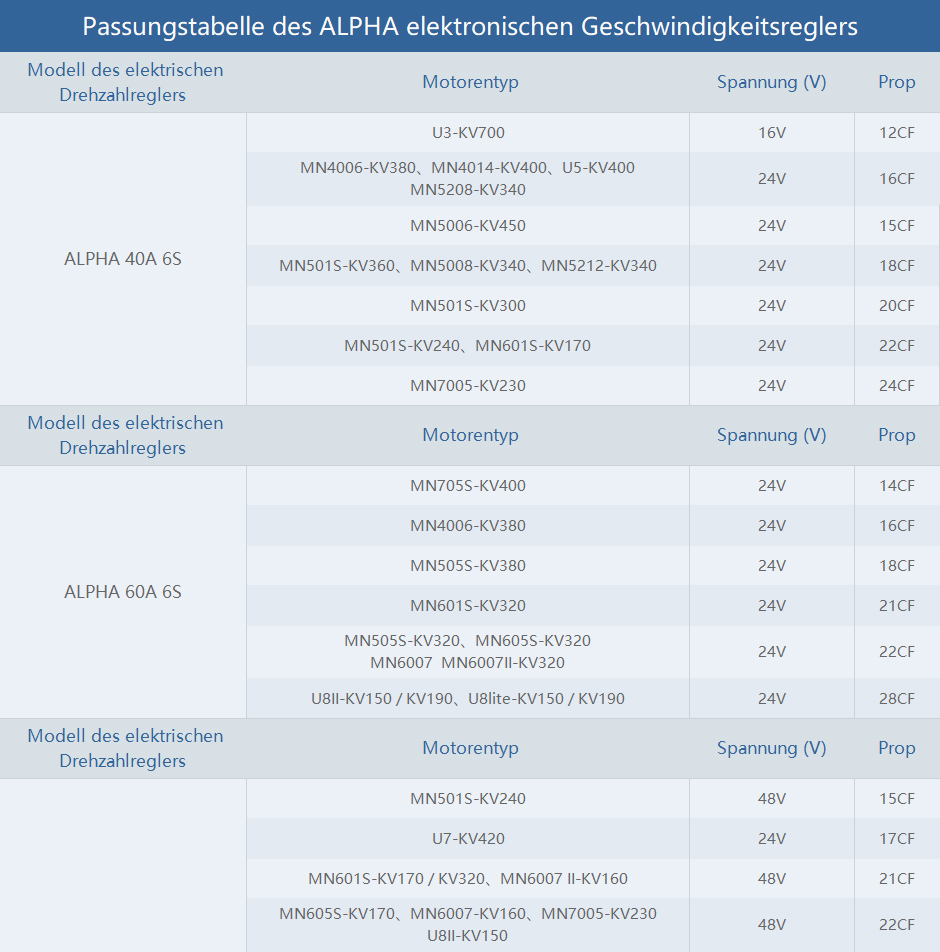

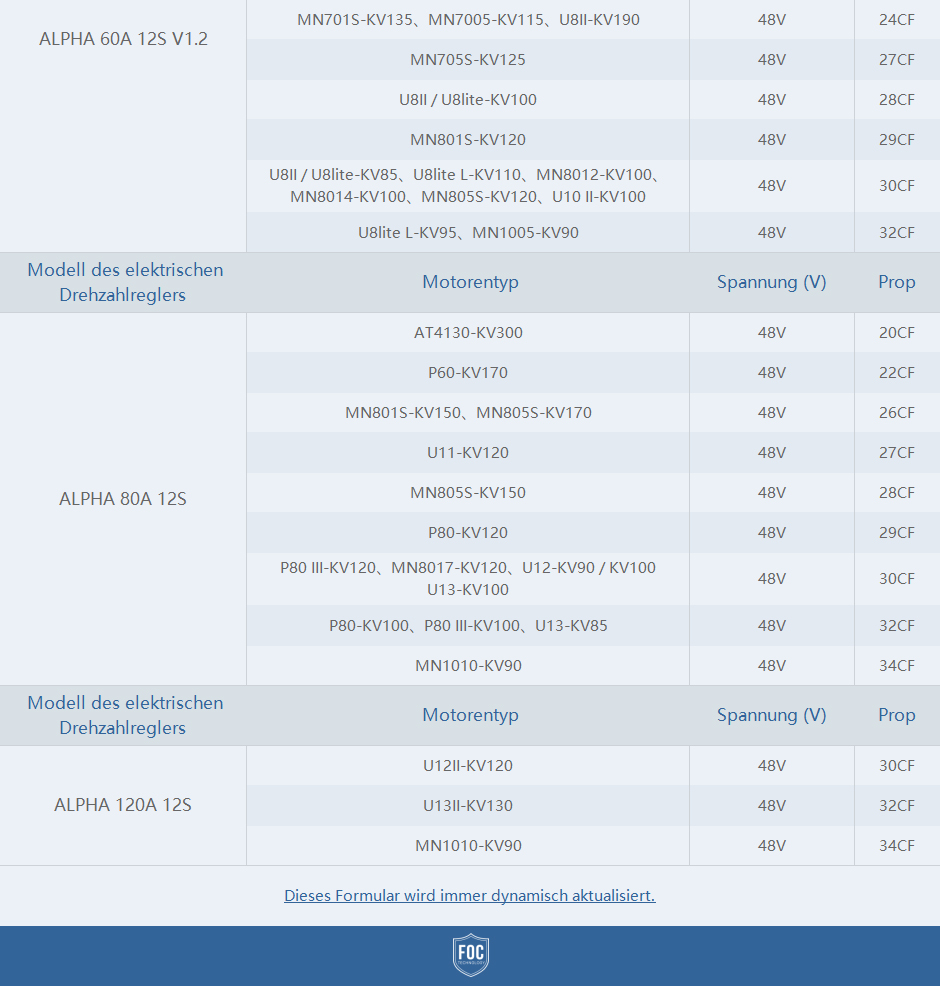

Passungstabelle des ALPHA elektronischen Geschwindigkeitsreg

Modell des elektrischen

Drehzahlreglers

Motorentyp

Name der PC-Version

Lipo (S)

Prop

ALPHA 40A 6S	U3-KV700	V2-U3-KV700	4S	12CF
	U5-KV400	V1-U5-KV400	6S	16CF
	MN4006-KV380	V1-MN4006-KV380	6S	16CF
	MN4004-KV300	V1-MN4004-KV300	6S	P15*5/MF1503
	MN4014-KV400	V1-MN4014-KV400	6S	16CF
	MN4014-KV330	V1-MN4014-KV330	6S	16CF
	MN501S-KV300	V1-MN501S-KV300	6S	20CF
	MN501S-KV360	V1-MN501S-KV360	6S	18CF
	MN501S-KV240	V2-MN501S-KV240	6S	22CF
	MN5006-KV300	V1-MN5006-KV300	6S	18CF
	MN5006-KV450	V1-MN5006-KV450	6S	15CF
	MN5008-KV400	V1-MN5008-KV400	6S	17CF
	MN5208-KV340	V1-MN5208-KV340	6S	16CF
	MN5008-KV340	V1-MN5008-KV340	6S	18CF
	MN5212-KV340	V1-MN5212-KV340	6S	18CF
	MN601S-KV170	V1-MN601S-KV170	6S	22CF
	MN6007II-KV160	V1-MN6007II-KV160-26CF	6S	26CF
	MN6007II-KV320	V4-MN6007II-KV320	6S	22CF
	MN7005-KV230	V1-MN7005-KV230	6S	24CF
ALPHA 60A 6S	U8II-KV150	V1-U8II/L-KV150	6S	26CF
	U8LITE-KV150	V1-U8LITE-KV150	6S	30CF
	U8II-KV190	V1-U8II/L-KV190	6S	26CF
	MN4006-KV380	V1-MN4006-KV380	6S	16CF
	MN505S-KV320	V1-MN505S-KV320	6S	22CF
	MN505S-KV380	V1-MN505S-KV380	6S	18CF
	MN601S-KV320	V1-MN601S-KV320	6S	22CF
	MN605S-KV320	V1-MN605S-KV320	6S	22CF
	MN6007-KV320	V1-MN6007-KV320	6S	22CF
	6007II-KV320	V1-6007II-KV320	6S	22CF
ALPHA 60A 12S	U7-KV420	V1-U7-KV420	6S	17CF
	U8II-KV85	V1-U8/II/L-KV85	12S	26CF
	U8II LITE-KV85	V1-U8II_LITE-KV85	12S	MF3016
	U8LITEL-KV95	V1-U8LL-KV95	12S	32CF
	U8II-KV100	V1-U8/II/L-KV100	12S	28CF
	U8II PRO-KV100	V1-U8IIP-KV100	12S	FA28.2*9.2
	U8L-II-KV100	V1-U8L-II-KV100	12S	30CF
	U8lite-KV100	V1-U8II-100LT	12S	30CF
	U8Lite-KV150	V4-U8LITE-KV150	12S	24CF
	U8II-KV150	V1-U8II-KV150	12S	22CF
	U8II-190_7	V1-U8II/L-190_7	6S	24CF
	U8LITEL-KV110	V1-U8LL-KV110	12S	30CF
	U10II-KV100	V1-U10II-KV100	12S	30CF
	MN501S-KV240	V1-MN501S-KV240	12S	15CF
	MN5008-KV340	V1-MN5008-KV340	6S	18CF
	MN601S-KV170	V1-MN601S-KV170	12S	22CF
	MN6007II-KV160	V5-MN6007II-KV160	12S	FA24.2*7.9
	MN605S-KV170	V1-MN605S-KV170	12S	22CF
	MN601S-320_7	V1-MN601S-320_7	6S	21CF
	MN7005-KV115	V1-MN7005-KV115	12S	24CF
	MN7005-KV230	V2-MN7005-KV230	12S	22CF
	MN701S-KV135	V1-MN701S-KV135	12S	24CF
	MN801S-KV120	V1-MN801S-KV120	12S	29CF
	MN805S-KV120	V1-MN805S-KV120	12S	30CF
	MN8012-KV100	V1-MN8012-KV100	12S	30CF
	MN8014-KV100	V1-MN8014-KV100	12S	30CF
	MN1005-KV90	V1-MN1005-KV90	12S	32CF
	6007II-KV160	V1-6007II-KV160	12S	21CF
	6007II-KV320	V3-6007II-KV320	6S	18CF
ALPHA 80A 12S	P60-KV170	V1-P60-KV170	14S	22CF
	P80-KV100	V1-P80-KV100	14S	32CF
	P80-KV120	V1-P80-KV120	14S	29CF
	P80III-KV120	V1-P80III-KV120	12S	30CF
	P80III-KV100	V1-P80III-KV100	12S	32CF
	MN801S-KV150	V1-MN801S-KV150	12S	26CF
	MN705S-KV125	V2-MN705S-KV125	12S	27CF
	MN805S-KV150	V1-MN805S-KV150	12S	28CF
	MN805S-KV170	V1-MN805S-KV170	12S	26CF
	MN8017-KV120	V1-MN8017-KV120	12S	30CF
	V605-KV210	V1-V605-KV210	12S	22CF
	AT4130-KV300	V1-AT4130-KV300	12S	20CF
	AT4130-KV230	V1-AT4130-KV230	12S	14*8
	AT5230-KV200	V1-AT5230-KV200	12S	18CF
	AT5230A-KV220	V1-AT5230-KV220	12S	APC17*12
ALPHA 120A 12S	U15II-KV80	V1-U15II-KV80	12S	40CF
	U12II-KV120	V2-U12II-KV120	12S	30CF
	U13II-KV130	V1-U13II-KV130	12S	32CF
	P80III-KV120	V2-P80III-KV120	12S	30CF
	AT5220-A-KV220	V1-AT5220A-KV220	12S	18*8
ALPHA 60A 24S	U12II-KV60	V1-U12II-KV60	24S	30CF
ALPHA 60A 24S	U13II-KV65	V1-U13II-KV65	24S	32CF
