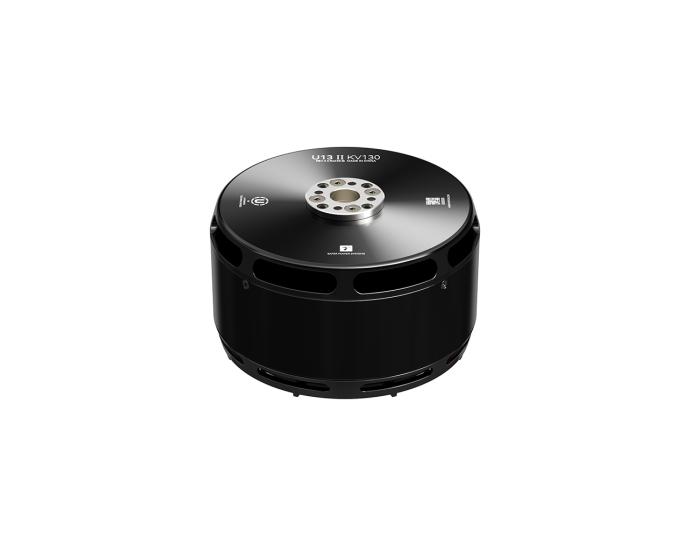

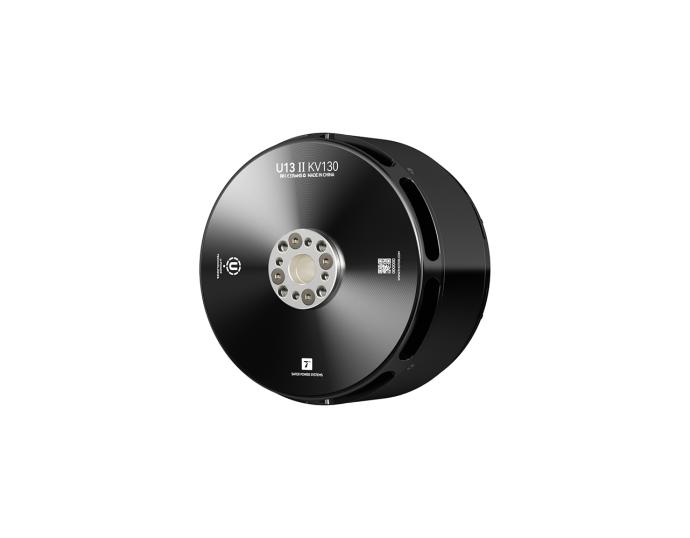

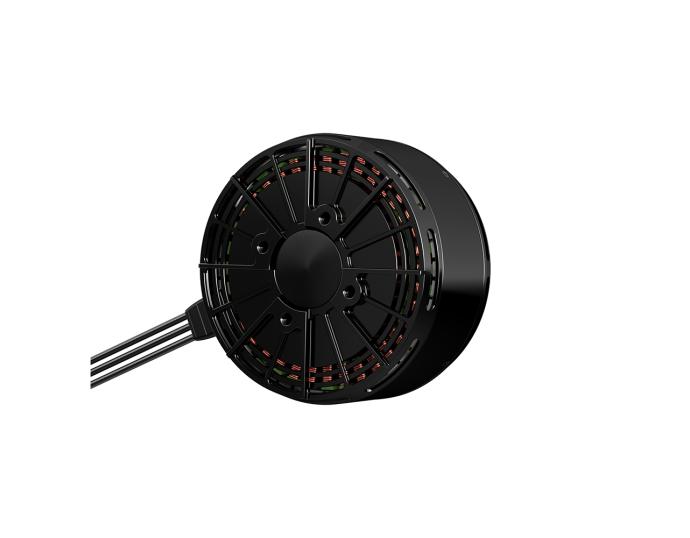

    U13Ⅱ Power Type Multirotor UAV Motor KV130

    379.90

    Available points: 18500 Points Points reward: 379 Points

    • Max Thrust:24KG
    • 1000h Service life
    • Heavy load and industrial appplication
    Parameter：
    Quantity：

    379.90

    USD200 Consumption Free Shipping by International Express (Excl. Remote Areas and Special Items).

    Relevant Products

    • Detail information
    • Specifications

    Hot Products

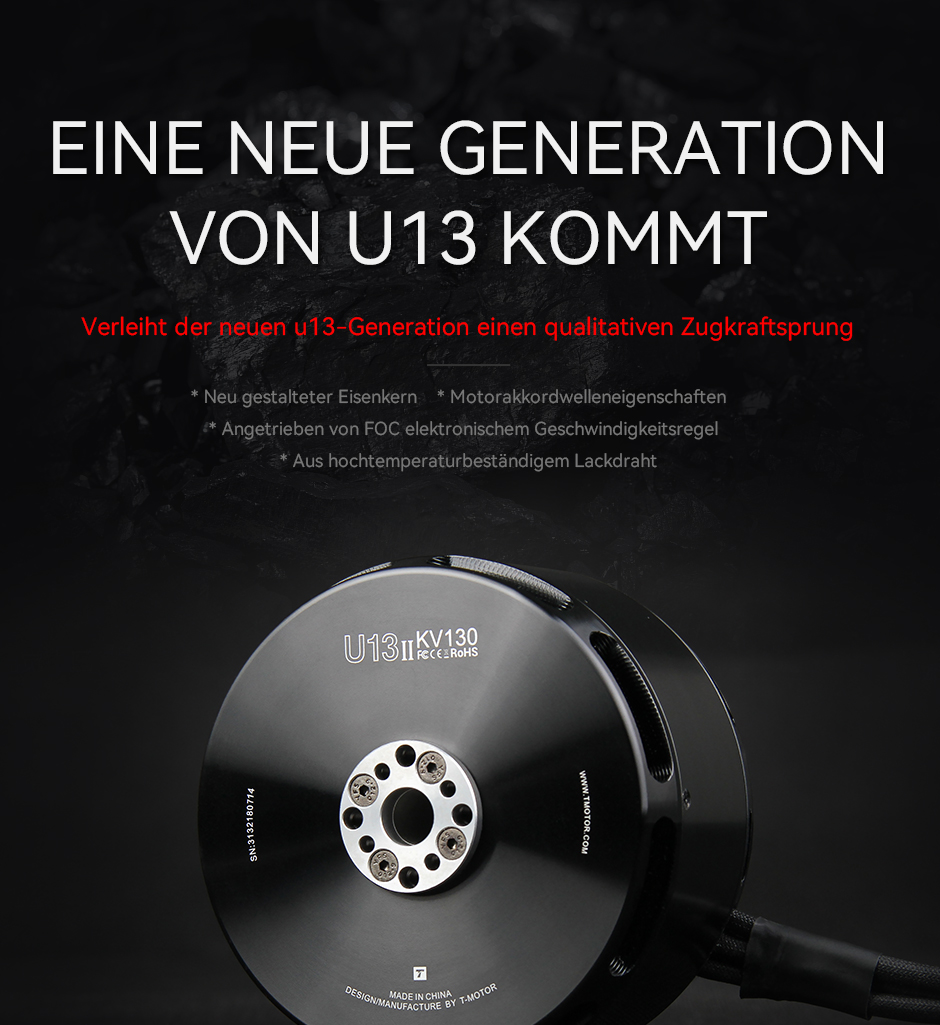

    About T-MOTOR U13Ⅱ Power Type Multirotor UAV Motor KV130

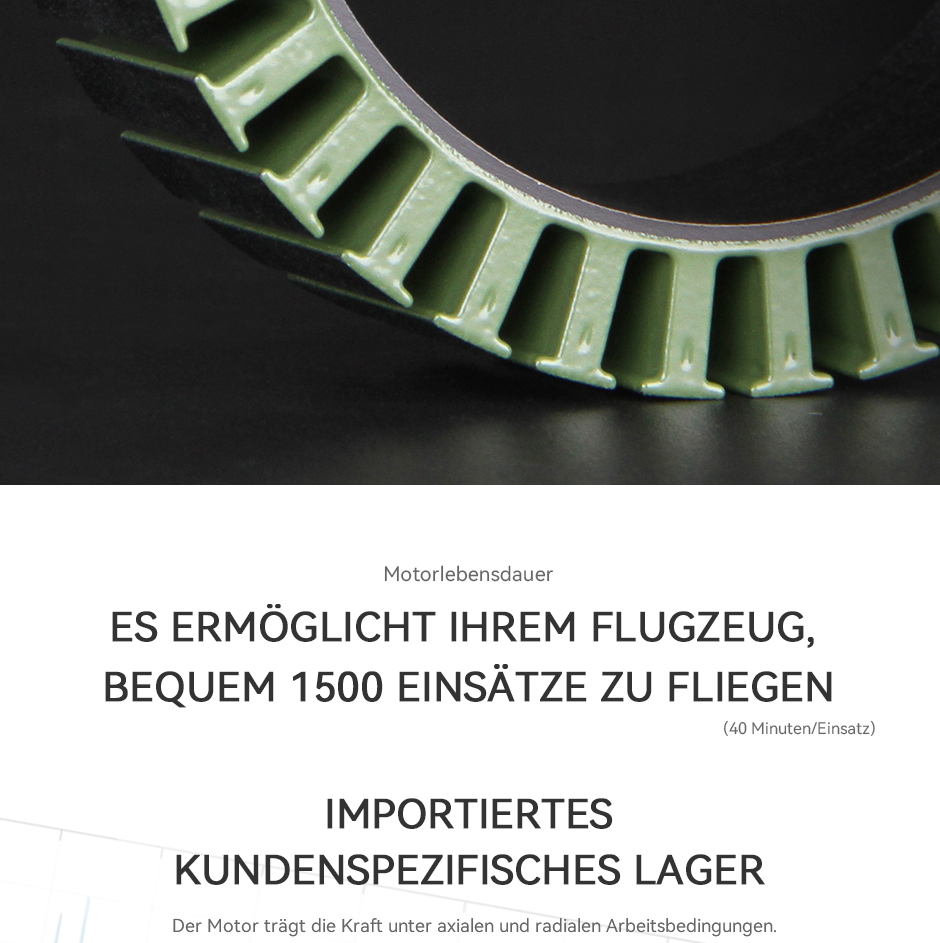

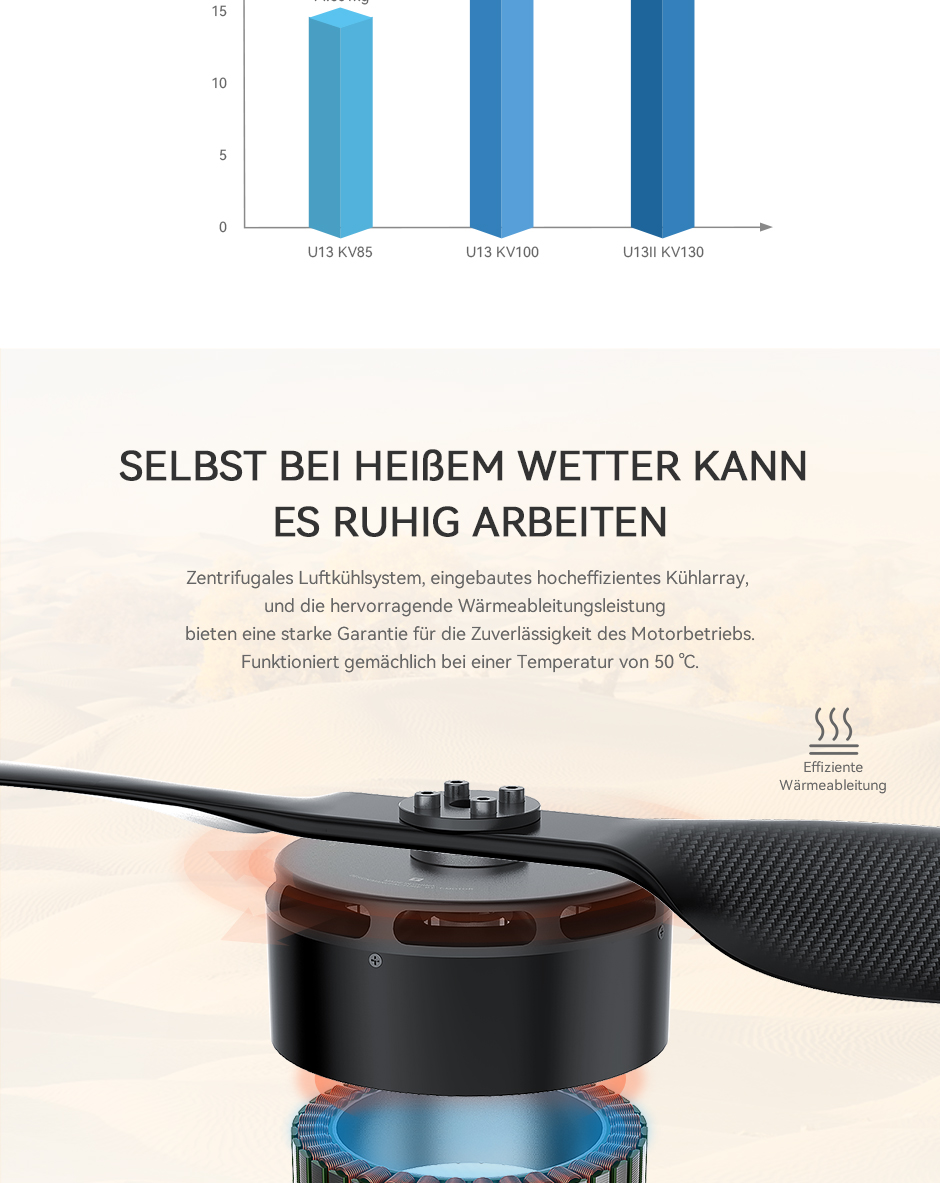

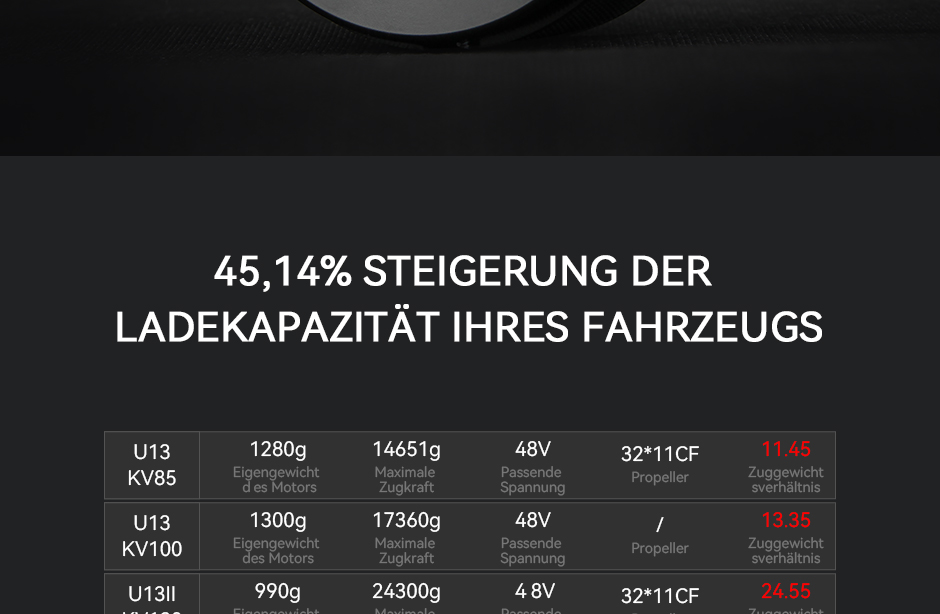

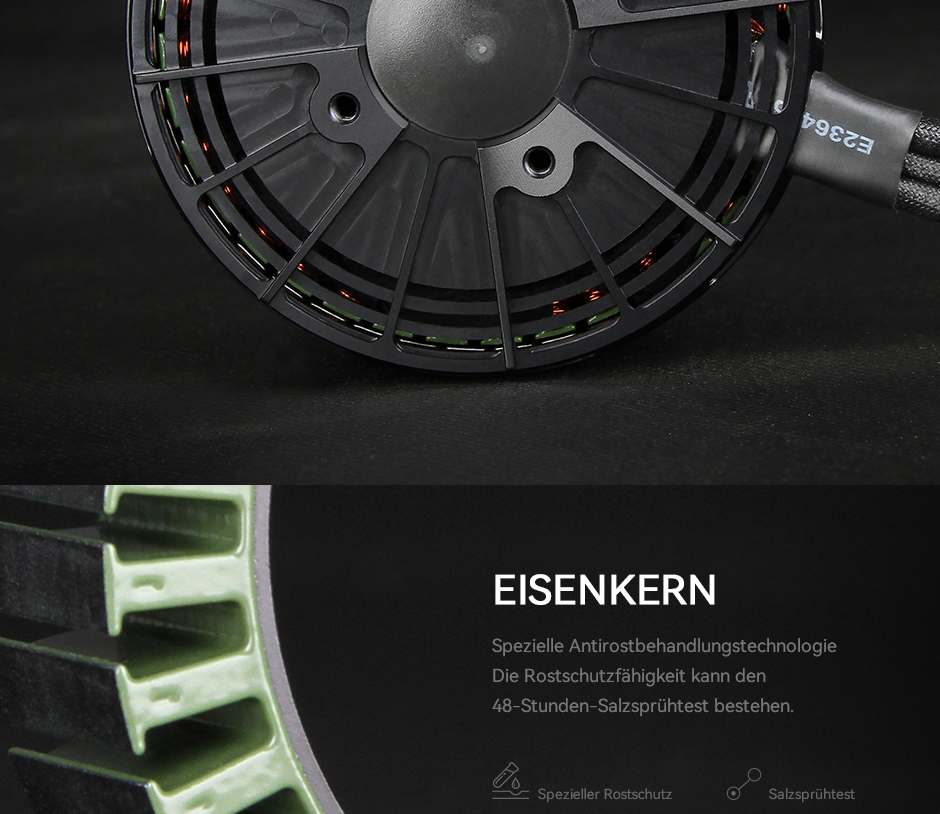

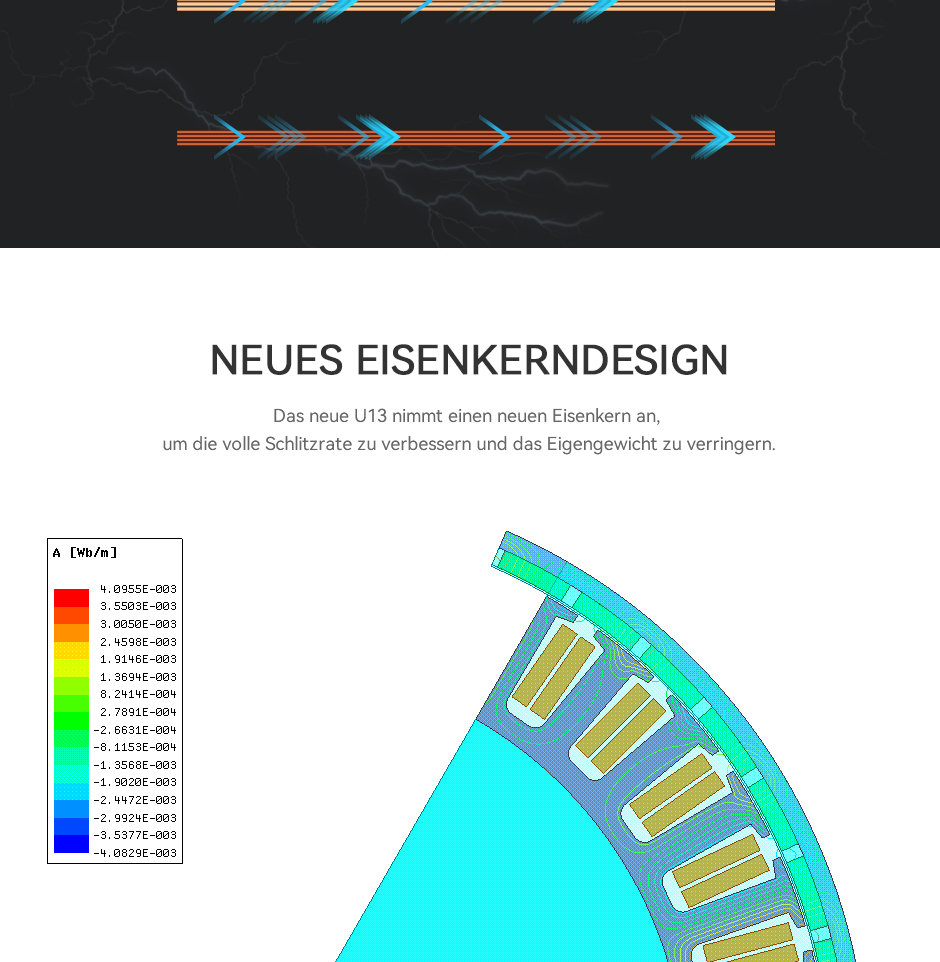

    T-Motor UAV Brushless Multirotor Motor U13II KV130 delivers up to 24.3 kg thrust and has a 1000-hour service life. Designed for heavy loads and industrial use, it performs well at high temperatures. The newly redesigned iron core increases coil space and reduces weight, boosting the aircraft's payload capacity.


    U13Ⅱ Highlights:


    1.Max. thrust ：28.7kg

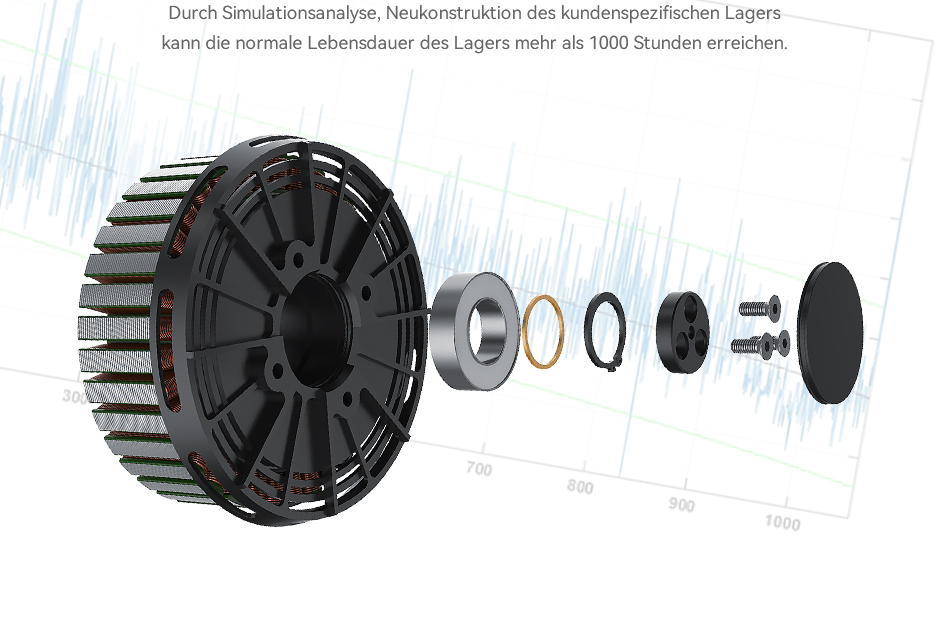

    2.MTBF：About 1000hours

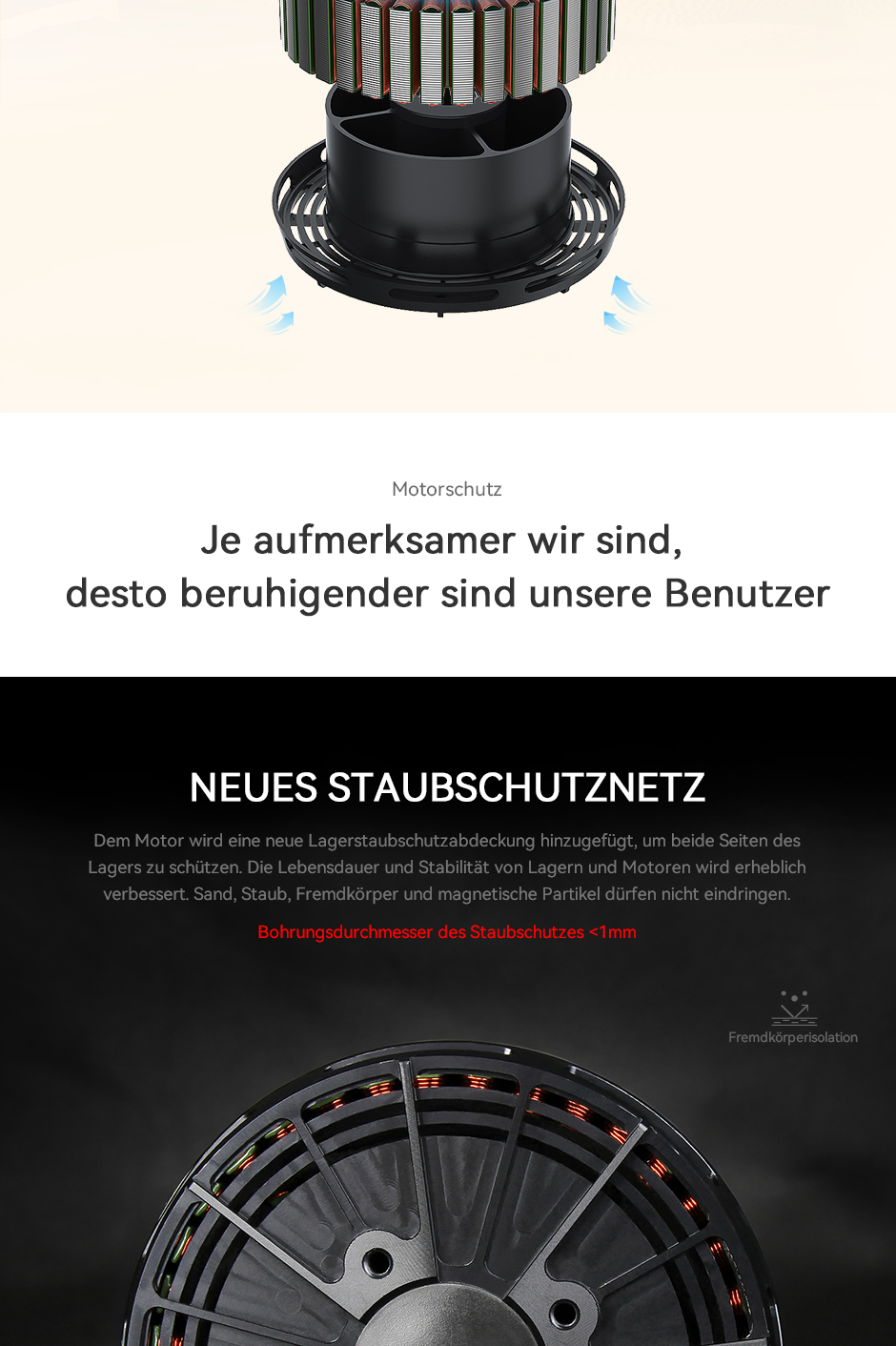

    3.Features：Industrial Grade, Waterproof, dustproof, low noise, large bearings

    4.Industrial grade, dust proof, water proof.


    Application Areas：


    Aerial photography, Filming, Delivery service and Agriculture applications.

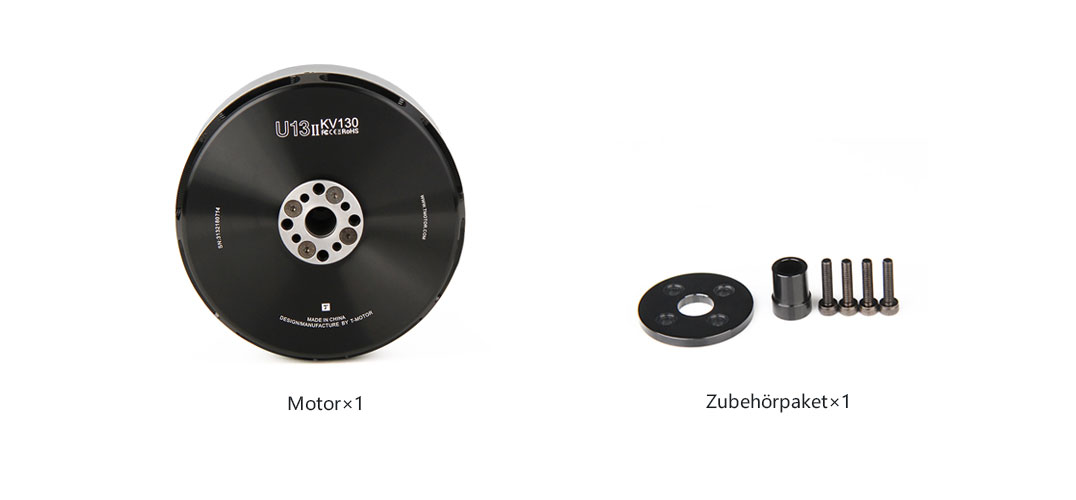

    Packing List Includes:


    1x T-MOTOR U13ⅡMotor KV130

    1x Hardware pack


    Matching Guide:


    T-MOTOR G32*11 prop


    If you have any questions or inquires, please contact us:  onlinesales@tmotor.com


    Technical Drawing


    Specification
    Test ItemKV130Weight (Incl. Cable)990g
    Motor DimensionsΦ100*60mmInternal Resistance18mΩ
    LeadEnameled Wire 100mmConfiguration36N42P
    Shaft Diameter15mmRated Voltage(Lipo)10-14S
    Idle Current(18V)1.5APeak Current(180s)118A
    Max. Power5659W
    Test ItemKV65Weight (Incl. Cable)975g
    Motor DimensionsΦ100*60mmInternal Resistance73mΩ
    LeadEnameled Wire 100mmConfiguration36N42P
    Shaft Diameter15mmRated Voltage(Lipo)22-25S
    Idle Current(18V)1.7APeak Current(180s)68A
    Max. Power6720W
    Test Data
    TypeVoltage
    (V)    		PropellerThrottleThrust
    (g)    		Torque
    (N*m)    		Current
    (A)    		RPMPower
    (W)    		Efficiency
    (g/W)    		Operating
    Temperature
    (℃)
    U13Ⅱ
    KV130    		48T-MOTOR
    G32*11“CF    		50%77003.120.4026129797.86132

    (Ambient
    Temperature:

    24℃)
    55%10000430.80300014786.76
    60%115004.738.40321518436.24
    65%135005.546.70342822426.02
    75%167006.965.40383231395.32
    85%197008.183.70416440184.9
    100%2430010117.90460956594.29
    Note: Motor temperature is motor surface temperature at 100% throttle running 5mins.
    (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)

    U13 II
    KV65

    		99.51G30*10.540%79753.310.8267910797.497℃
    99.4745%87843.712.5282312437.1
    99.4450%97594.114.4296414316.8
    99.3955%108964.416.3310616226.7
    99.3360%118794.718.5323518386.5
    99.2865%130785.021.3340621106.2
    99.2170%145005.624.4357124206.0
    99.1175%159716.228.3376928095.7
    99.0280%176757.033.1396432785.4
    98.7990%215228.544.1434243554.9
    98.54100%247449.754.7465453894.6
    99.44G32*1140%85853.511.7248511617.4115℃
    99.4045%96713.913.8263913747.0
    99.3650%107144.316.0277715896.7
    99.2955%118714.718.7292218546.4
    99.2360%131285.221.4305521256.2
    99.1565%147985.925.3323525125.9
    99.0670%164396.629.8341429555.6
    98.9375%183807.434.9359634505.3
    98.7880%208898.342.1380341565.0
    98.5390%249829.954.7412553924.6
    98.22100%2871111.468.5439767274.3
    Note: Motor temperature is motor surface temperature at 100% throttle running 10mins.
    (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
    Packing List


    Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@tmotor.com " in time.
