    FLAME 200A 14S Multi-Rotor UAVs ESC

    499.00

    Available points: 25000 Points Points reward: 499 Points

    • Support Data feedback
    • More stable with U15 II
    • High Power
    Quantity：

    499.00

    USD200 Consumption Free Shipping by International Express (Excl. Remote Areas and Special Items).

    Relevant Products

    • Detail information
    • Specifications

    Hot Products

    About T-MOTOR FLAME 200A 6-14S Multi-Rotor UAV FOC ESC



    T-MOTOR FLAME 200A 14S ESC is designed for high-performance multi-rotor UAVs, offering a continuous current of 200A and peak current up to 240A (10s). Compatible with U12 motors, it supports 6-14S LiPo batteries and ensures efficient heat dissipation with its layered structure. Key features include real-time data feedback and essential protections for start-up, overload, motor lock-up, and throttle signal loss. Perfect for demanding flight conditions, this ESC combines power, reliability, and safety for advanced UAV systems.


    FLAME 200A 6-14S ESC Hightlights:


    • 621Hz, 6-14S LiPo

    • High power

    • Support data feedback

    • Layered structure
      Efficient and reasonable heat dissipation

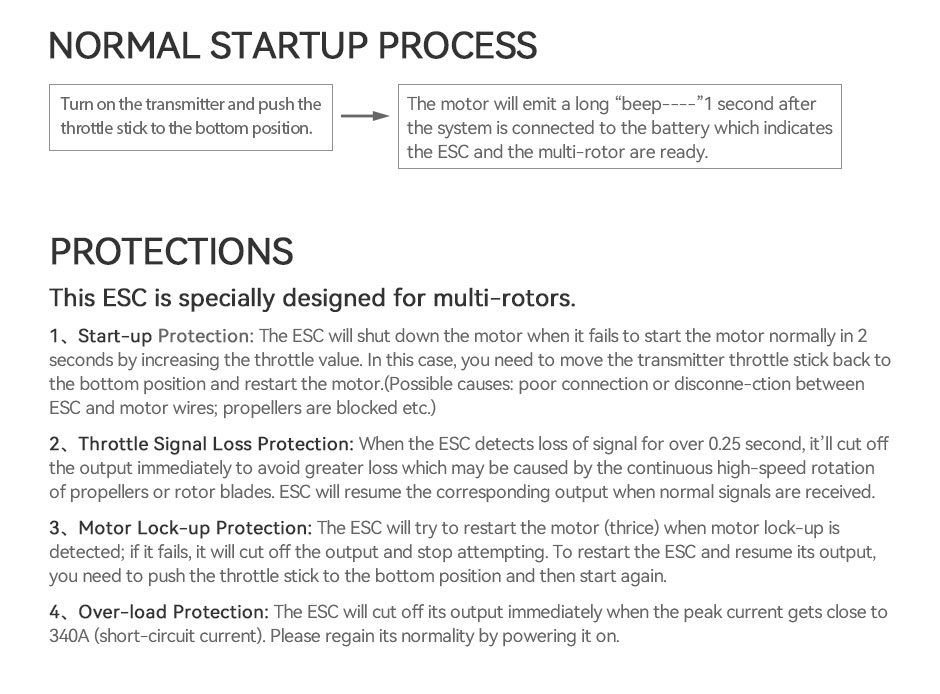

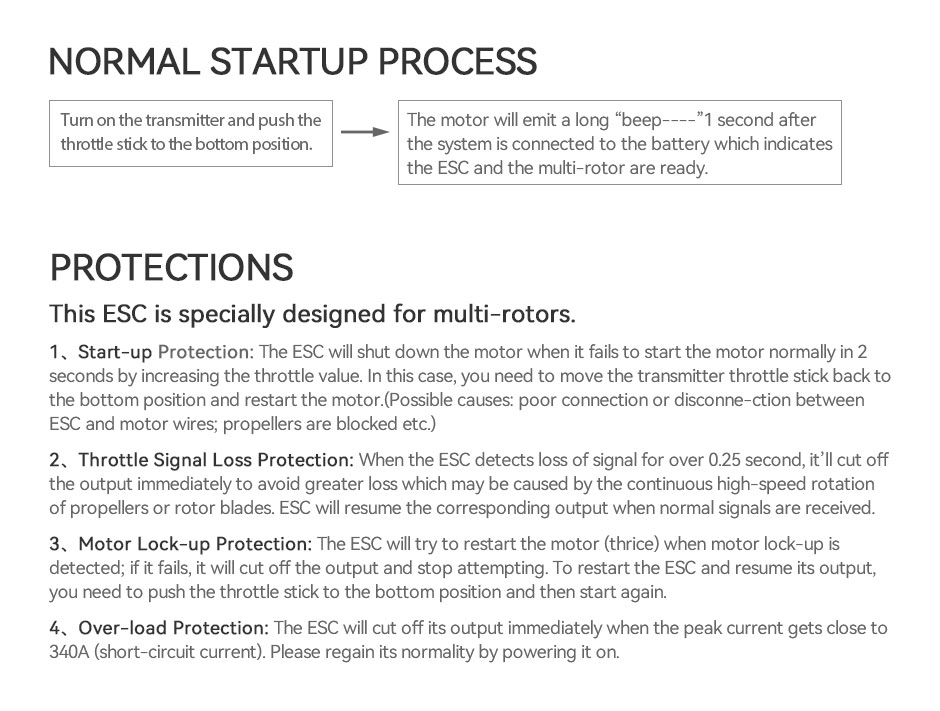

    • Start-up, Overload, Motor lock-up and Throttle signal loss protection


    Packing List Includes:


    1x T-Motor FLAME 200A 6-14S ESC

    1x Hardware Kit


    Matching Guide:


    U15 v2 KV80 Motor / U15 v2 KV100 Motor / G40*13.1 Prop



    Technical Drawing
