MN1010 Navigator Type UAV Multi-Motor KV135

339.90

Available points: 16000 Points Points reward: 339 Points

• Efficient Disc Motor

• Heavy Payload Long Flight Time
• Excellance in Heat Dissipation

Parameter：

MN1010 KV135
MN1010 KV90

Quantity：

339.90

USD200 Consumption Free Shipping by International Express (Excl. Remote Areas and Special Items).

Relevant Products

G30*10.5 Prop-2PCS/PAIR

$335.9 Buy Now
G32*11 Prop-2PCS/PAIR

$357.9 Buy Now

Detail information
Specifications

Hot Products

"Navigator" motors are for general uses like aerial photography.
For demand of multi-rotors, VTOL and fixed wings.

1. Max. thrust ：21.5kg
2. Recommendation: T-MOTOR G32*11" prop
3. MTBF：About 1000hours
4. Features：Excellent cooling performance; Dust-resistance/Waterproof/Anti-corrosion; Heavy Payload Long Flight Time

If you have any questions or inquires, please contact us: onlinesales@tmotor.com

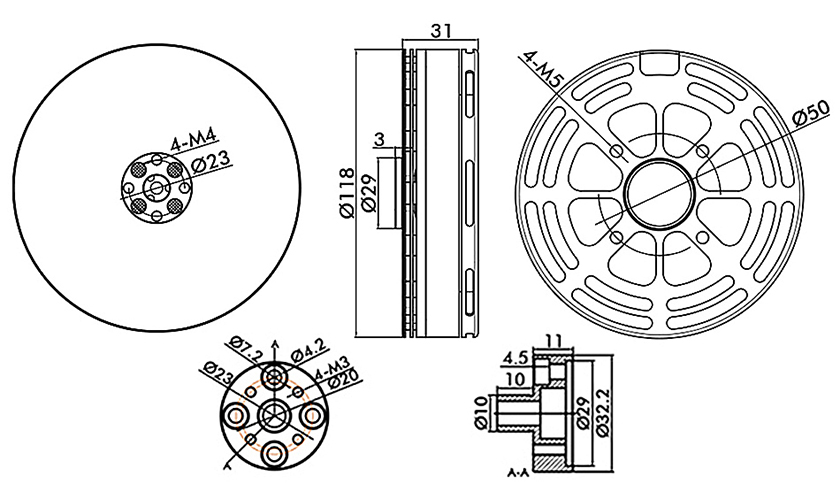

Technical Drawing

Specification

Motor Size	Φ118*34mm	Copper Wire	220℃ high temperature resistance: Level C
Stator	Imported silicon steel sheet; Anti-rust treatment; 150°Chigh temperature-resisting coatings	Coil Insulation Test	1000V
Configuration	36N42P	Centrifugal Cooling Design	YES
Shaft Diameter	IN：15mm	Rotor Dynamic Balance Standard	≤5Mg
Bearing	Imported 6902ZZ	Motor Dynamic Balance Standard	≤10Mg
Magnet Level	N45SH

KV	90	Rated Voltage ( Lipo )	6-12S
Idle Current（10V）	1.3A	Propeller Recommendation	32-34寸
Peak Current（180s）	56A	Motor Weight (indl. Cable)	630g
Max.Power（180s）	2739W	Package Weight	1010g
Internal Resistance	46mΩ

KV	135	Rated Voltage ( Lipo )	6-12S
Idle Current（10V）	2A	Propeller Recommendation	30-32寸
Peak Current（180s）	104A	Motor Weight (indl. Cable)	645g
Max.Power（180s）	4930W	Package Weight	1028g
Internal Resistance	25mΩ

Test Data

Type	Propeller	Throttle	Voltage (V)	Thrust (g)	Torque (N*m)	Current (A)	RPM	Power (W)	Effciency (g / W)	Operating Temperature (℃)
MN1010- KV90	G32*11	40%	44.05	1864	0.72	3.10	1368	137	13.66	58℃
		45%	44.01	2381	0.90	4.13	1518	182	13.11
		50%	43.97	2874	1.07	5.21	1658	229	12.55
		55%	43.90	3354	1.24	6.40	1786	281	11.94
		60%	43.82	3957	1.46	8.25	1936	361	10.95
		65%	43.77	4658	1.72	10.14	2089	444	10.49
		70%	43.67	5405	1.99	12.60	2245	550	9.82
		75%	43.59	6208	2.27	15.15	2393	661	9.40
		80%	43.51	6930	2.56	17.99	2528	783	8.85
		90%	43.33	8628	3.16	24.61	2797	1066	8.09
		100%	43.14	10313	3.77	32.62	3091	1407	7.33
	G34*11.5	40%	44.00	2310	0.92	3.70	1345	163	14.18	75℃
		45%	43.94	2893	1.15	4.97	1493	218	13.26
		50%	43.86	3465	1.36	6.45	1627	283	12.26
		55%	43.80	4033	1.58	7.86	1749	344	11.72
		60%	43.63	4766	1.85	10.05	1894	438	10.87
		65%	43.52	5564	2.14	12.36	2031	538	10.34
		70%	43.43	6468	2.50	15.41	2187	669	9.66
		75%	43.36	7324	2.83	18.42	2326	798	9.17
		80%	43.28	8251	3.18	22.02	2460	953	8.66
		90%	43.05	9970	3.84	29.52	2716	1271	7.85
		100%	42.77	12061	4.63	39.71	2990	1698	7.10
MN1010- KV90	G32*11	40%	49.79	2574	0.97	4.23	1557	210	12.25	77℃
		45%	49.74	3245	1.20	5.47	1746	272	11.93
		50%	49.71	3925	1.45	7.25	1920	360	10.90
		55%	49.69	4725	1.74	9.28	2094	461	10.25
		60%	49.61	5420	2.00	11.25	2244	558	9.71
		65%	49.58	6192	2.27	13.61	2397	675	9.17
		70%	49.53	7010	2.57	16.38	2548	811	8.64
		75%	49.46	7938	2.92	19.64	2704	971	8.17
		80%	49.40	9039	3.29	23.46	2870	1159	7.80
		90%	49.24	11154	4.05	32.24	3180	1588	7.03
		100%	49.07	13541	4.90	42.76	3469	2098	6.45
	G34*11.5	40%	49.75	3228	1.27	5.22	1535	260	12.44	97℃
		45%	49.71	4074	1.59	7.02	1719	349	11.69
		50%	49.64	4889	1.91	9.30	1887	462	10.59
		55%	49.60	5824	2.27	11.95	2047	593	9.83
		60%	49.56	6707	2.61	14.35	2190	711	9.43
		65%	49.53	7631	2.97	17.30	2328	857	8.91
		70%	49.44	8645	3.36	21.07	2469	1042	8.30
		75%	49.34	9800	3.79	25.23	2617	1245	7.87
		80%	49.28	11026	4.28	30.18	2766	1487	7.41
		90%	49.06	13783	5.34	42.29	3059	2075	6.64
		100%	48.83	16341	6.38	56.08	3316	2738	5.97
MN1010- KV135	G32*11	40%	43.79	3708	1.40	8.27	1893	362	10.24	HOT
		45%	43.66	4744	1.76	11.34	2114	495	9.58
		50%	43.55	5986	2.19	15.39	2346	670	8.93
		55%	43.42	7207	2.64	20.10	2568	873	8.26
		60%	43.30	8433	3.08	25.20	2763	1091	7.73
		65%	43.15	9608	3.51	30.73	2953	1326	7.24
		70%	43.00	10738	3.92	36.57	3126	1573	6.83
		75%	42.84	12023	4.39	43.58	3315	1867	6.44
		80%	42.64	13308	4.86	51.29	3490	2187	6.08
		90%	42.03	15897	5.81	69.29	3806	2912	5.46
		100%	41.86	17155	6.29	78.42	3943	3283	5.23
MN1010- KV135	G30*10.5	40%	49.24	3948	1.41	8.52	2174	420	9.41	120℃
		45%	49.18	5101	1.81	11.96	2461	588	8.67
		50%	49.10	6307	2.25	16.17	2732	794	7.95
		55%	49.02	7523	2.68	20.72	2978	1016	7.41
		60%	48.93	8702	3.10	25.83	3197	1264	6.89
		65%	48.83	9906	3.52	31.30	3412	1528	6.48
		70%	48.71	11320	4.03	38.16	3626	1859	6.09
		75%	48.59	12616	4.47	44.84	3819	2179	5.79
		80%	48.45	14126	5.02	53.52	4034	2593	5.45
		90%	48.09	17193	6.13	73.82	4422	3549	4.84
		100%	47.88	18739	6.67	84.83	4587	4062	4.61
	G32*11	40%	49.20	4943	1.82	10.57	2131	520	9.50	HOT
		45%	49.13	6341	2.31	14.70	2403	722	8.78
		50%	49.02	7790	2.83	19.80	2661	971	8.03
		55%	48.92	9233	3.35	25.42	2896	1243	7.43
		60%	48.82	10611	3.85	31.43	3107	1534	6.92
		65%	48.71	12084	4.38	38.25	3310	1863	6.49
		70%	48.56	13711	4.94	46.51	3506	2259	6.07
		75%	48.40	15359	5.56	56.22	3702	2721	5.65
		80%	48.22	16992	6.14	65.75	3883	3170	5.36
		90%	47.79	20218	7.36	90.39	4238	4320	4.68
		100%	47.56	21561	7.85	103.67	4372	4930	4.37
Note: Motor temperature is motor surface temperature at 100% throttle running 5mins. (Date above based on benchtest are for reference only,comparion with that of other motor types is not recommended.)
