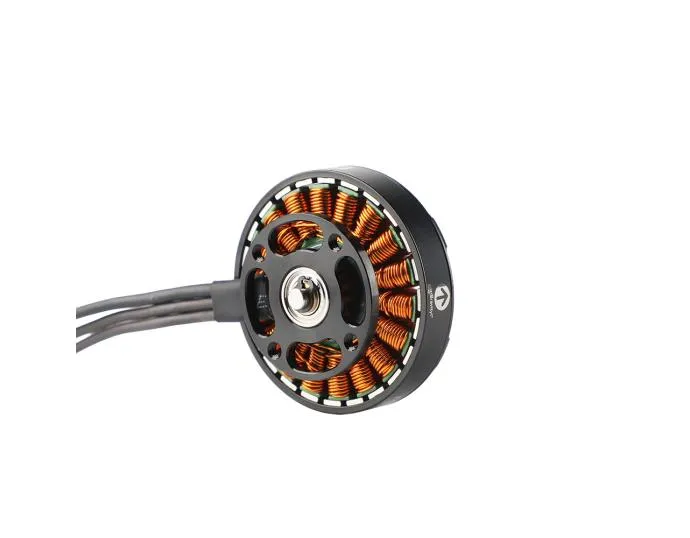

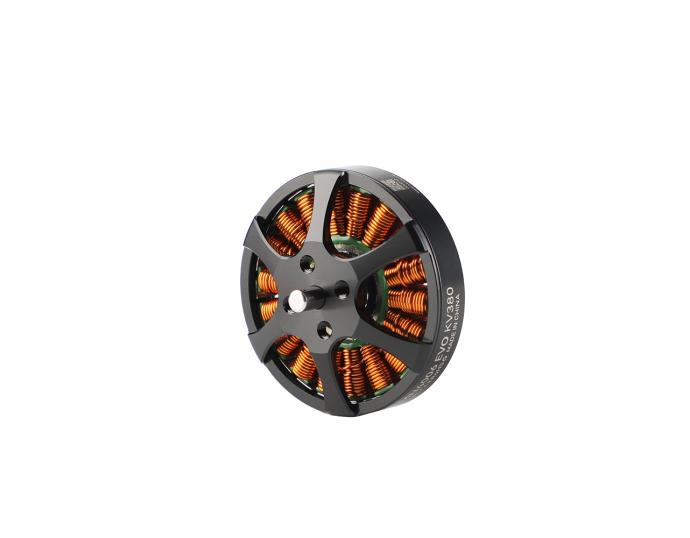

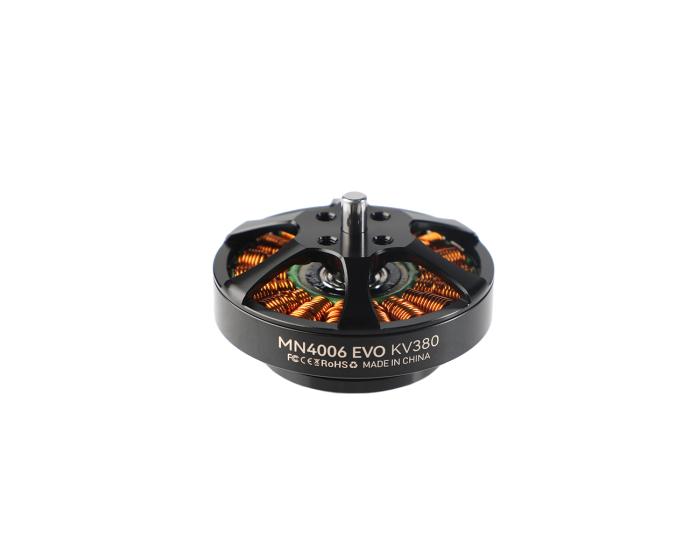

    MN4006 EVO Antigravity Type UAV Motor KV380 2PCS/SET

    159.90

    Available points: 0 Points Points reward: 159 Points

    • Promotion
      • For every $300 off $30
    • Higher force efficiency, higher force under the same pulling force 0.3g/W
    • Greater pulling force, increased maximum pulling force 8%
    • Under load, the maximum temperature on the motor surface decreases 11%
    KV：
    • KV380
    Quantity：

    159.90

    USD140 Consumption Free Shipping by International Express (Excl. Remote Areas and Special Items).

    Relevant Products

    • Detail information
    • Specifications

    Hot Products

    About T-MOTOR MN4006 EVO Multirotor UAV Motor KV380


    T-MOTOR Antigravity MN4006 EVO 380KV is engineered to elevate your UAV performance with its superior build quality, innovative design, and cutting-edge technology. With a higher efficiency EZO bearing, this motor is built to last, offering exceptional durability and a flight time of 60-80 hours, as confirmed by official testing.Up to 1.6kg thrust


    Antigravity MN4006 EVO Highlights:


    1.Unique Ventilation and Cooling System

    2.Ultrathin Design Lightest Weight

    3.MN4006 EVO THENEWUPGRADE Higher force efficiency greater pulling force

    4.Higher force efficiency higher force under the same pulling force

    5.11% under load the maximum temperatureon the motor surface decreases

    6.Up to 1.6kg thrust


    Application Areas：


    Multi-rotors, VTOL


    Packing List Includes:


    2 x T-MOTOR MN4006 EVO Motor KV380( kv which you choose)

    2 x Hardware pack


    Matching Guide:


    T-MOTOR T16*5.4 Prop / AIR 40A 2-6S MultiRotor UAV Drone ESC


    If you have any questions or inquires, please contact us:  onlinesales@tmotor.com

    MN4006_EVO

    THENEW
    UPGRADE

    Higher force efficiency greater pulling force

    MN4006_EVO
    0.3g/WHigher force efficiency

    higher force under the same pulling force

    8%Greater pulling force

    increased maximum pulling force

    MN4006_EVO
    11%Under load

    the maximum temperature
    on the motor surface decreases

    Technical Drawing


    Specification
    Motor SizeΦ44.1*29.3mmMagnet Level150℃ high temperature resistance
    StatorAnti-rust treatment;
    180℃ high temperature-resisting coatings    		LeadEnameled Wire 50mm
    Configuration18N24PCopper Wire240℃ high temperature resistance
    Shaft DiameterIN：4mm，OUT：4mmCoil Insulation Test500V
    BearingImported 694ZZPackage Size113*89*40mm
    KV380Rated Voltage (LiPo)6S
    Idle Current(10V)0.7AInternal Resistance159mΩ
    Peak Current(180s)18AWeight (Incl. Cable)73g
    Max. Power(180s)300WPackage Weight235g
    Test Data
    TypePropellerThrottleVoltage
    (V)    		Thrust
    (g)    		Torque
    (N*m)    		Current
    (A)    		RPMPower
    (W)    		Efficiency
    (g/W)

    Operating

    Temperature

    (℃)
    MN4006
    EVO    		P1540%24.004650.091.5830193812.24/
    45%23.995860.112.1533585211.36
    50%23.987170.132.8136896710.64
    55%23.968580.163.5640098510.05
    60%23.9410090.184.4743261079.43
    65%23.9211570.215.4046111298.95
    70%23.9013040.246.4048831538.52
    75%23.8814640.277.5851581818.09
    80%23.8516300.308.8854312127.69
    90%23.8019680.3611.7859452807.02
    100%23.7422730.4114.7463703506.49
    P1640%24.005470.111.8729004512.17/
    45%23.986980.142.6232426311.15
    50%23.968460.173.4135618210.36
    55%23.9410040.204.3238581039.70
    60%23.9211720.235.3941461299.09
    65%23.9013470.266.5844241578.58
    70%23.8815070.297.7446581858.16
    75%23.8516850.329.1849142197.69
    80%23.8218670.3610.7351552567.30
    90%23.7522310.4314.2356093386.60
    100%23.6825430.4917.6659644186.08
    Note: Motor temperature is motor surface temperature at 100% throttle running 3mins.
    (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
    Packing List


    Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@tmotor.com " in time.
