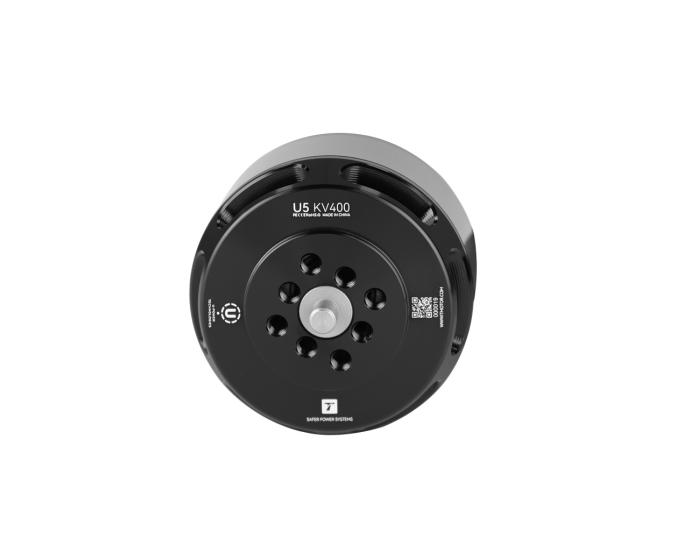

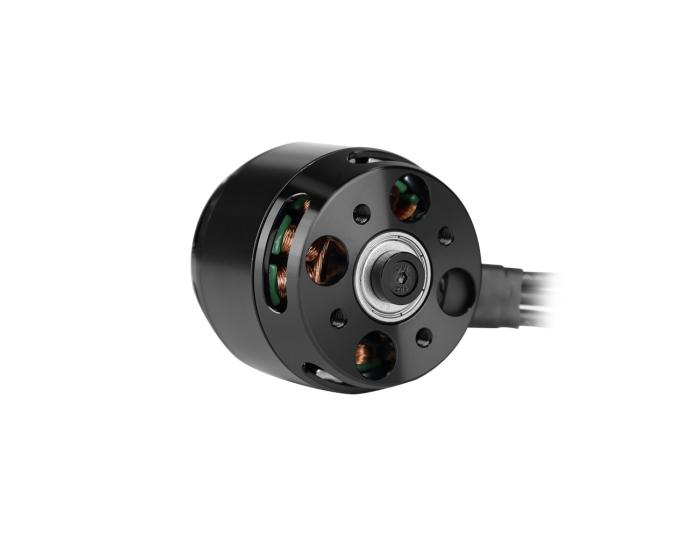

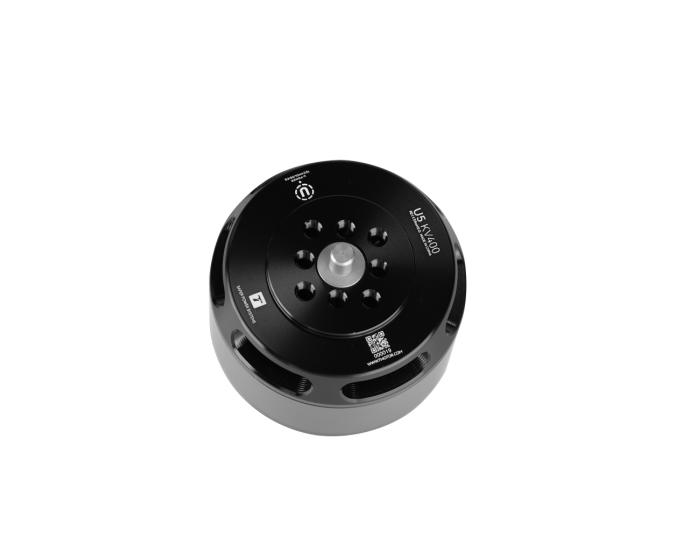

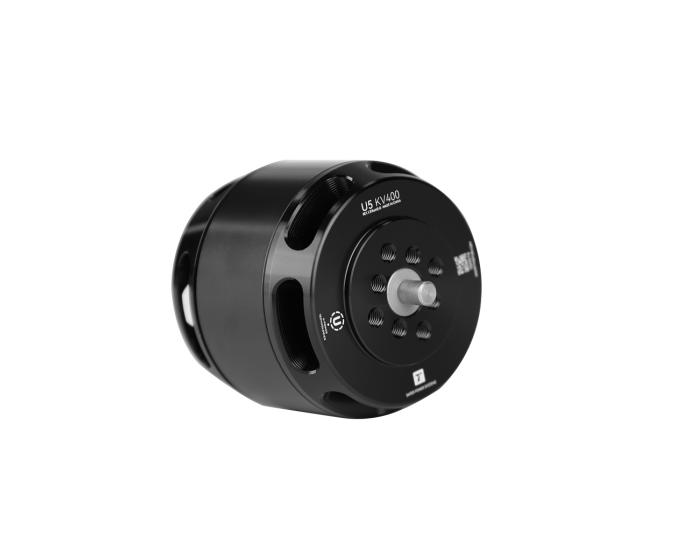

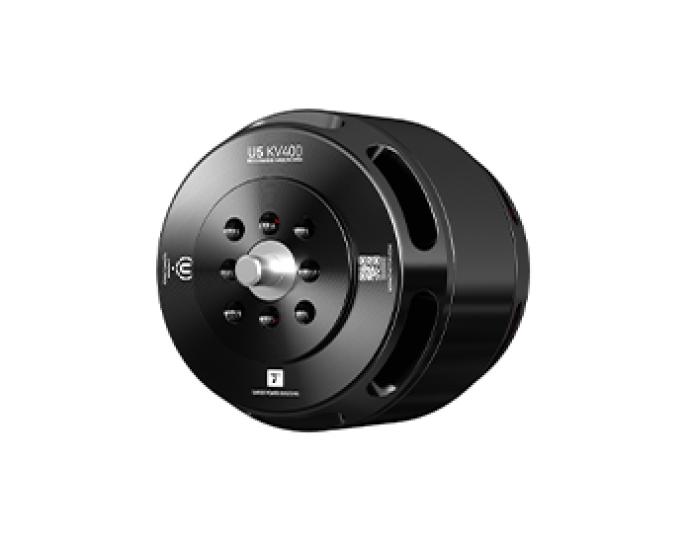

    U5 Power U-Type High Efficiency UAV Motor KV400

    125.90

    Available points: 6000 Points Points reward: 125 Points

    • Water-resistant & Dust-resistant
    • Precision Bearing
    KV：
    • KV400
    Quantity：

    125.90

    USD200 Consumption Free Shipping by International Express (Excl. Remote Areas and Special Items).

    Relevant Products

    • Detail information
    • Specifications

    Hot Products

    About T-MOTOR U5 Power Type UAV Motor KV400


    T-Motor U5 v2 Power series 400kv Brushless Motor - Recommended 6s and 14-16 inch props and Flame 60A ESC Water and dust resistant, designed for maximum reliability and long life. U-series motors are tested to military standards and offer smooth, quiet running with high efficiency.


    The  U5  comes with a special design to ensure swift airflow. Motor cools 2.5 times faster than others. Six holes beveling upward sparkles motor with waterproof and sand-resistant features.Offers high-quality varnished wire. An imported Oxygen-free copper coil that can tolerate a temperature of 180 °C is employed to enhance short circuit resistance.


    U5 Hightlights:


    • Unique Side Hole Design： ensures swift airflow. Motor cools 2.5 times faster than others. Six holes beveling upward sparkles motor with waterproof and sand-resistant features.

    • Abnormal Shaft： a special screw is used for stator and rotor installation, avoiding loosiness of circlip.

    • High-Quality Varnished Wired：imported, oxygen-free copper coil which can tolerate temperature of 180C is employed to enhance short circuit resistance.

    • High-Standard Silicon Steel Sheet Precision Winding：the precision winding ensures the tightness of coil and slot. It helps reduce the copper lose while improving the utilization. Advanced 0.2mm silicon steel sheet reduces heat and eddy, thus improving efficiency.

    • Larger Bearing – Lower Noise：Adoption of imported German bearing prolongs the service life to over 1600 hours under trouble-free operation. German bearing enables motor run more smoothly and longer with lower noise.


    1.Max. thrust ：2.85kg

    2.MTBF：About 1600hours

    3.Features：Industrial Grade, Waterproof, dustproof, low noise, large bearings

    4.Industrial grade, dust proof, water proof.


    Application Areas：


    Aerial photography, Filming, Delivery service and Agriculture applications.


    Packing List Includes:


    1x T-MOTOR U5 Motor

    1x Hardware pack


    Matching Guide:


    T-MOTOR CF15*5 Propeller  / CF16*5.4 Propeller / Flame 60A ESC


    If you have any questions or inquires, please contact us:  onlinesales@tmotor.com




    Technical Drawing


    Specification
    InternalResistance116mQConfguration12N14P
    Shaft Diameter5mmMotor DimensionsΦ42.5×37.5mm
    AWG16#Cable Length600mm
    WeightIncluding Cables195gWeight Excluding Cables156g
    No.ofCells(Lipo)3-8Sldle Current@10v0.3A
    Max Continuous Power180S850WMax Continuous Current180S30A
    Test Data
    Item No

    Voltage
    (V)

    		PropThrottle

    Current
    (A)

    Power
    (W)

    Thrust
    (G)

    		RPM

    Eficiency

    (G/W)

    Operating
    Temperature

    (°C)

    U5

    KV400

    		22.2

    T-MOTOR
    14*4.8CF

    		50%3.475.48800430010.645
    65%6.3139.86120054008.58
    75%8.5188.7150059007.95
    85%11.4253.08182065007.19
    100%13.7304.14203069506.67

    T-MOTOR
    15*5CF

    		50%4.395.46990420010.3750
    65%7.9175.38149052008.5
    75%11.6257.52190057007.38
    85%14.5321.9222062006.9
    100%17.2381.84248065006.49

    T-MOTOR
    16*5.4CF

    		50%5.2115.441200405010.459
    65%9.4208.68175048508.39
    75%13288.6212054007.35
    85%16.9375.18265058507.06
    100%20444285062506.42
    Notes:The test condition of temperature is motor surfacetemperature at 100%throttle while the motor run 10min.
