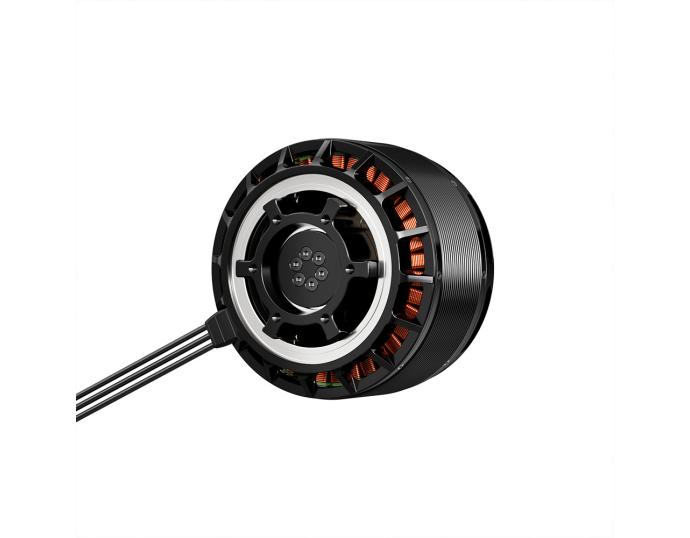

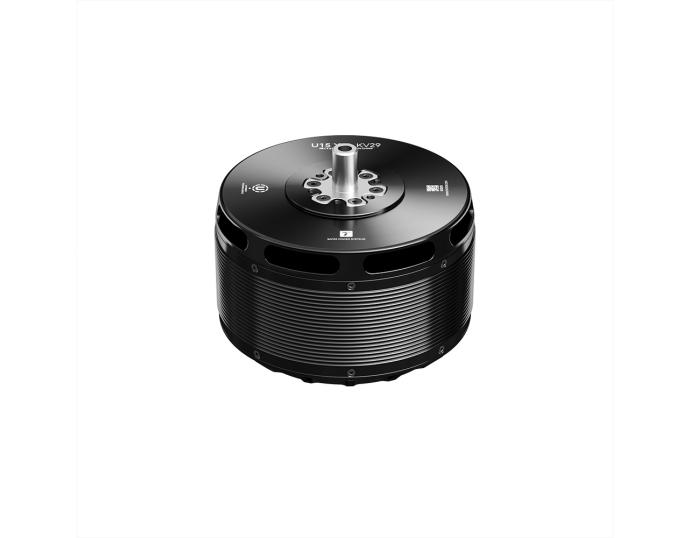

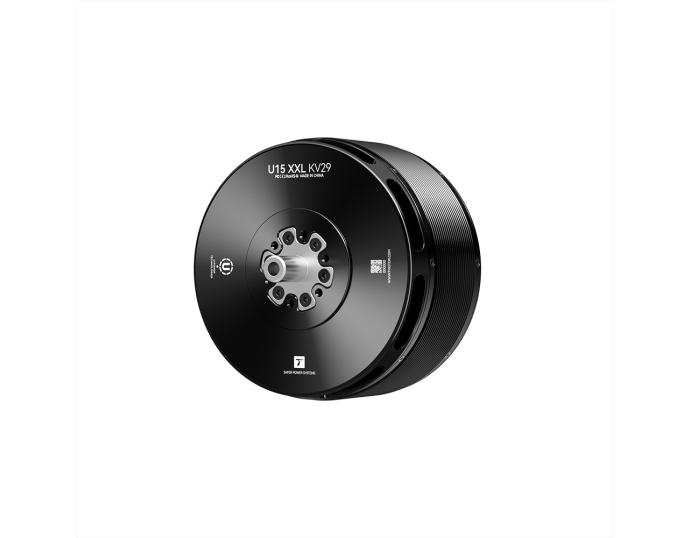

    U15XXL Manned Aircraft Type UAV Motor 12-24S 29KV

    1999.00

    Available points: 100000 Points Points reward: 1999 Points

    • Big Power
    • Matched Propulsion solution
    • Stable & Reliable & Safe
    Parameter：
    Quantity：

    1999.00

    USD200 Consumption Free Shipping by International Express (Excl. Remote Areas and Special Items).

    Relevant Products

    • Detail information
    • Specifications

    Hot Products

    Technical Drawing


    Specification Export to Excel
    Motor ItemU15XXL KV29Weight (Incl. Cable)5130g
    Motor DimensionsΦ151.5*106mmInternal Resistance20mΩ
    LeadEnameled Wire200mmConfiguration36N42P
    Shaft Diameter25mmRated Voltage(LiPo)24S
    Idle Current(10V)3.3APeak Current(80s)210A
    Rated Power3300W
