Name: T-MOTOR VL8022 Large Drone Motors for VTOL UAVs
Brand: T-Motor
SKU: T-MOTOR001410
Price: 339.00 USD
Availability: InStock

Collect

Detail information
Specifications
Download

Hot Products

VL Series
Propulsion System

VL8022 KV190

MOTOR

V150A

ESC

VZ29

PROPELLER

Fast and economical
propeller locking

Fast (Lock the propeller in seconds)

The 360° custom angle propeller-locking can effectively avoid the turbulence caused by the rotation of the rotor and ensure that the aerodynamic layout of the fixed-wing aircraft is not affected, thereby improving flight safety

Economical (Adaptive propeller locking)

The ESC can automatically adjust the current to control the torque to lock the propeller as per the change of external force, reducing power consumption and heat to achieve energy saving

Recommendation

12S

Voltage

22.2kg

Max Thrust/Arm

40kg

Recommended MTOW(Quad)

Technical Drawing


Specification

Model No.	VL8022	Magnet Level	180℃
Motor Size	Φ88.8*47.5mm	Lead Cable	Silicone wire13# 1000mm
Stator	150°C high temperature -resisting coatings	Copper Wire	220℃
Configuration	24N28P	Coil Insulation Test	1000V/5s
Shaft Diameter	IN: 12 OUT: 10	Rotor Dynamic BalanceStandard	≤10mg
Bearing	Imported 6901	IP	IPX5
CentrifugalCooling Design	YES	Package Size	15012057mm

Model No.	VL8022	KV (RPM/V)	170
Rated Voltage (LiPo)	12S	Idle Current (15V)	2.5A
Internal Resistance(25℃)	30mΩ	Peak Current	135A
Continuous Power(180s)	2100W	Ambient Temperature	-30℃～55℃
Max. Thrust	22.2kg	Motor Weight(indl. Cable)	785g

ESC specs.
Model No.	V150A	Control	PWM/CAN
Max. Voltage	60V	Protocol	DRONE CAN/UAV CAN
Peak Current (10s)	160A (Under certain heat dissipation conditions)	Propeller-locking	ElectronicPropeller -locking
Continuous Current	70A (Under certain heat dissipation conditions)	Encoder cables	Shielded cables-Black -24AWG-5C-450±10mm -M6 aviation connector
Standby Consumption	≤50mA	Output Cable	Silicone wire-orange -10AWG-150±10mm
Throttle Pos. Range	1040~1940us (fixed)	Input Cable	Silicone wire-red/black -10AWG-200±10mm
Throttle RefreshFrequency	50~500Hz	Signal Cable	Shielded cables-Black -OD4.2-5C-500±10-JP -3P*2-Black blank white -green yellow gray
Throttle Response Speed	300ms	Weight (Incl. cables)	295g

Prop specs.
Model No.	VZ2911 inch (736.6279.4mm)	Weight (Single Blade)	90±5g

Test Data

Type	Throttle	Voltage (V)	Thrust (g)	Torque (N*m)	Current (A)	RPM	Power (W)	Effciency (g / W)	Operating Temperature (℃)
VL8022 KV170 + V150A 14S + VZ29*11	40%	44.41	4517	1.52	10.56	2366	469	9.63	125 (Ambient Temperature: 25)
	42%	44.38	5026	1.68	12.29	2494	545	9.22
	44%	44.34	5554	1.86	14.17	2620	628	8.84
	46%	44.31	6094	2.03	16.26	2744	720	8.46
	48%	44.26	6664	2.22	18.52	2866	819	8.13
	50%	44.22	7239	2.41	20.93	2986	926	7.82
	52%	44.18	7843	2.61	23.56	3103	1041	7.54
	54%	44.13	8446	2.81	26.35	3218	1163	7.26
	56%	44.07	9060	3.02	29.34	3331	1293	7.01
	58%	44.02	9706	3.23	32.52	3441	1432	6.78
	60%	43.96	10346	3.44	35.89	3549	1578	6.56
	62%	43.89	10993	3.66	39.43	3654	1731	6.35
	64%	43.83	11629	3.87	43.13	3757	1890	6.15
	66%	43.75	12266	4.09	46.99	3857	2056	5.97
	68%	43.67	12919	4.30	51.07	3955	2230	5.79
	70%	43.60	13561	4.52	55.31	4047	2411	5.62
	80%	43.26	16064	5.37	73.74	4388	3190	5.04
	90%	42.74	18875	6.33	99.88	4733	4268	4.42
	100%	42.33	20308	6.84	119.59	4916	5062	4.01
VL8022 KV170 + V150A 14S + VZ29*11	40%	50.07	5672	1.91	13.18	2654	660	8.59	125 (Ambient Temperature: 25)
	42%	50.04	6305	2.12	15.36	2795	769	8.20
	44%	50.01	6973	2.34	17.75	2933	888	7.85
	46%	49.97	7665	2.56	20.33	3069	1016	7.55
	48%	49.92	8356	2.79	23.14	3201	1155	7.23
	50%	49.88	9068	3.03	26.16	3332	1305	6.95
	52%	49.82	9805	3.28	29.46	3460	1468	6.68
	54%	49.75	10574	3.53	33.09	3589	1646	6.42
	56%	49.68	11335	3.79	36.84	3709	1831	6.19
	58%	49.61	12094	4.04	40.78	3827	2023	5.98
	60%	49.54	12802	4.29	44.87	3941	2222	5.76
	62%	49.46	13543	4.54	49.19	4052	2433	5.57
	64%	49.38	14310	4.81	53.81	4157	2657	5.39
	66%	49.30	15022	5.06	58.50	4259	2884	5.21
	68%	49.20	15758	5.31	63.48	4359	3123	5.05
	70%	49.10	16468	5.55	68.63	4454	3370	4.89
	80%	48.53	19564	6.63	95.19	4834	4620	4.23
	90%	47.95	21820	7.41	123.70	5086	5932	3.68
	100%	47.70	22268	7.56	136.67	5140	6519	3.42
Note:Temperatureinthechartisthebelltemperatureafterrunning@75%throttle on 44.4V for10mins. （Date above based on benchtest are for reference only,comparion with that of other motor types is not recommended.）

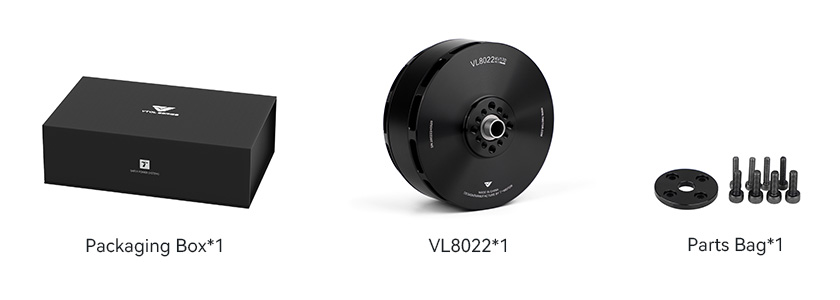

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@tmotor.com " in time.

VL8022 3D Diagram
