    X-A12XL II-14S

    Price inquiry: onlinesales@tmotor.com

    Points reward: 0 Points

    Quantity :

    0.00

    USD200 Consumption Free Shipping by International Express (Excl. Remote Areas and Special Items).

    • Detail information
    • Specifications

    Hot Products

    X-A12XL II-14S

    MODULAR Propulsion System

    X-A12XL II-14S modular propulsion system
    X-A12XL II-14SMOTOR
    14SFOC 200AESC
    PFZ4918PPROPELLER

    RECOMMENDATIONS

    Take-off weight

    120kgQuadcopter

    Take-off weight

    180kgHexacopter
    Technical Drawing


    Specification Export to Excel
    Model No.X-A12XL II-14S KV74Tube Size50mm
    SetupX-A12XL II-14S (Motor)+14S FOC 200A (ESC)+PFZ4918P (Propeller)Wire Material,
    Wire Gauge, Color    		Power Wires: 10#AWG Red & Black
    Signal Wires: 5P Teflon
    Recommended
    Battery    		12~14S (LiPo)Wire Length1695±10mm
    Rated Thrust28~34kgWeight4980±2%g
    (Incl. Wires+Propeller)
    Efficiency At
    Rated Thrust    		7.7g/W (28kg)IPIPX6
    Max. Thrust71.8kgRecommended
    Ambient Temperature    		-20~55℃
    Motor Specs
    Stator Size111*22mmKV74
    ESC Specs
    Throttle Range1100~1940us (Fixed)Max. Voltage61V
    ProtocolDRONE CAN、UAV CAN、
    CUBE CAN    		Peak Current
    (For A Short Time)    		200A
    (OpenEnvironment
    AndTemperature≤60℃)
    Control MethodPWM/CANBECNO
    Prop Specs
    Model No.PFZ4918P
    (Folding Carbon Fiber)    		Length49 Inch (1245.17mm)
    Test Data Export to Excel
    TypeVoltage
    (V)    		ThrottleCurrent
    (A)    		Thrust
    (gf)    		Torque
    (N·m)    		RPMMotor
    Efficiency
    (%)    		Overall
    Efficiency
    (gf/W)    		Operating
    Temperature
    (℃)
    X-A12XL II-14S KV74
    +
    14S FOC 200A
    +
    PFZ4918P    		5430%10.9284324.88104992.5714.3875
    (Ambient Temperature: 25)
    35%19.63126627.27128291.3512.01
    40%32.39174499.94150390.8910.03
    45%47.172273112.94171090.218.97
    50%67.842825716.03190489.987.76
    55%88.023413619.46208689.907.22
    60%112.524011622.89225589.436.64
    65%138.084600326.30241089.526.20
    70%164.835185029.70255489.125.86
    75%198.245762633.00268387.085.41
    80%231.846297736.17280185.195.06
    85%255.516701738.43288584.614.88
    90%280.847032340.40294982.734.66
    95%293.907189241.30297881.584.56
    100%290.367187241.32297682.574.61

    Note: Temperature in the chart is the bell temperature after running @80% throttle for 2min.

    (Data above based on benchtest at T-MOTOR lab are for reference only.)

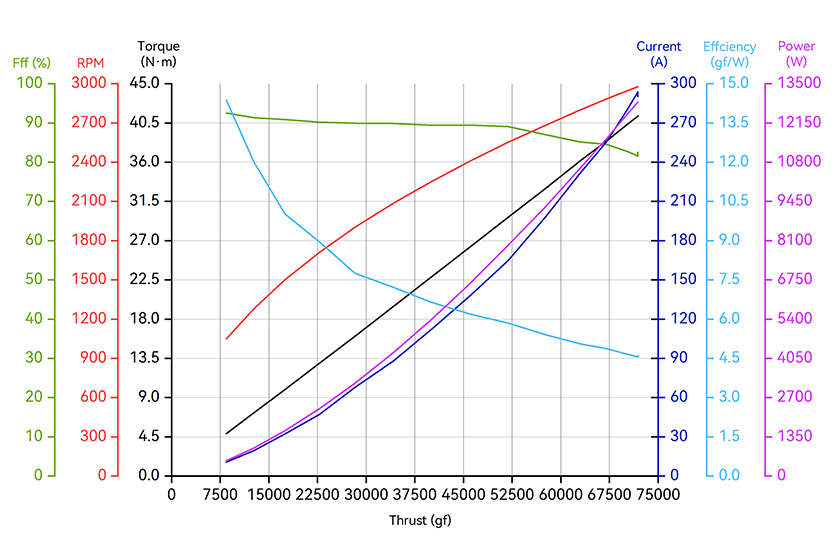

    Analysis Chart

    X-A12XL II-14S-line-en.jpg

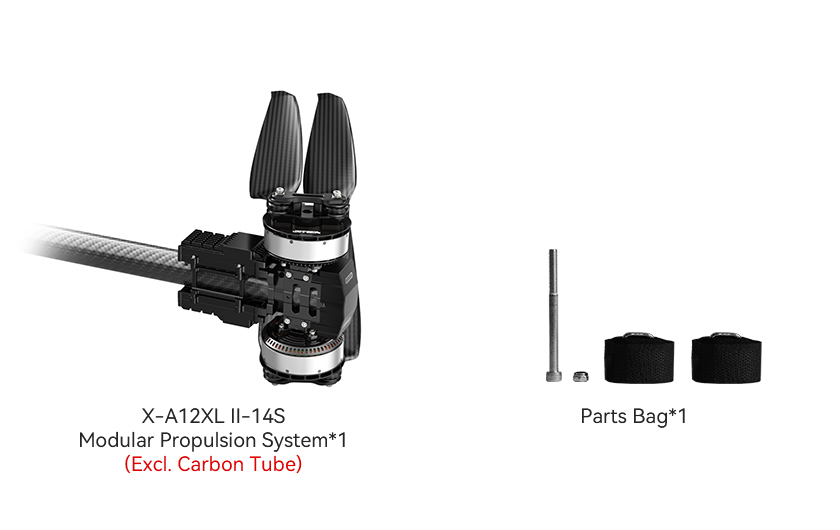

    Packing List


    Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@tmotor.com " in time.
