    HEP-L 34*11.5

    379.90

    Available points: 380 Points Points reward: 379 Points

    Quantity :

    379.90

    USD200 Consumption Free Shipping by International Express (Excl. Remote Areas and Special Items).

    • Detail information
    • Specifications

    Hot Products

    34X11.5 high-performance ultra-light rotor propellers

    HEP-L 34*11.5 High-Performance
    Ultra-Light Rotor Propellers

    3% Increased Flight Time · More Stable Forward Flight · Motor Collaborative Design

    • Single Propeller Weight93g
    • Recommended RPM Range1500~2200RPM
    • Recommended Thrust Range3.8~6.5kg
    34X11.5 aerodynamic optimization

    Extended Flight
    Endurance

    Aerodynamic optimization improves hovering efficiency and increases effective flight time by up to 3%

    Optimized Motor Propeller Matching

    Designed specifically for T-MOTOR efficiency motors to achieve optimal RPM and torque matching
    HEP-L is precisely matched with T-MOTOR's high-efficiency motors enabling long endurance multirotors with flights of 60~90 minutes

    HEP-L motor propeller matching chart
    ModelMotor CompatibilityRecommended
    Voltage    		Recommended Takeoff
    Weight for Quadcopter
    HEP-L 14*5.1MN4004 KV4006S2.5kg
    HEP-L 15*5.5MN4006 EVO KV3806S3kg
    HEP-L 16*6MN4006 EVO KV3806S3.5kg
    HEP-L 17*6.6MN5006 KV3006S4kg
    HEP-L 18*6.7MN5008 KV17012S6kg
    HEP-L 18*6.7MN5008 KV3406S6kg
    HEP-L 19*6.8MN5008 KV3406S6kg
    HEP-L 20*7MN501 KV3006S6kg
    HEP-L 21*7MN6007 II KV16012S7kg
    HEP-L 21*7MN6007 II KV3206S7kg
    HEP-L 22*7.2MN6007 II KV16012S7kg
    HEP-L 22*7.2MN6007 II KV3206S7kg
    HEP-L 24*7.8MN7005 KV11512S6.5kg
    HEP-L 24*7.8MN7005 KV2306S6.5kg
    HEP-L 26*8.8MN701S KV13512S15kg
    HEP-L 28*9U8II PRO KV10012S12kg
    HEP-L 28*9U8II Lite KV10012S12kg
    HEP-L 29*11U8II PRO KV10012S13kg
    HEP-L 29*11U8II Lite KV10012S13kg
    HEP-L 30*10.5U8Lite L KV9512S13kg
    HEP-L 32*11MN1005 V2.0 KV9012S14kg
    HEP-L 32*11MN1005 V2.0 KV10012S18kg
    HEP-L 34*11.5MN1010 KV9012S18kg
    HEP-L 36*12MN1010 KV9012S20kg

    Forward Flight
    Vibration Suppression

    Enhanced propeller structure reduces vibration and improves wind resistance during cruise

    HEP-L forward flight vibration analysis 1HEP-L forward flight vibration analysis 2

    Lightweight and Durable

    Breakthroughs in lightweight and toughness

    Scaling industrial-grade lightweight processes for ultra-lightweight mass production

    HEP-L 34*11.5 single propeller weighs about 93g

    HEP-L ultra-lightweight propeller profile

    Enhanced Damage Resistance

    Engineered high-toughness resin surface fiber reinforcement, and damage-tolerant design limit micro-damage propagation for enhanced reliability

    Under identical 6J impact energy, HEP-L achieves a 1.93mm impact depth versus 2.54mmfor NS, delivering 24% improved impact resistance

    NS Series

    Damage Measurement: Ultrasonic C-Scan

    NS series pre-impact ultrasonic C-scan
    Pre-Impact
    NS series post-impact ultrasonic C-scan
    Post-Impact

    HEP-L Series

    Damage Measurement: Ultrasonic C-Scan

    HEP-L series pre-impact ultrasonic C-scan
    Pre-Impact
    HEP-L series post-impact ultrasonic C-scan
    Post-Impact

    Reliable Identification
    and Protection

    Integrated QR code molding and protective packaging improve lifetime traceability and transport safety

    HEP-L reliable identification product viewHEP-L molded QR code

    Recommended Combo

    HEP-L 34*11.5, Motor Compatibility: MN1010 KV90, Recommended Voltage: 12S
    Recommended Takeoff Weight for Quadcopter: 18kg

    HEP-L 34*11.5 propeller recommended comboMN1010 KV90 motor recommended combo

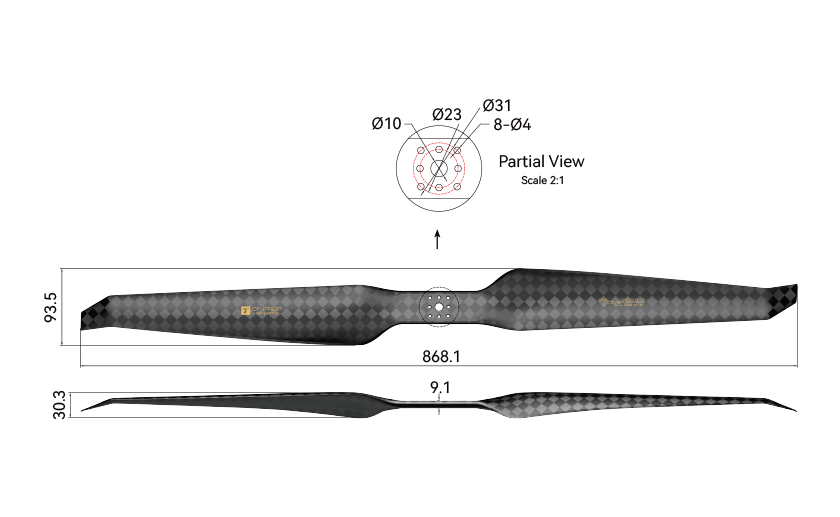

    Technical Drawing

    HEP-L 34 Inch Propeller Engineering Drawing (English Version).png

    Specification Export to Excel
    Diameter (Inch)34 (868.1mm)Common Thrust Range (kg)3.8~6.5
    Pitch (Inch)11.5(292.1mm)Common Speed
    Range (RPM)    		1500~2200
    AverageSingle
    Blade Weight (g)    		93MaterialResin-BasedCarbonFiber
    Composite+PMIFoamCore
    Recommended
    Max RPM (RPM)    		3830Suface TreatmentMatte
    Recommended
    Max Thrust (kg)    		26TypeOne-Piece Straight Propeller
    Limit RPM (RPM)4300ApplicationLong Endurance Multi-Rotor UAV
    Limit Thrust (kg)33Connections &
    Dimensions    		Flange Mount, Ø10mm Center Hole, Ø23mm Bolt Circle, With 4*Ø3mm Mounting Holes&Ø31mm Bolt
    Circle, With 4*Ø4mm
    Recommendations
    Recommended Solution: MN1010 KV90+ALPHA 120A 12S

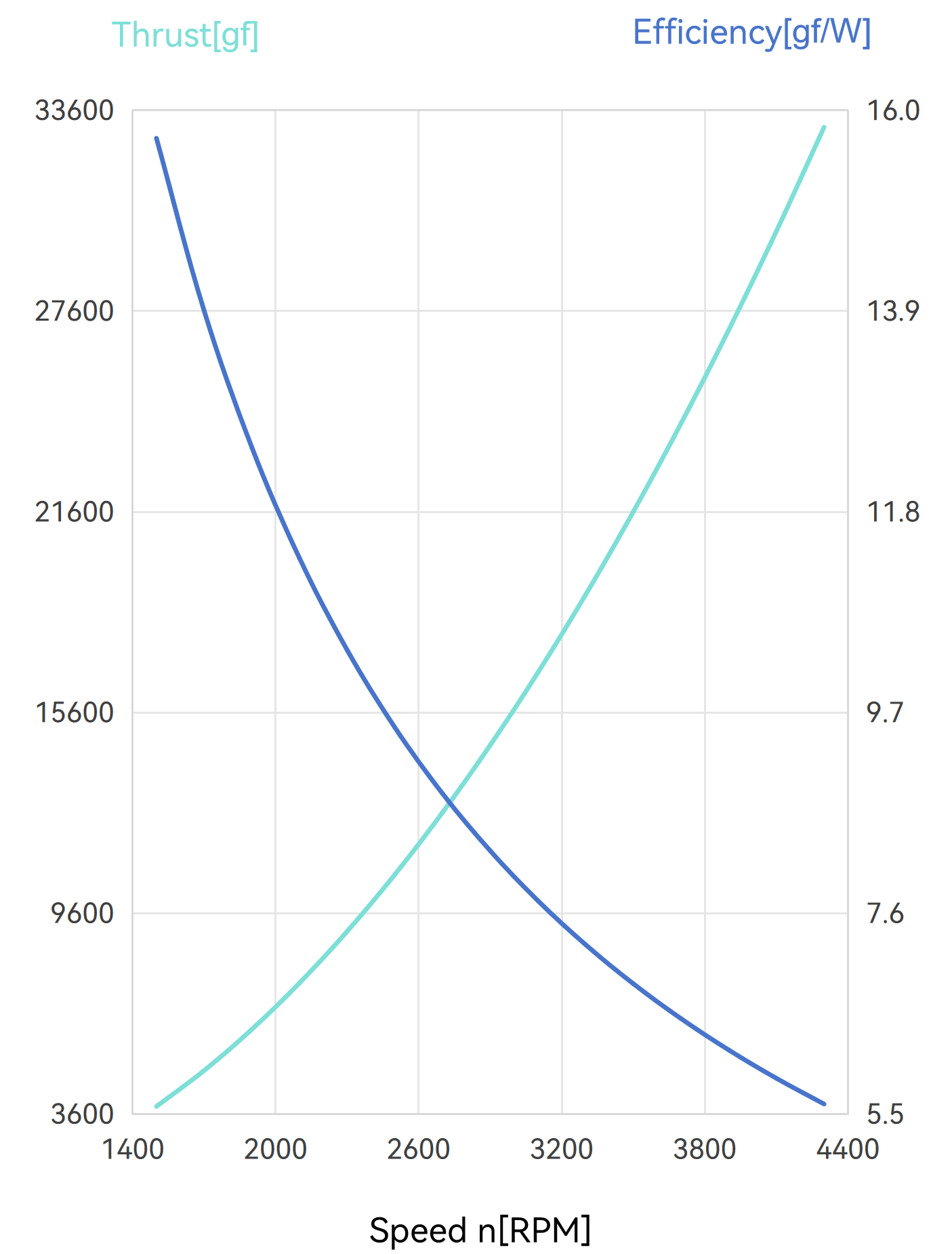

    Test Data Export to Excel
    RPMTorque
    (N·m)    		Thrust
    (gf)    		Output
    Power
    (W)    		Effciency
    (gf/W)    		Operating
    Temperature
    (℃)
    34-line-en.png15001.553830243.8315.7122℃
    17001.984904352.7113.90
    19002.476134491.7012.48
    21003.027521664.6311.32
    23003.639064875.3410.35
    25004.31107631127.669.54
    27005.04126191425.428.85
    29005.84146311772.478.25
    31006.69168002172.637.73
    33007.61191252629.737.27
    35008.59216063147.616.86
    37009.63242443730.116.50
    390010.73270384381.066.17
    410011.89299885104.295.88
    430013.11330955903.635.61
    Important Notes: Data may vary under different testing standards due to factors such as equipment, methodology, and environment.
    Ensure compatibility between the propeller mounting holes and motors. Refer to the drawing above for details.

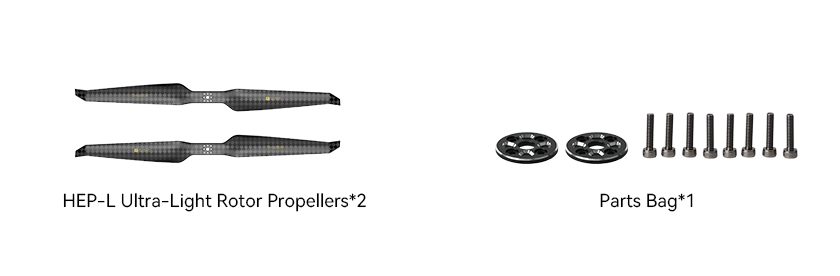

    Packing List

    HEP-L 34 Inch Propeller Packaging Drawing (English Version).png

    Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@tmotor.com " in time.
