    AM53A P5B

    39.90

    Available points: 2000 Points Points reward: 39 Points

    Quantity：

    39.90

    USD200 Consumption Free Shipping by International Express (Excl. Remote Areas and Special Items).

    Relevant Products

    • Detail information
    • Specifications

    Hot Products

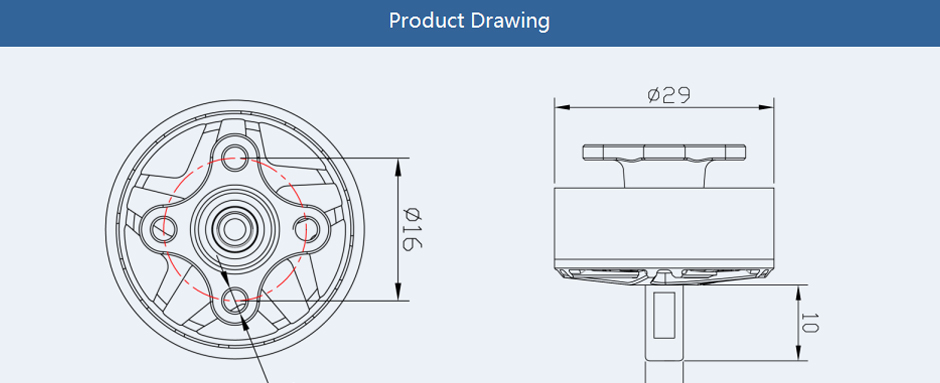

    Technical Drawing

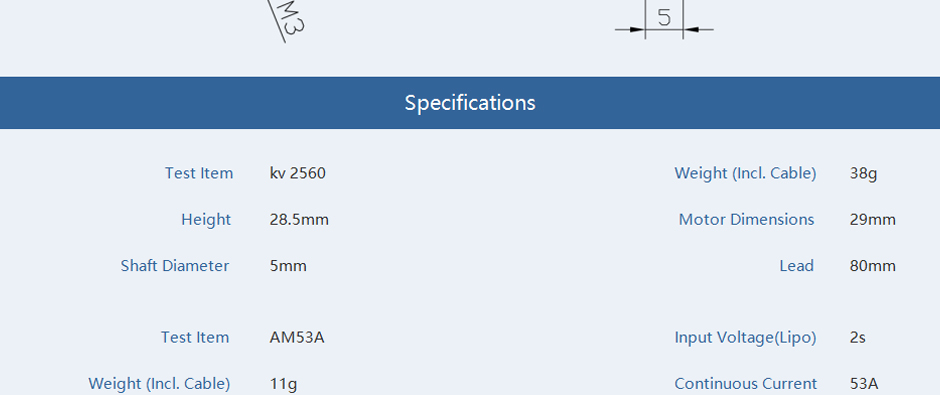

    Specification
    Test ItemAM83 kv 2560Weight (Incl. Cable)38g
    Height28.5mmMotor Dimensions29mm
    Shaft Diameter5mmLead80mm
    Test ItemAM53AInput Voltage(Lipo)2s
    Weight11gContinuous Current53A
    Peak Current63ABEC OutputSame as voltage
    Power line100mm 16AWGSignal line150mm

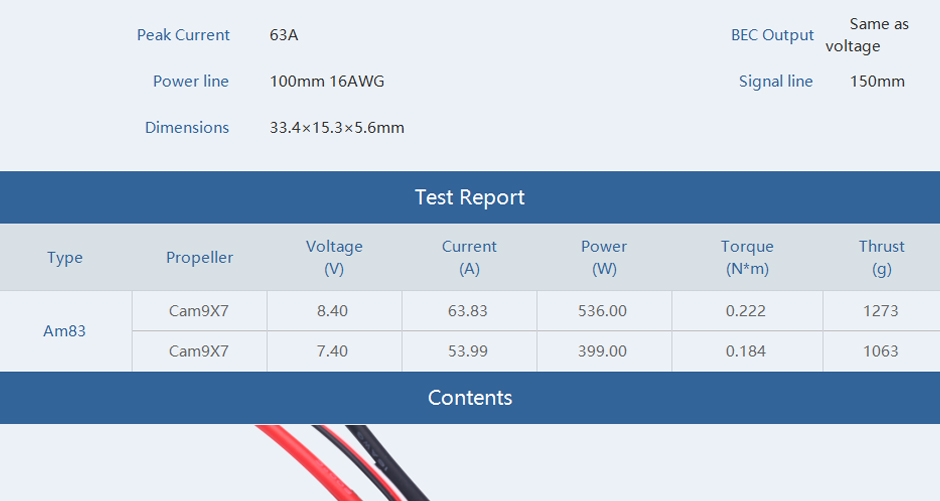

    Test Data
    TypePropellerVoltage
    (V)    		Current
    (A)    		Power
    (W)    		Torque
    (N*m)    		Thrust
    (g)
    Am83Cam9X78.4063.83536.000.2221273
    Cam9X77.4053.99399.000.1841063

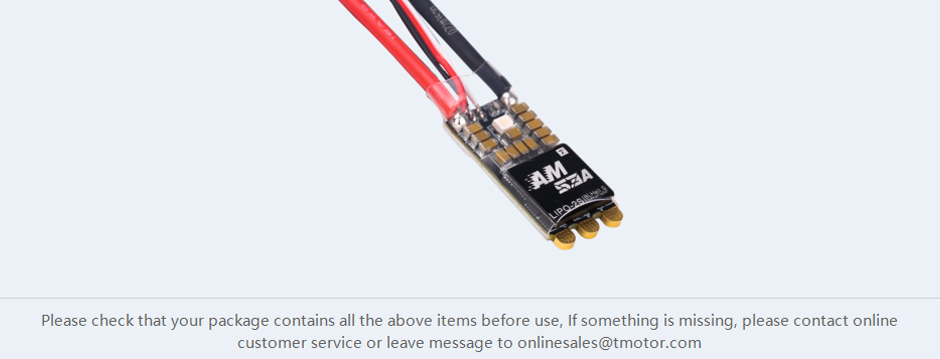

    Packing List

    Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@tmotor.com " in time.
