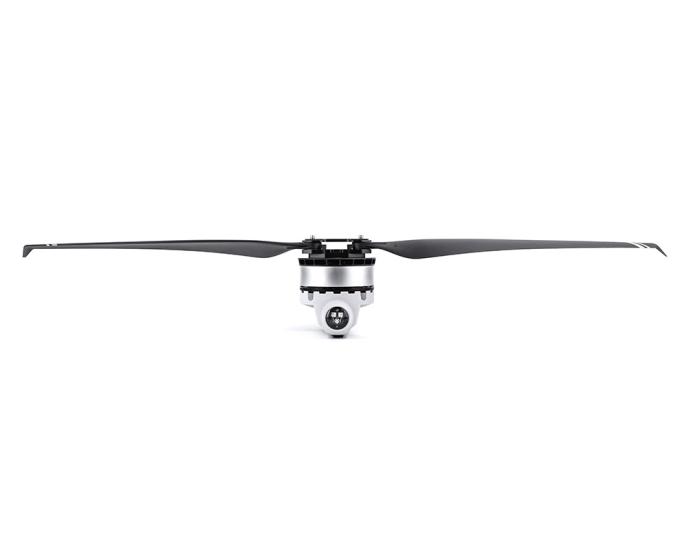

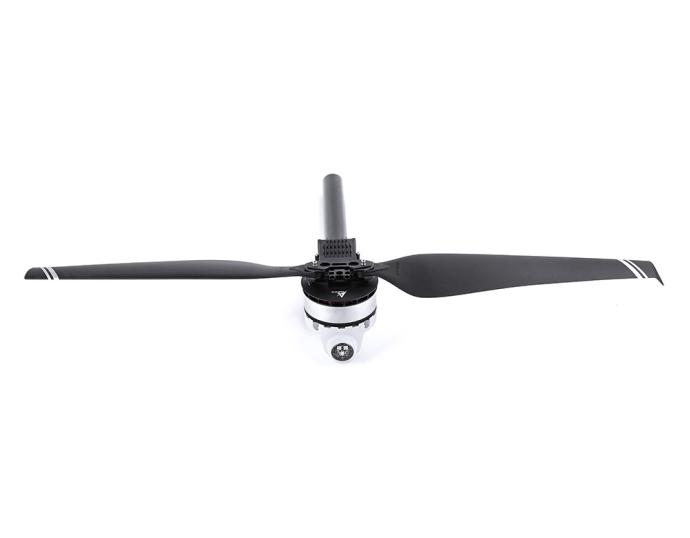

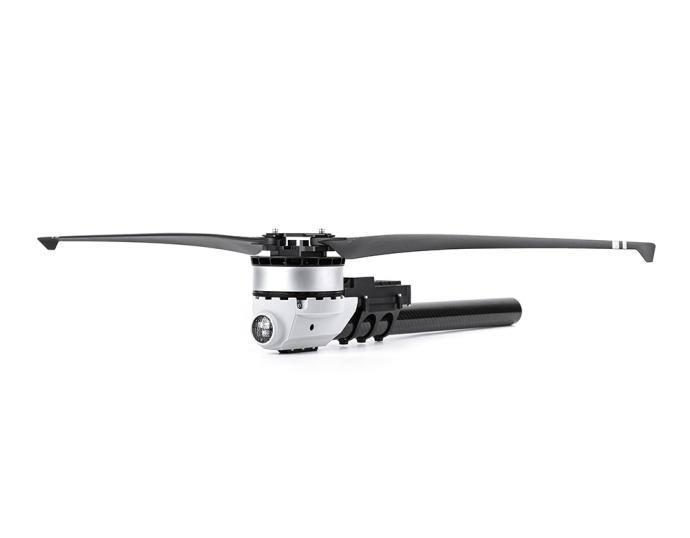

    A10XL

    Price inquiry: onlinesales@tmotor.com

    Points reward: 0 Points

    Color：
    • Orange
    • Grey
    Quantity：

    0.00

    USD200 Consumption Free Shipping by International Express (Excl. Remote Areas and Special Items).

    • Detail information
    • Specifications

    Hot Products

    A10XL
    MODULAR
    Propulsion System
    For 30L quadcopter or 40L hexacopter agricultural drones
    A10XL
    A10XL
    MOTOR
    14S FOC 200A
    ESC
    MF3628P
    PROPELLER
    A10XL Recommendations
    Load capacity(liquid)
    30L
    Agriculture Quadcopter Drone
    Load capacity(liquid)
    40L
    Agriculture Hexacopter Drone
    Take-off weight
    52~60kg
    Quadcopter
    Take-off weight
    78~90kg
    Hexacopter

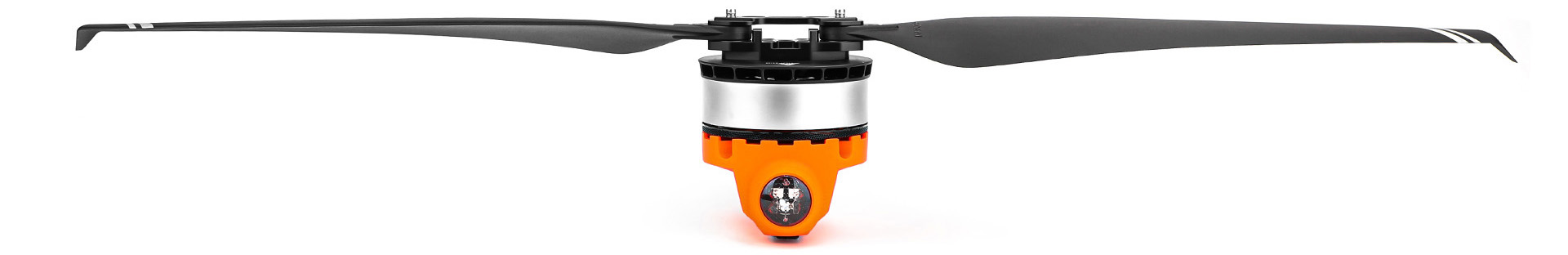

    A10XL

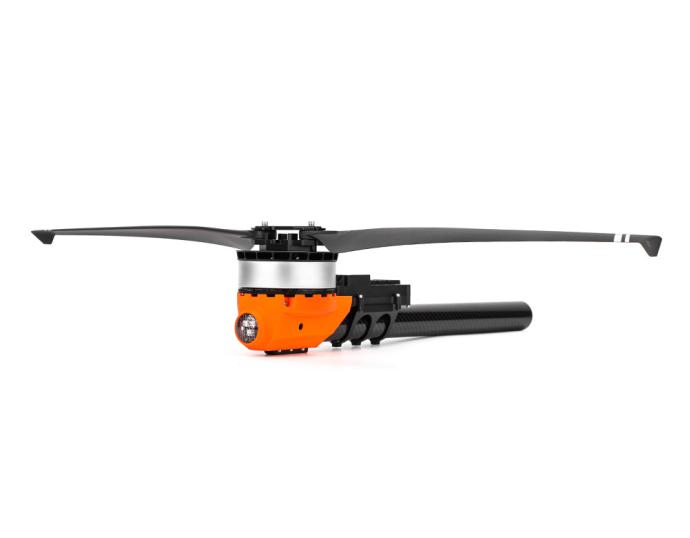

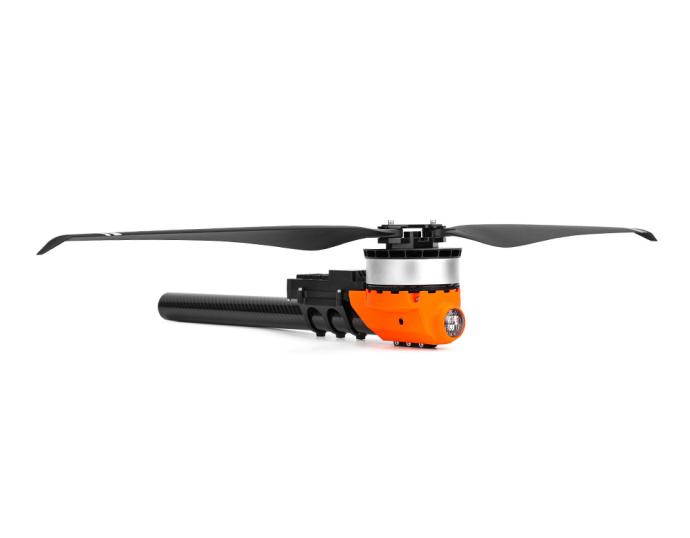

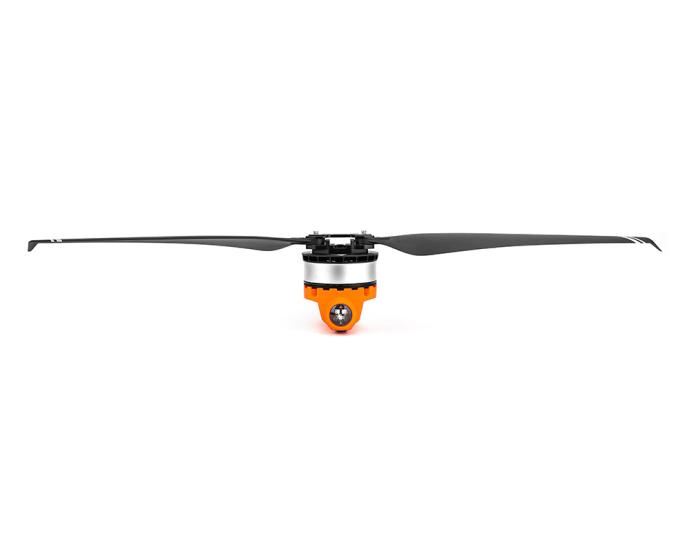

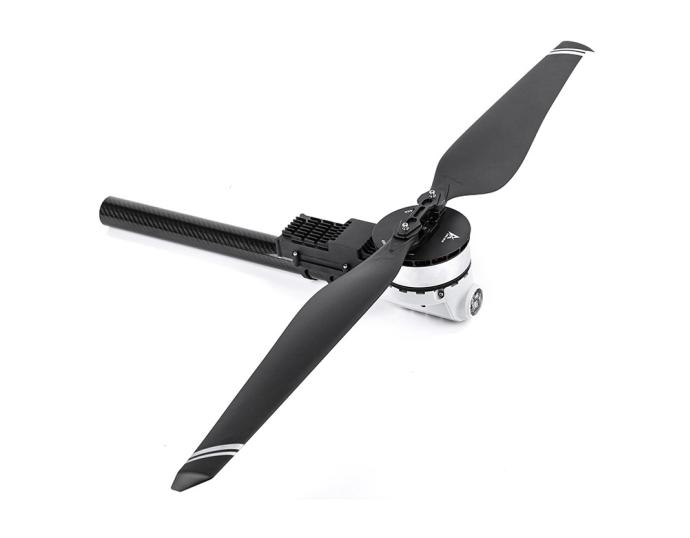

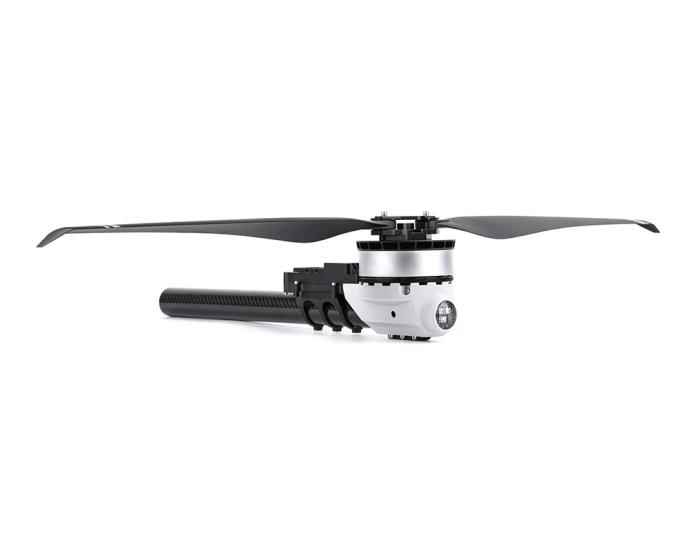

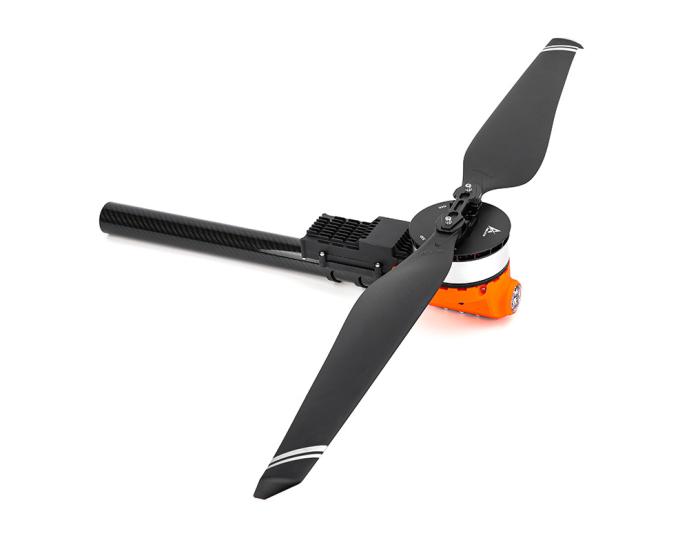

    Silicone protective cover with two colors optional
    Fluorescent Orange
    Industrial Gray
    Technical Drawing


    Specification Export to Excel
    Model No.A10L KV110Tube size40mm
    SetupA10L (Motor)+14S FOC 200A (ESC)+
    MF3628P (Prop)    		Wire material,
    wire gauge, color    		Power wires：12#AWG red & black
    Signal wires: 5P Teflon
    Recommended battery12~14S (LiPo)Wire length1150±5mm
    Rated thrust11~13kgWeight1800±2%g (incl. Wires+prop)
    Efficiency at rated thrust6.9g/W (13kg)IPIPX6
    Max. thrust25kgRecommended ambient
    temperature    		-20～55℃
    Motor specs.
    Stator size99*19mmKV110
    ESC specs.
    Throttle range1100~1940us (fixed)Max. voltage61V
    ProtocolDRONE CAN、 UAV CAN、
    CUBE CAN    		Peak current
    (for a short time)    		200A
    (Open environment
    and temperature≤60℃
    Control methodPWM/CANBECNO
    Prop specs
    Model No.MF3628P (Polymer Folding)Length36 inch (914mm)
    Test Data Export to Excel
    TypeVoltage
    (V)    		Throttle
    (%)    		Current
    (A)    		Thrust
    (g)    		Motor
    efficiency
    (%)    		Overall
    efficiency
    (gf/W)    		Operating
    temperature
    (℃)
    A10L KV110
    +
    14S FOC 200A
    +
    MF3628P    		46.2830%2.3717627016.09115
    (Ambient temperature:
    27.8)
    46.4135%4.1527227614.15
    46.540%6.7138848012.45
    46.4545%10.0851528211
    46.3650%14.716689839.81
    46.2555%20.578431838.86
    46.1460%27.8410287838.01
    46.0765%36.5412313827.31
    45.9370%46.9214506826.73
    45.7475%59.4116909816.22
    45.5780%72.7619114815.76
    45.3885%88.0621169795.3
    45.1490%102.5422846774.94
    45.1495%102.3822803774.93
    45.13100%102.1422623774.91

    Note: Temperature in the chart is the bell temperature after running @80% throttle for 2min.

    (Data above based on benchtest at T-MOTOR lab are for reference only.)

    A10L KV110
    +
    14S FOC 200A
    +
    MF3628P    		60.3430%2.2619797114.52109
    (Ambient temperature:
    27.8)
    60.4735%4.0531227612.73
    60.4440%6.5244368011.25
    60.3745%9.8859678110.01
    60.350%14.27669828.96
    60.2255%19.649572828.09
    60.1760%26.3211672827.37
    60.165%34.6913966816.7
    59.9570%44.5216400816.14
    59.8275%55.2818925815.72
    59.6680%68.121531805.3
    59.4685%81.8723997794.93
    59.490%85.9424653784.83
    59.3895%85.9624496784.8
    59.39100%85.6624557784.83

    Note: Temperature in the chart is the bell temperature after running @80% throttle for 2min.

    (Data above based on benchtest at T-MOTOR lab are for reference only.)

    Analysis Chart

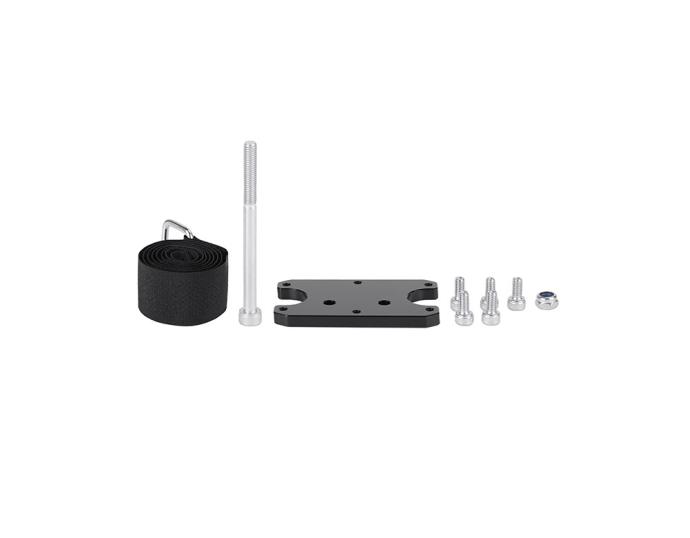

    Packing List


    Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@tmotor.com " in time.
