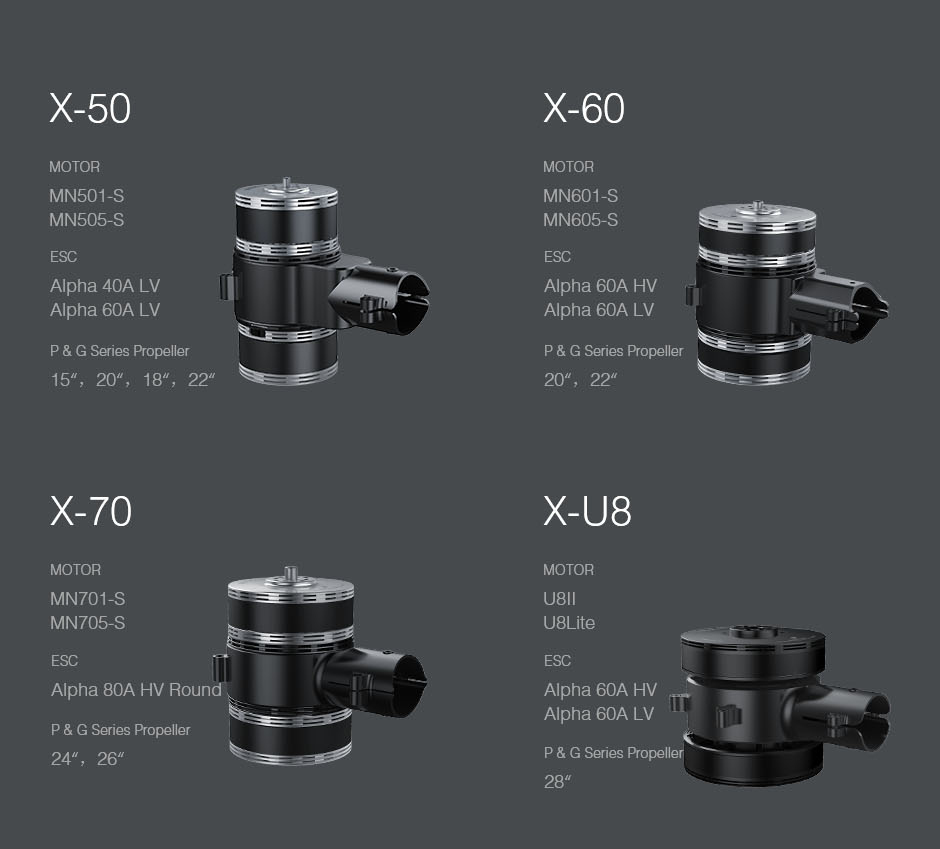

    X-701 Combo Pack Coaxial Type (Integrated Propulsion System ) Alpha 80A 135/280KV

    720.00

    Available points: 36000 Points Points reward: 720 Points

    • Polymer propellers are not recommended for coaxial setups
    • Free of complicated mounting process
    • Turn-key system, perfect compatibility, superb cost performance
    • Fast and convenient
    Parameter：
    • MN701-S KV135+Alpha 80A HV Round
    • MN701-S KV280+Alpha 80A HV Round
    • MN701-S KV135+Alpha 80A HV Round+P24*7.2-10mm Hole
    Quantity：

    720.00

    USD200 Consumption Free Shipping by International Express (Excl. Remote Areas and Special Items).

    Relevant Products

    • Detail information
    • Specifications

    Hot Products







    Technical Drawing
    Specification Export to Excel
    ModelX-701KV135Lead Cable Length580mm
    Dimension126.5*81.5*126.1mmArm Set Weight(Incl. Cable)1175g
    Configuration24N28PShaft DiameterIN:8mm OUT:8mm
    Idle Current (24V)0.9ARated Voltage (Lipo)12S
    Internal Resistance94mΩESCRecommendationALPHA 80A 12S
    Max. Power (180s)434WPropellerRecommendationP24*7.2
    Test Data Export to Excel
    TypeVoltage
    (V)    		PropellerThrottle
    (%)    		Current
    (A)    		Thrust
    (g)    		Torque
    (N.m)    		RPMMotor
    Efficiency
    (%)    		Efficiency(gf/W)Operating
    Temperature
    (℃)
    X-701-X
    KV135（Alpha 80A 12S ）    		12S(48V)P24*7.240%5.3725100.82235879.4411.4674
    （Ambient Temperature：
    25）
    45%7.2631791.03262481.2010.73
    50%9.5739011.25288982.709.99
    55%12.2746741.48314983.169.28
    60%15.5155381.75341183.988.72
    65%19.1664412.02366684.308.18
    70%23.3573602.30391184.417.66
    75%28.1183552.60415684.637.23
    80%33.5694132.93439784.116.82
    85%39.57104563.25462983.506.44
    90%46.26115813.59486083.266.12
    95%49.99121663.77497882.995.96
    100%50.75123043.82500083.135.95
    Note: Motor temperature is motor surface temperature @100% throttle running 5mins.
    (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
    Matching Table
    Arm SetCompatible
    Tube Size    		MotorKVDefault ESCDefault
    Propeller    		Propeller OptionsCustom ESC
    501-X25mm/30mm
    (25mm=30mm+
    adapter)    		MN501-SKV240ALPHA 60A 12S V1.2MF1503P15*5, FA15.2*5FLAME 60A 12S
    KV300ALPHA 40A 6SMF2009P20*6, FA20.2*6.6ALPHA 60A 12S V1.2,
    AIR 40A
    KV360MF1806P18*6.1, FA18.2*5.9
    505-XMN505-SKV320ALPHA 60A 6SMF2211P22*6.6, FA22.2*7.2FLAME 60A 12S
    KV380MF1806P18*6.1, FA18.2*5.9
    601-XMN601-SKV170ALPHA 60A 12S V1.2MF2009P20*6, FA20.2*6.6FLAME 60A 12S
    KV320ALPHA 60A 6SP20*6, FA20.2*6.6
    605-XMN605-SKV170ALPHA 60A 12S V1.2MF2211P22*6.6, FA22.2*7.2FLAME 60A 12S
    KV320ALPHA 60A 6S
    701-XMN701-SKV135ALPHA 80A 12S
    Round    		MF2614P24*7.2-10mm Hole,
    G24*7.8, FA24.2*7.9    		/
    705-XMN705-SKV125ALPHA 80A 12S
    Round    		MF2614G26*8.5, FA26.2*8.5/
    U8Ⅱ-X
    U8 Lite-X
    XU8-X    		U8Ⅱ
    U8 Lite
    XU8    		KV85ALPHA 60A 12S V1.2MF2815G28*9.2, FA28.2*9.2FLAME 60A 12S
    KV100
    KV150ALPHA 60A 6S
    KV190
    6007Ⅱ-X25mm/28mm6007ⅡKV160ALPHA 60A 12S V1.2MF2211FA22.2*7.2,
    NS22*6.6, P22*6.6    		FLAME 60A 12S
    KV320ALPHA 60A 6S
    P60-X25mm/30mm
    (25mm=30mm+
    adapter)    		P60KV170FLAME 60A 12SMF2211P22*6.6, G22*7.2/
    P80-X30mm/35mm
    or 40mm
    (Notify us your tube size)    		P80KV100/KV120ALPHA 80A 12SMF3016P30*10, G30*10.5FLAME 80A 12S,
    FLAME 100A 14S
    X-50125mm/30mm
    (25mm=30mm+
    adapter)    		MN501-SKV240ALPHA 60A 12S V1.2P15*5/FLAME 60A 12S
    KV300ALPHA 40A 6SP20*6/ALPHA 60A 6S,
    AIR 40A
    KV360P18*6.1/
    X-505MN505-SKV320ALPHA 60A 6SP22*6.6/FLAME 60A 12S
    KV380P18*6.1/
    X-601MN601-SKV170ALPHA 60A 12S V1.2P20*6/FLAME 60A 12S
    KV320ALPHA 60A 6S/
    X-605MN605-SKV170ALPHA 60A 12S V1.2P22*6.6/FLAME 60A 12S
    KV320ALPHA 60A 6S/
    X-U8Ⅱ
    X-U8 Lite    		U8Ⅱ
    U8 Lite    		KV85ALPHA 60A 12S V1.2G28*9.2/FLAME 60A 12S
    KV100/
    KV150ALPHA 60A 6S/
    KV190/
    X-70130mm/35mm
    (30mm=35mm+
    adapter)    		MN701-SKV135ALPHA 80A 12S
    Round    		P24*7.2
    -10mmHole    		G24*7.8/
    X-705MN705-SKV125ALPHA 80A 12S
    Round    		G26*8.5//
    * NOTE : order qty should be an EVEN number.
