    AM20 PRO F3P-A Indoor Rc Plane Motor KV1500/KV1900

    45.99

    Available points: 2200 Points Points reward: 45 Points

    1.very light weight only 10.1g
    2. Considerate design with easy installation
    3.Very light and easier to accomplish the task
    4.Good throttle linear
    KV：
    • KV1500
    • KV1900
    Quantity：

    45.99

    USD200 Consumption Free Shipping by International Express (Excl. Remote Areas and Special Items).

    Relevant Products

    • Detail information
    • Specifications

    Hot Products

    About T-MOTOR AM20 PRO F3P-A Indoor RC Plane Motor


    T-Motor AM20 PRO F3P-A is the flagship of T-Motor Hobby for indoor competition

    Which is hi-end motor weighing only 10.1 grams and Suitable for F3P indoor route aircraft of 50-100g.


    AM20 Pro Hightlight:



    1.Very light weight only 10.1g

    2.Considerate design with easy installation

    3.Very light and easier to accomplish the task

    4.Good throttle linear


    Packing List Includes:


    1x T-MOTOR AM20 Motor

    1x Hardware pack


    Matching Guide:


    T-MOTOR AM06A ESC

    FS10*3.1 F3P-A Carbon Fiber Prop

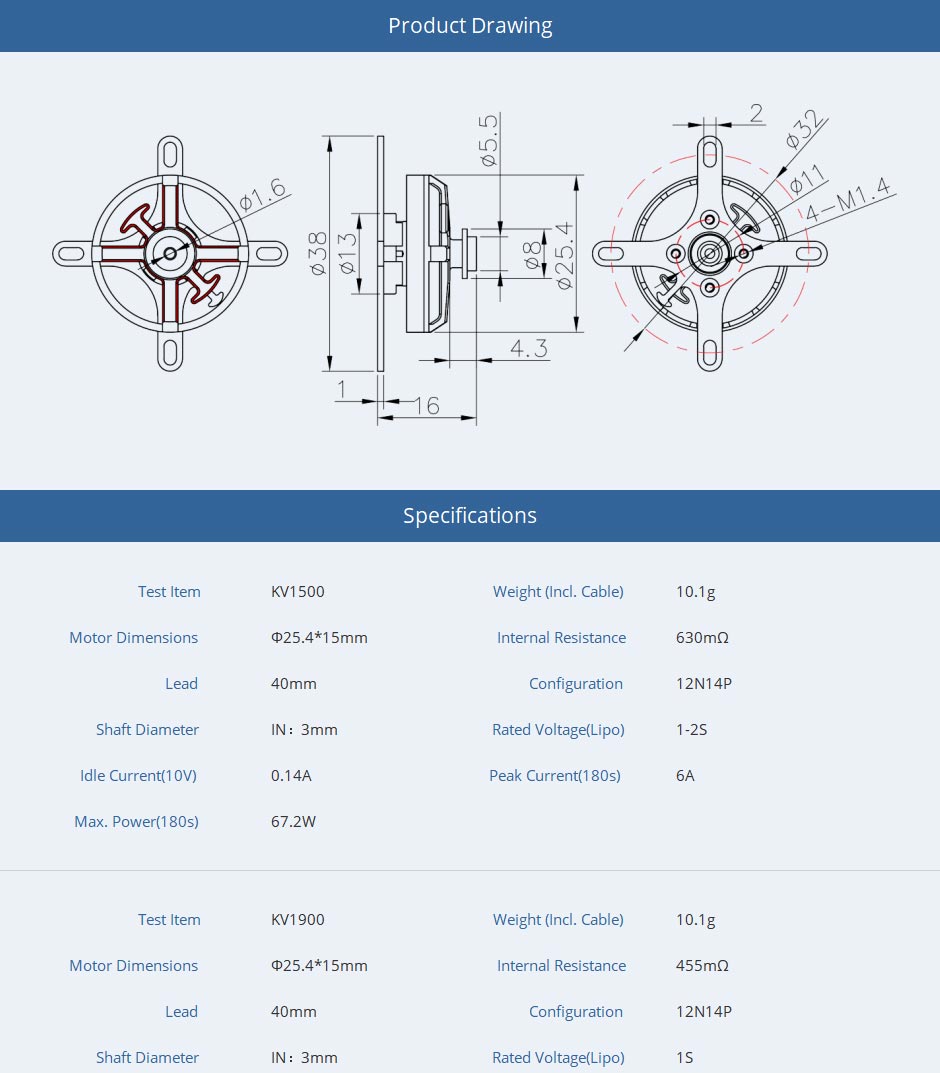

    Technical Drawing

    Specification
    Test ItemKV1500Weight (Incl. Cable)10.1g
    Motor DimensionsΦ25.4*15mmInternal Resistance630mΩ
    Lead40mmConfiguration12N14P
    Shaft DiameterIN：3mmRated Voltage(Lipo)2S
    Idle Current(10V)0.14APeak Current(180s)6A
    Max. Power(180s)67.2W
    Test ItemKV1900Weight (Incl. Cable)10.1g
    Motor DimensionsΦ25.4*15mmInternal Resistance455mΩ
    Lead40mmConfiguration12N14P
    Shaft DiameterIN：3mmRated Voltage(Lipo)2S
    Idle Current(10V)0.25APeak Current(180s)6A
    Max. Power(180s)67.2W

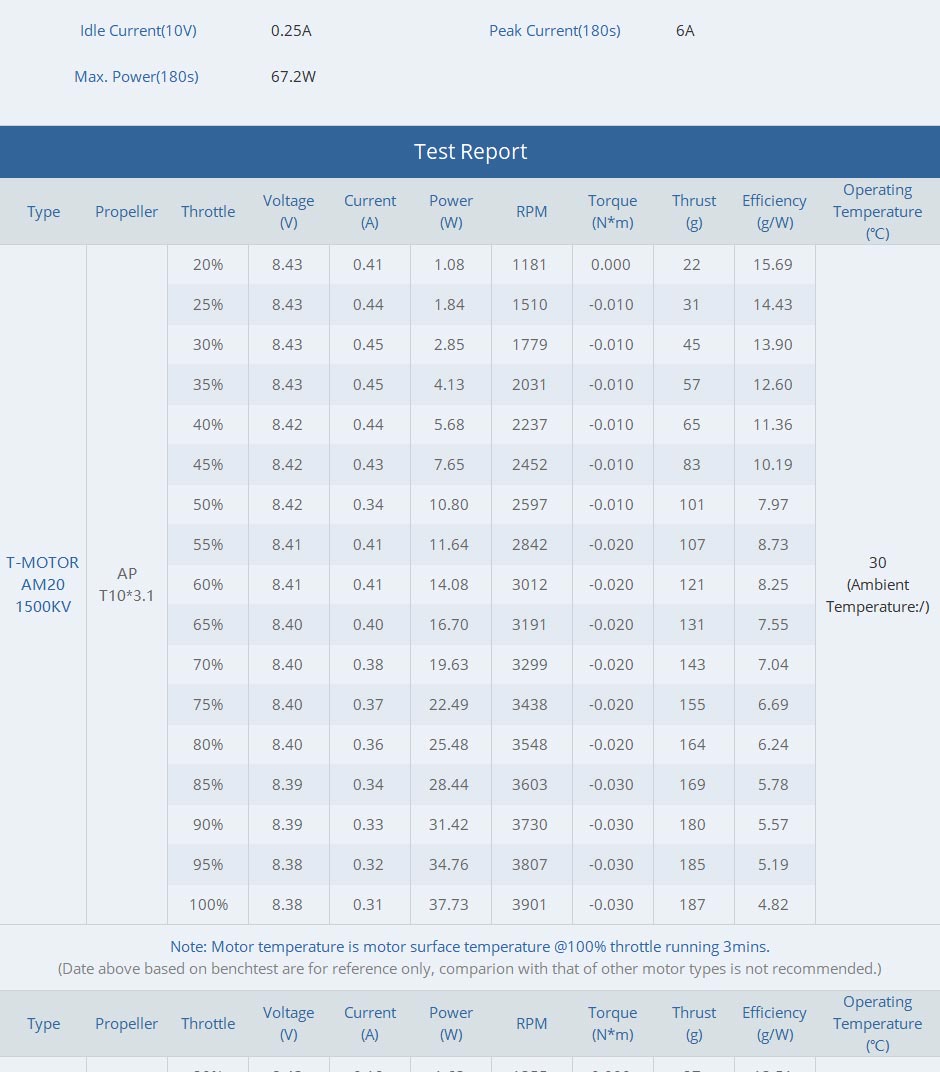

    Test Data
    TypePropellerThrottleVoltage
    (V)    		Current
    (A)    		Power
    (W)    		RPMTorque
    (N*m)    		Thrust
    (g)    		Efficiency
    (g/W)

    Operating

    Temperature

    (℃)
    T-MOTOR
    AM20
    KV1500    		T-MOTOR
    10*3.1    		30%8.230.342.8216480.0063713.1830
    35%8.230.494.0518820.0074811.91
    40%8.220.725.8920610.009589.85
    45%8.220.897.3223220.010709.61
    50%8.221.2510.2723950.011767.38
    55%8.221.3611.1527050.014958.55
    60%8.211.6313.3628560.0151067.95
    65%8.201.9415.9129970.0171187.41
    70%8.192.2718.5831470.0191286.92
    75%8.192.6221.4232790.0201396.50
    80%8.173.0925.2334600.0221546.11
    85%8.173.4928.4735690.0241655.80
    90%8.163.9031.8136580.0251765.52
    95%8.154.3035.0237410.0261835.23
    100%8.144.6838.0638360.0271894.98
    Note: Motor temperature is motor surface temperature at 100% throttle running 3mins.
    (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)

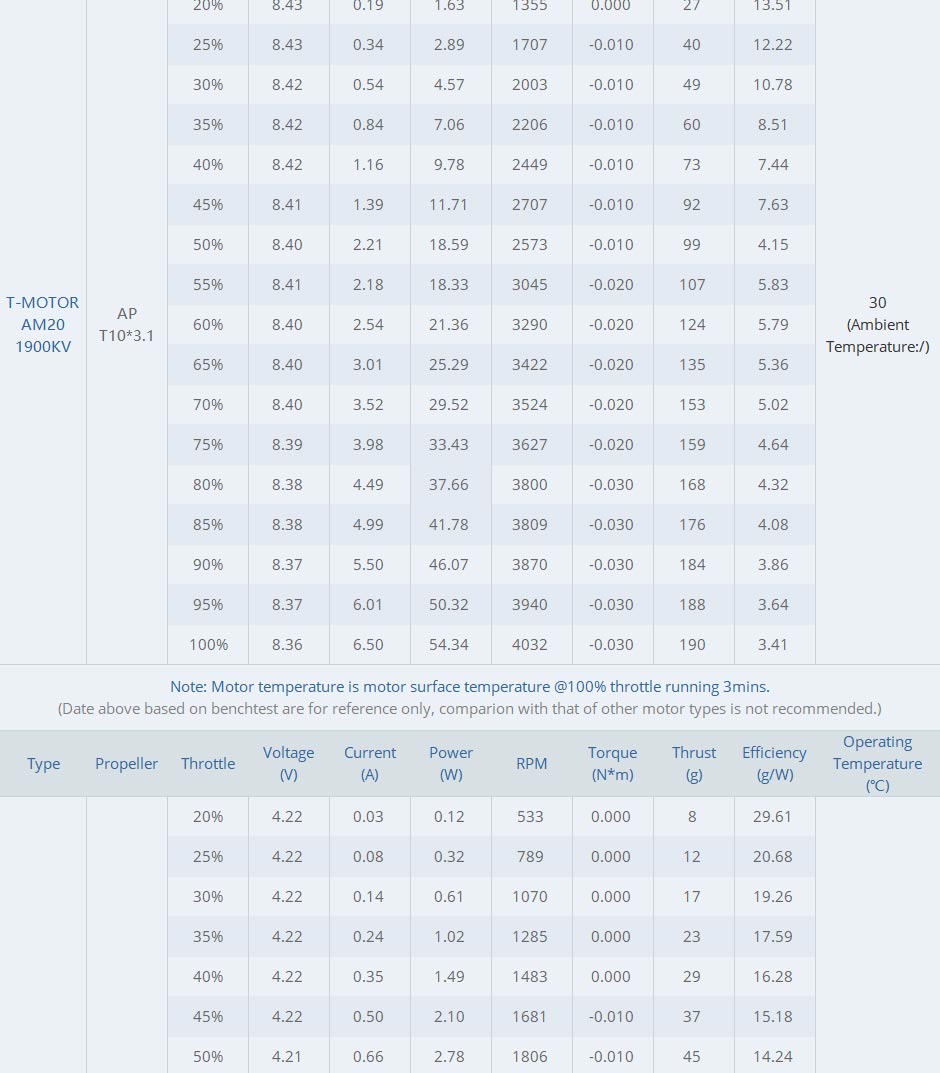

    T-MOTOR
    AM20
    KV1900    		T-MOTOR
    10*3.1    		30%8.220.514.1918920.0074811.3730
    35%8.220.756.1921260.009609.65
    40%8.211.3210.8620320.008544.98
    45%8.201.8314.9719380.007493.29
    50%8.192.0216.5123610.011744.48
    55%8.191.9616.0229280.0161126.98
    60%8.192.3519.2230860.0181256.49
    65%8.182.7922.7932260.0201375.99
    70%8.173.2426.4533450.0211475.57
    75%8.163.7030.2034680.0231585.23
    80%8.154.1733.9435800.0241674.91
    85%8.144.6537.8036770.0251754.64
    90%8.135.1441.7537600.0261834.38
    95%8.115.6545.8238200.0271904.16
    100%8.106.1449.7238870.0281963.95
    Note: Motor temperature is motor surface temperature at 100% throttle running 3mins.
    (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)

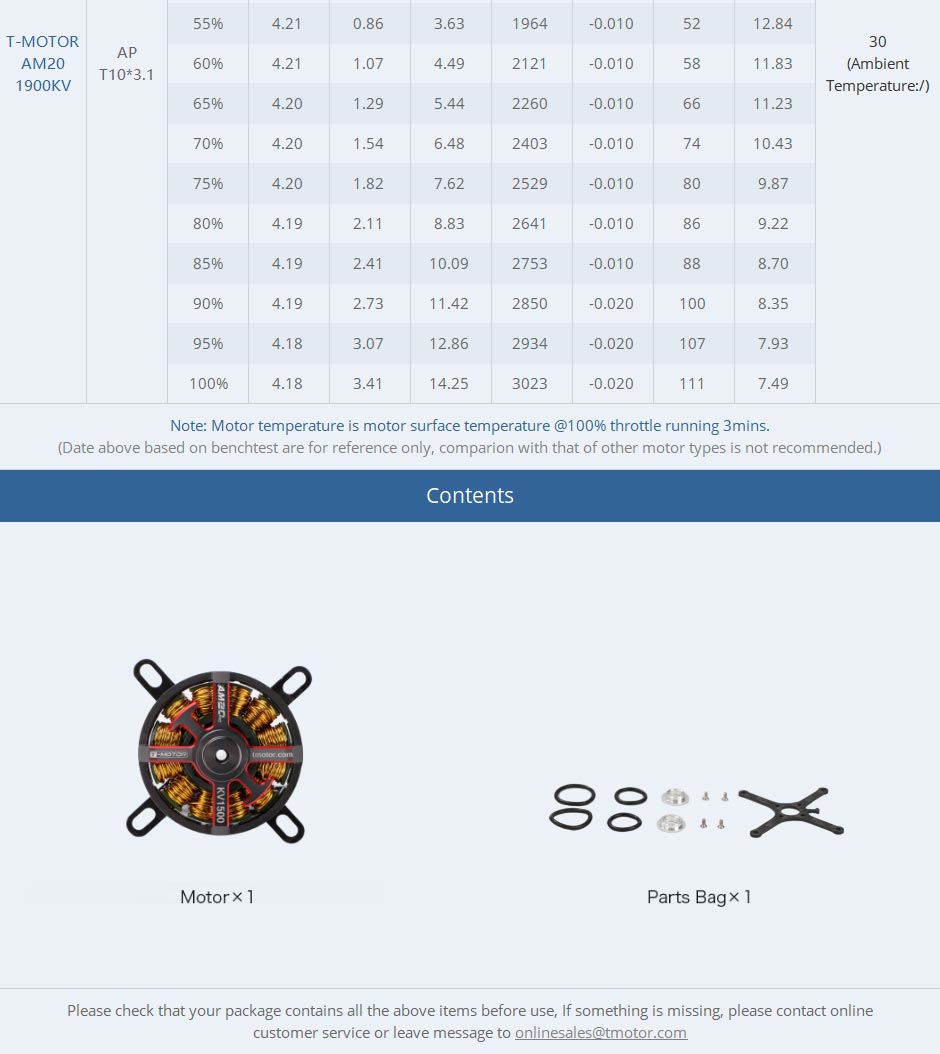

    Packing List

    Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@tmotor.com " in time.
