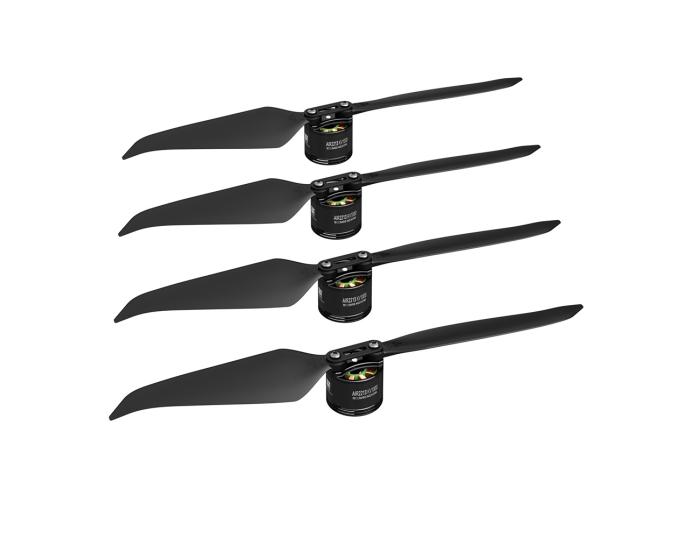

Name: Airgear 355 Combo Set Multi-Rotor UAV Power
Brand: T-Motor
SKU: T-MOTOR001284
Price: 99.99 USD
Availability: InStock

Collect

Technical Drawing


Specification

Test Data

Type	Propeller	Throttle	Voltage (V)	Thrust (g)	Torque (N*m)	Current (A)	RPM	Power (W)	Efficiency (g/W)	Operating Temperature (℃)
AIR2213-KV1000	MF9545	30%	16	179	0.02	1.01	3419	16	11.04	47℃
		35%	16	238	0.03	1.41	3890	23	10.54
		40%	16	301	0.04	1.91	4378	31	9.84
		45%	16	357	0.05	2.46	4795	39	9.04
		50%	16	431	0.06	3.16	5256	51	8.49
		55%	16	517	0.07	4.05	5731	65	7.96
		60%	16	604	0.08	5.04	6186	81	7.48
		65%	16	691	0.09	6.13	6603	98	7.04
		70%	16	778	0.10	7.30	6997	117	6.66
		75%	16	857	0.11	8.46	7346	135	6.33
		80%	16	940	0.12	9.76	7681	156	6.02
		85%	16	1020	0.13	11.13	7998	178	5.74
		90%	16	1099	0.14	12.58	8292	200	5.48
		95%	16	1180	0.15	14.13	8585	225	5.24
		100%	16	1233	0.16	15.17	8768	241	5.11
Note: Motor temperature is motor surface temperature @100% throttle running 10mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
