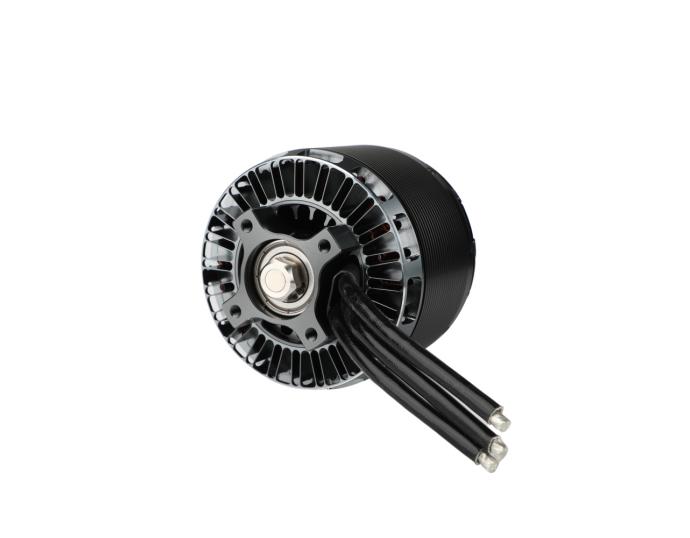

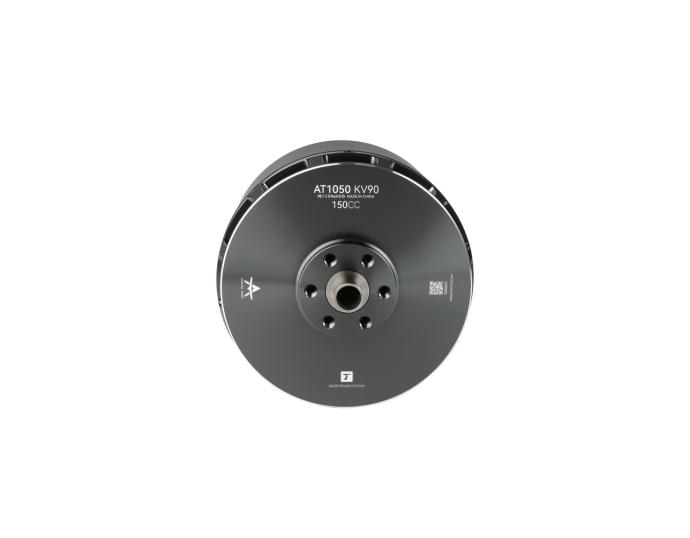

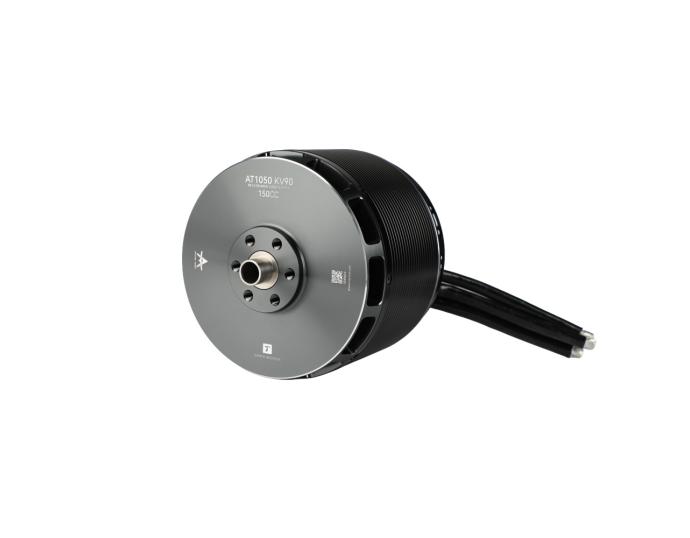

    AT1050 150CC

    679.00

    Available points: 0 Points Points reward: 679 Points

    Quantity：

    679.00

    USD200 Consumption Free Shipping by International Express (Excl. Remote Areas and Special Items).

    • Detail information
    • Specifications

    Hot Products

    AT1050

    AT1050 FIXED WING
    MOTOR

    Ideal alternative to a 150CC engine

    AT1050

    RECOMMENDATIONS

    AT1050

    AT1050

    KEEP MONITORING FOR MOTOR
    SPEED IN REAL TIME

    KEEP MONITORING
    FOR MOTOR
    SPEED IN REAL TIME

    AT1050

    Compatible with magnetic encoder
    system, ensure flight safety.

    AT1050

    RMOVABLE PROPELLAR HUB FOR MULTIPLE APPLICATIONS

    AT1050

    Adapts to the installation of fixed wing one-price propellers, folding propellers and
    other propellers. Provide convenient and safe way of locking propeller.

    Adapts to the installation of fixed wing one-price propellers, folding
    propellers and other propellers.
    Provide convenient and safe way of locking propeller.

    AT1050

    HIGH EFFICIENCY AND
    HEAT DISSIPATION
    MAKING LAST LONGER

    AT1050

    Bottom mounted heat sink.

    Technical Drawing


    Specification
    TypeAT1050Magnet Temperature Resistance Grade180℃
    Motor DimensionΦ110.6*119.8mmLead x LengthEnameled Wire 100mm
    Stator Technology150°C High Temperature-resisting CoatingsTemperature Resistance Of Enameled Wires220℃
    Configuration24N28PCoil Pressure-resistant1000V/5s
    Shaft DiameterIN:15mm
    OUT:12mm    		Dynamic Balance
    Requirements Standards    		≤30mg
    Bearings6902/6202ZZ BearingsPacking Size246*162*139mm
    KV90Idle Current (15V)5.6A
    Max. Continuous Power8000WPeak Current135A
    Rated Voltage (LiPo)24SInternal Resistance7.2mΩ
    Max Thrust36kgWeight (Incl.cable)2600g
    Test Data
    TypePropellerThrottle
    (%)    		Voltage
    (V)    		Current
    (A)    		Power
    (W)    		RPMTorque
    (N·m)    		Thrust
    (g)    		Efficiency
    (g/W)    		Operating
    Temperature
    (℃)
    AT1050
    KV90    		29*1240%88.2631.15274940194.91137405.00101

    （Ambient
    Temperature:

    28℃）
    45%88.1537.89334043125.68158914.76
    50%87.9650.67445747887.09197424.43
    55%87.7961.63541151148.22227474.20
    60%87.6466.08579152468.65239654.14
    65%87.5072.19631754069.26256264.06
    70%87.3779.596954558210.00274283.94
    75%87.2488.257698577110.78294373.82
    80%87.1296.538409593811.55311893.71
    90%86.87112.399764623812.93339043.47
    100%86.48139.7712087661115.06366663.03
    30*1040%88.3130.17266540334.69135665.0998

    （Ambient
    Temperature:

    28℃）
    45%88.2136.97326143385.42157724.84
    50%88.0249.28433747986.77196814.54
    55%87.8759.77525151177.91226604.31
    60%87.8464.14563452478.33239114.24
    65%87.8270.23616754078.91254654.13
    70%87.7777.66681655889.63273984.02
    75%87.6785.787521577310.38293143.90
    80%87.6293.258170594111.02309353.79
    90%87.42108.639496624912.33332353.50
    100%87.12134.4511712660014.37361293.08
    30*1240%88.2731.68279738255.17142935.11HOT

    （Ambient
    Temperature:

    28℃）
    45%88.1538.79341941106.03165664.85
    50%88.0446.74411543976.96191074.64
    55%87.7167.80594749779.21248084.17
    60%87.6273.17641151129.74261764.08
    65%87.5080.247022527110.45278853.97
    70%87.3788.347718544411.20297263.85
    75%87.2397.448499562012.01317253.73
    80%87.08107.119327579212.85337423.62
    90%86.84124.5810819607614.37358653.31
    100%86.40152.2713156641416.59386962.94
    Notes: Motor temperature is the bell temperature aftering running on 100% for 3 mins.
    （Based on T-MOTOR test bench(es), all data are for reference only. T-MOTOR reserves the right of final interpretation.）
