    A14-18S

    Price inquiry: onlinesales@tmotor.com

    Points reward: 0 Points

    Quantity：

    0.00

    USD200 Consumption Free Shipping by International Express (Excl. Remote Areas and Special Items).

    • Detail information
    • Specifications

    Hot Products

    A14-18S
    MODULAR Propulsion System
    A14-18S
    A14-18S
    MOTOR
    18S FOC 150A
    ESC
    MF5620P
    PROPELLER
    A14-18S Recommendations
    Load capacity(liquid)
    50L
    Agriculture Quadcopter Drone
    Load capacity(liquid)
    60L
    Agriculture Hexacopter Drone
    Take-off weight
    100~108kg
    Quadcopter
    Take-off weight
    150~162kg
    Hexacopter
    Technical Drawing


    Specification Export to Excel
    Model No.A14-18S KV49.6Tube Size50mm
    SetupA14-18S (Motor)+18S FOC 150A (ESC)+MF56P(Prop)Wire Material,
    Wire Gauge, Color    		Power Wires: 10#AWG Red & Black
    Signal Wires: 5P Teflon
    Recommended
    Battery    		18S (LiPo)Wire Length1550±10mm
    Rated Thrust25~27kgWeight4355±2%g (Incl. Wires+Prop)
    Efficiency At
    Rated Thrust    		9.1g/W (25kg)IPIPX6
    Max Thrust59kgRecommended
    Ambient Temperature    		-30~50℃
    Motor Specs
    Stator Size138*5mmKV49.6
    ESC Specs
    Throttle Range1100~1940us (Fixed)Max Voltage75V
    ProtocolDRONE CAN、UAV CAN、
    CUBE CAN    		Peak Current
    (For A Short Time)    		150A
    (OpenEnvironment
    AndTemperature≤60℃)
    Control MethodPWM/CANBECNO
    Prop Specs
    Model No.MF56P (Polymer Folding)56 Inch (1424mm)


    Test Data Export to Excel


    TypeVoltage
    (V)    		Throttle
    (%)    		Current
    (A)    		Thrust
    (gf)    		Torque
    (N·m)    		RPMMotor
    Efficiency
    (%)    		Overall
    Efficiency
    (gf/W)    		Operating
    Temperature
    (℃)
    A14-18S KV49.6
    +
    18S FOC 150A
    +
    MF56P    		69V3012.14109116.44101581.6013.00165
    (Ambient Temperature:33.8)
    3517.30140438.37114083.6011.80
    4023.871766810.55127585.6010.70
    4531.662148712.85141086.909.80
    5040.742554615.30154588.209.10
    5551.212978817.87166588.508.50
    6063.713432320.73177588.407.90
    6577.853888823.60189688.107.30
    7094.244372626.69200787.206.80
    75112.034853029.77209085.506.40
    80126.905221132.08220085.806.10
    85138.015475233.76223884.505.80
    90149.585753335.39229884.205.70
    95161.135939236.86232882.705.50
    100160.695921036.77233482.905.50
    Note: Temperature in the chart is the bell temperature after running @80% throttle for 2min.
    (Data above based on benchtest at T-MOTOR lab are for reference only.)
    Analysis Chart

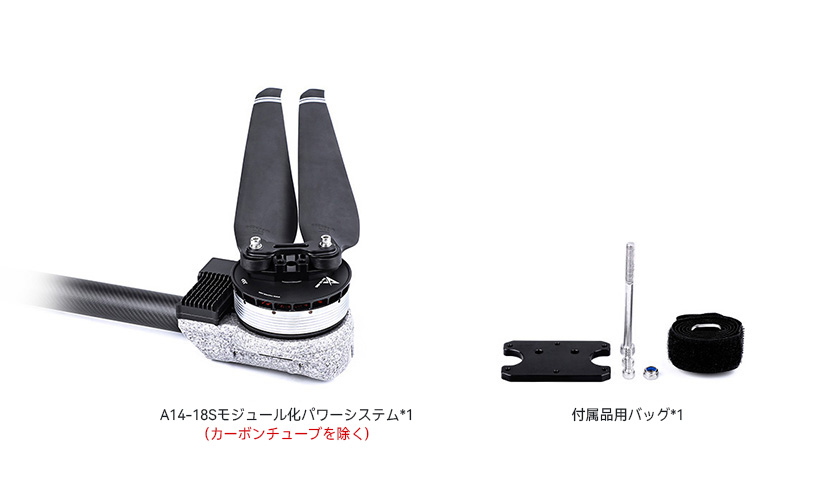

    Packing List


    Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@tmotor.com " in time.
