    U15Ⅱ Power Type Multi-rotor UAV Motor KV80

    689.90

    Available points: 400 Points Points reward: 689 Points

    • For freight transport and manned uav programs
    • Safe，stable，reliable

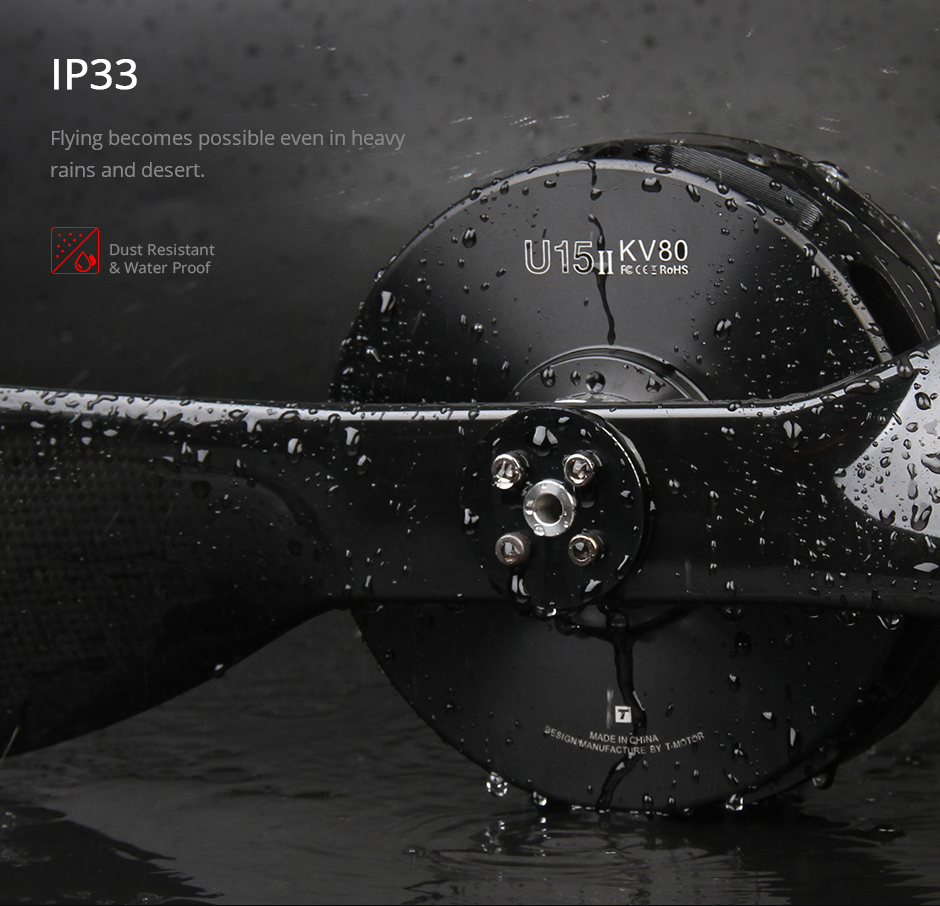

    • Higher waterproof and dust-resistance level
    Parameter：
    Quantity：

    689.90

    USD200 Consumption Free Shipping by International Express (Excl. Remote Areas and Special Items).

    Relevant Products

    • Detail information
    • Specifications

    Hot Products

    About T-MOTOR U15Ⅱ Power Type Multi-rotor UAV Motor KV80


    The T-MOTOR U15 80KV motor is designed for heavy load lifting, supporting up to 40kg. Ideal for commercial, agricultural UAVs, and the film industry.

    Custom-wound for 40KV at 24s (100V) operation, it pairs with the T-Motor Alpha 60A HV ESC using custom firmware for optimal performance.


    U15ⅡHightlights:


    1.Max. thrust ：36kg

    2.MTBF：About 1000hours

    3.Features：Industrial Grade, Waterproof, dustproof, low noise, large bearings

    4.Industrial grade, dust proof, water proof.


    Application Areas：


    Aerial photography, Filming, Delivery service and Agriculture applications.


    Packing List Includes:


    1x T-MOTOR U15Ⅱ Motor KV80

    1x Hardware pack


    Matching Guide:


    T-MOTOR G40*13.1" prop


    If you have any questions or inquires, please contact us:  onlinesales@tmotor.com


    "U Power" motors (from U-series) are aimed for high end UAVs requiring big thrust. This kind of UAVs are usually for professional aerial photography, filming, delivery service and agriculture applications.

    Handmade high-temperature enameled wire has excellent fire protection, industrial grade waterproofing, anti-aging and other properties, which greatly extends the service life of the motor. The precision winding ensures the tightness of coil and slot.It helps reduce the copperloss while improve the utilization.

    Adoption of imported high-quality bearing ，enables motor run more smoothly and longer with lower noise.


    Technical Drawing


    Specification
    Test ItemU15ⅡKV80Internal Resistance17mΩ
    Configuration36N42PShaft Diameter20mm
    Motor DimensionsΦ 147.5×55 mmLeadEnameled Wire
    Cable Length100mmWeight Including Cables1740g
    Weight Excluding Cables/No.of Cells(Lipo)12-24S
    Idle Current@10v3.8AMax Continuous Power 180S8580W
    Max Continuous Current 180S143A

    Test ItemU15ⅡKV100Internal Resistance12mΩ
    Configuration36N42PShaft Diameter20mm
    Motor DimensionsΦ 147.5×55 mmLeadEnameled Wire
    Cable Length100mmWeight Including Cables1740g
    Weight Excluding Cables/No.of Cells(Lipo)12-24S
    Idle Current@10v4.5AMax Continuous Power 180S9942W
    Max Continuous Current 180S167A


    Test Data
    Item No.Voltage
    (V)    		PropThrottleCurrent
    (A)    		Power
    (W)    		Thrust
    (G)    		RPMEfficiency
    (G/W)

    Torque

    (N*m)

    		Operating
    Temperature
    (℃)

    U15Ⅱ

    KV80

    		50

    T-MOTOR

    G40x13.1

    CF

    		50%19.9995890018438.94465
    55%25.912951080020238.345
    60%32.216101270021807.895.9
    65%38.619301460023137.566.9
    75%56.228101890026156.739.1
    85%76.938452310028766.0111.2
    100%110.455202890031935.2414
    6050%24.914941220020798.175.8110
    55%32.219321460023167.566.9
    60%39.723821680024807.058.1
    65%47.928741910026336.659.2
    75%74.244522520029945.6612.1
    85%98.358982980032485.0514.5
    100%14385803650035464.2518
    Notes:The test condition of temperature is motor surface temperature at 100% throttle while the motor run 1min.

    U15Ⅱ

    KV100

    		60

    T-MOTOR

    G36×11.5

    CF

    		50%27.616561200025957.255.197
    55%40.224121530029336.346.6
    60%51.330781830031605.957.9
    65%6237202070033455.569
    75%86.151662560037004.9611.4
    85%115.169063040039854.4013.9
    100%165.799423700043283.7217
    50

    T-MOTOR

    G40x13.1

    CF

    		50%31.315651280021418.186.1112
    55%4321501550023707.217.6
    60%52.626301780025156.778.6
    65%60.330152030026286.739.6
    75%92.946452530029865.4512.2
    85%122.361152980031984.8714.7
    100%17185503550034734.1517.8
    Notes:The test condition of temperature is motor surface temperature at 100% throttle while the motor run 1min.
    Packing List


    Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@tmotor.com " in time.
