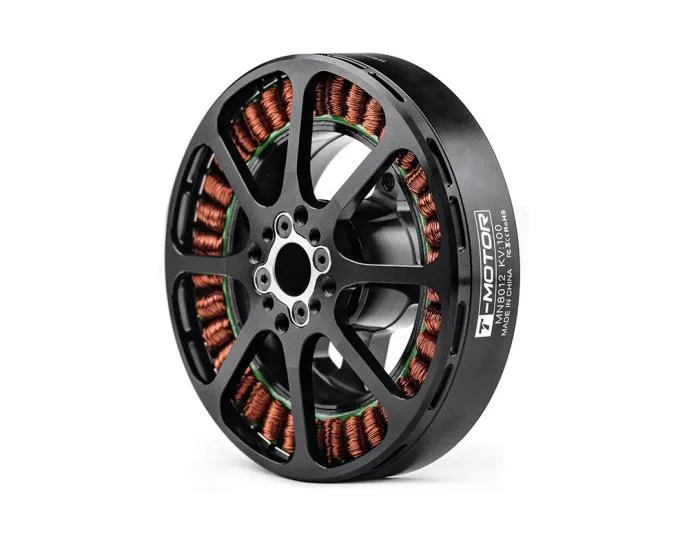

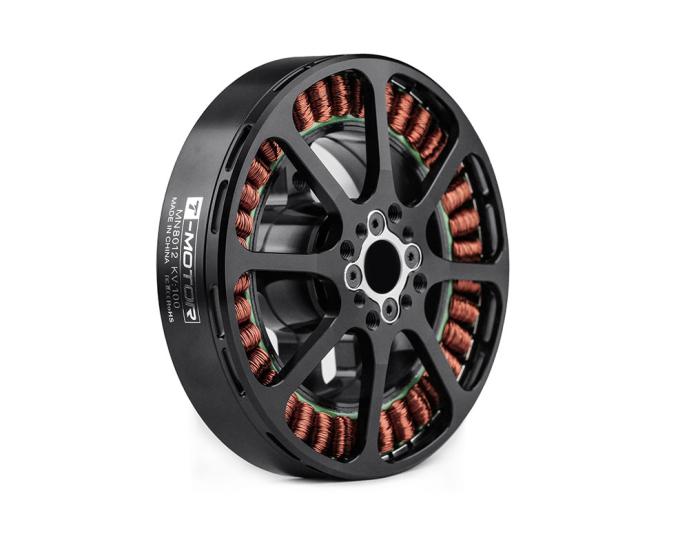

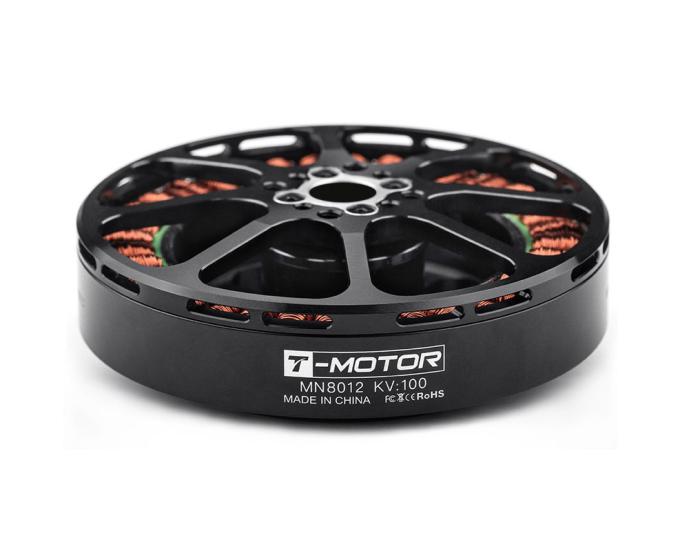

    MN8012 Antigravity Type 12S UAV Motor KV100

    269.90

    Available points: 13000 Points Points reward: 269 Points

    • Ultra light, high efficiency
    • Max.Thrust:11.8kg, Motor Weight:351g, Power Ratio:34
    Quantity：

    269.90

    USD200 Consumption Free Shipping by International Express (Excl. Remote Areas and Special Items).

    Relevant Products

    • Detail information
    • Specifications

    Hot Products


    Technical Drawing

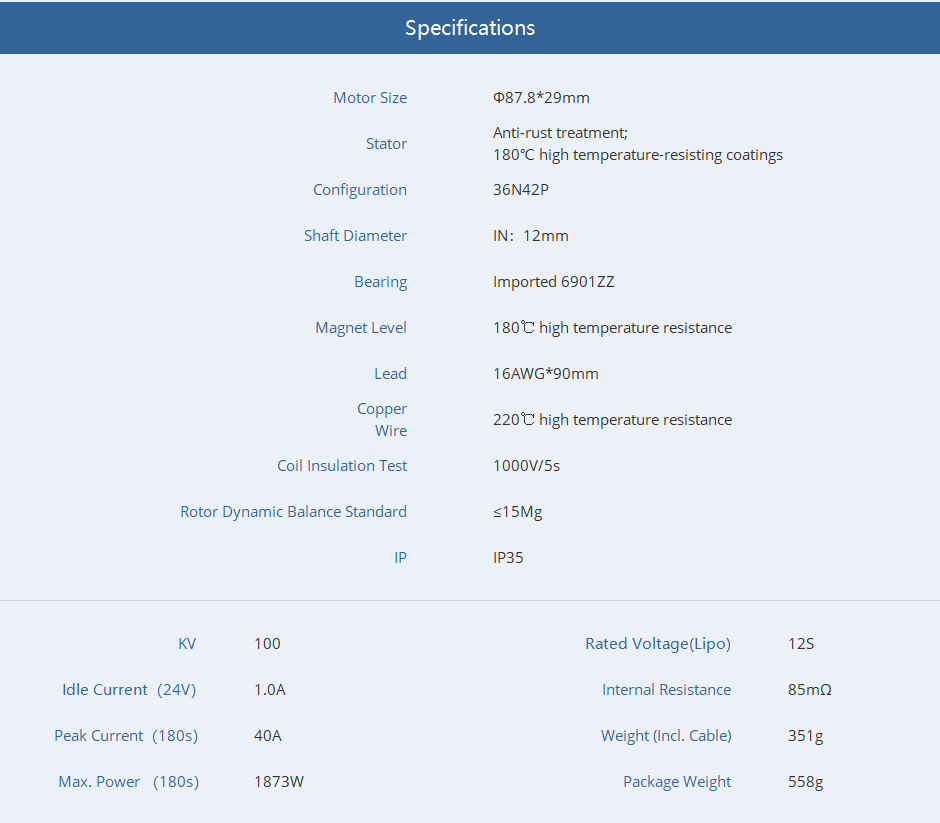

    Specification
    Motor SizeΦ87.8*29mmMagnet Level180℃high temperature resistance
    StatorAnti-rust treatment;
    180℃high temperature-resisting coatings    		Lead16AWG*90mm
    Configuration36N42PCopper Wire220℃ high temperature resistance
    Shaft DiameterIN：12mmCoil Insulation Test1000V/5s
    BearingImported 6901ZZRotor Dynamic Balance Standard≤15Mg
    KV100Rated Voltage(Lipo)12S
    Idle Current（24V）1.0AInternal Resistance85mΩ
    Peak Current（180s）40AWeight (Incl. Cable)351g
    Max. Power （180s）1873WPackage Weight558g
    Test Data
    TypePropellerThrottleVoltage
    (V)    		Thrust
    (g)    		Torque
    (N*m)    		Current
    (A)    		RPMPower
    (W)    		Efficiency
    (g/W)

    Operating

    Temperature

    (℃)
    MN8012
    KV100

    T-MOTOR

    G28*9.2”

    		40%47.7616740.552.63163212513.3445℃
    45%47.7420760.683.51181116712.41
    50%47.7125650.834.54200321711.85
    55%47.6831941.036.12221829210.96
    60%47.6238101.227.85241237410.19
    65%47.5944331.399.6325944589.68
    70%47.5451321.6111.8527815639.11
    75%47.4958721.8414.4129686858.58
    80%47.4465132.0316.7831257968.18
    90%47.3379362.4722.52343110667.45
    100%47.1995462.9729.64375113996.83

    T-MOTOR

    G29*9.5”

    		40%47.7519870.683.06161914613.5956℃
    45%47.7124870.844.19180220012.45
    50%47.6931351.045.75200827411.43
    55%47.6237881.267.46220335610.66
    60%47.5844471.489.4423844499.90
    65%47.5351691.7111.7425615589.27
    70%47.4758921.9514.1927306748.75
    75%47.4266792.2017.0429098088.27
    80%47.3673802.4319.8530529407.85
    90%47.1189252.9326.39333612437.18
    100%46.93105823.4734.05361215986.62

    T-MOTOR

    G30*10.5”

    		40%47.7022850.803.61158117213.2774℃
    45%47.6428821.004.92177423412.30
    50%47.5236361.276.83198432411.21
    55%47.4343701.528.88216642110.38
    60%47.4051091.7711.1423395289.68
    65%47.3058852.0413.7225016499.07
    70%47.2166632.3016.5826547838.51
    75%47.2075362.5919.9628139428.00
    80%47.0883442.8723.26295410957.62
    90%47.0199523.4330.62322314396.92
    100%46.81118264.0640.02348318736.31
    Note: Motor temperature is motor surface temperature at 100% throttle running 10mins.
    (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)

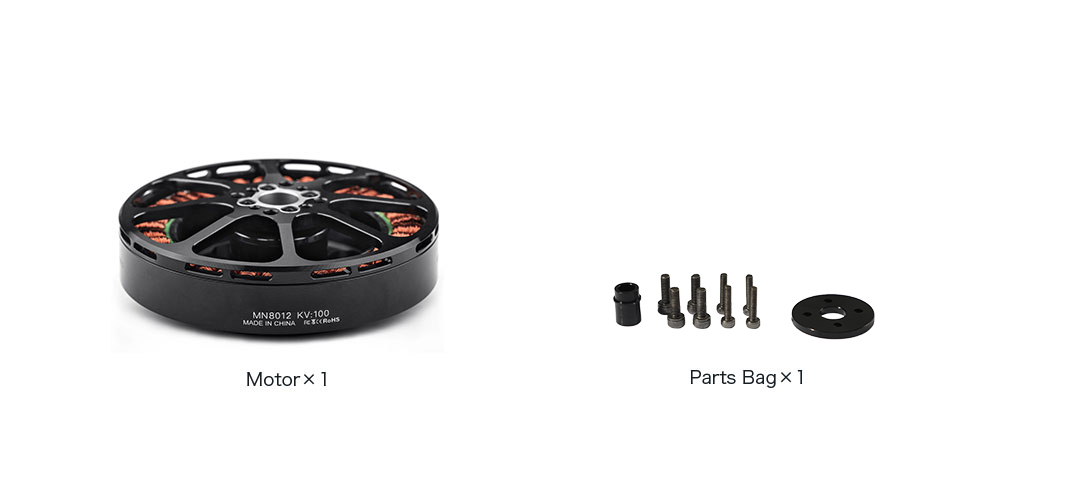

    Packing List


    Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@tmotor.com " in time.
