    V200A 24S

    Price inquiry: onlinesales@tmotor.com

    Points reward: 0 Points

    Quantity：

    0.00

    USD200 Consumption Free Shipping by International Express (Excl. Remote Areas and Special Items).

    • Detail information
    • Specifications

    Hot Products

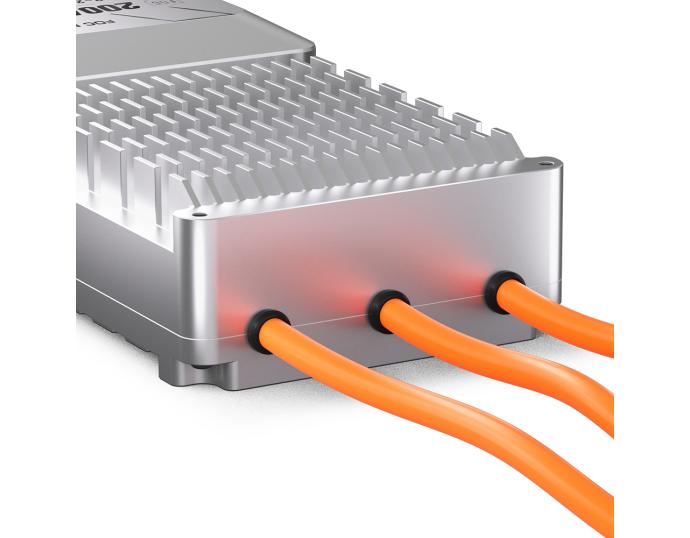

    V200A 24S
    V SERIES ESC
    V200A 24S
    THE ADVANCED EDITION OF FOC ESCS
    Fast
    Response
    Efficient
    Driving
    Accurate
    Control
    Low-Noise
    Operation
    Fast
    Response
    Efficient
    Driving
    Accurate
    Control
    Low-Noise
    Operation

    Recommendation

    V13L
    Motor
    V200A 24S
    ESC
    G38
    Propeller

    Specification

    12~24S (Max 105V)

    Support Voltage

    100A

    Con. Current

    200A

    Peak Current

    580g(Excl. Cable)/748g

    ESC Weight

    146*74*39.5mm

    ESC Size

    Technical Drawing


    V200A 24S-en.png
    Specification
    ModelNo.V200A24SPowerCableSiliconeWire-Red/
    Black-10AWG-1200mm
    Size146*74*39.5mm(L*W*H)SignalCableShieldedCables-Black-
    OD4.2-5C-500mm-JP-
    3P*2-BlackBlankWhite-
    GreenYellowGray
    Weight(Incl.Cables)748gEncoderCablesShieldedCables-Black-
    24AWG-5C-460mm-
    M6AviationConnector
    MotorCableSiliconeWire-Orange-
    10AWG-250mm    		ProtocolPWM/CAN
    SupportVoltage12~24S(Max105V)BECNO
    ContinuousCurrent100AThrottlePos.Range1040~1940
    PeakCurrent(<10s)200AThrottleRefresh
    Frequency    		50~500Hz
    StandbyConsumption≤50mA@100VThrottle
    ResponseSpeed    		300ms

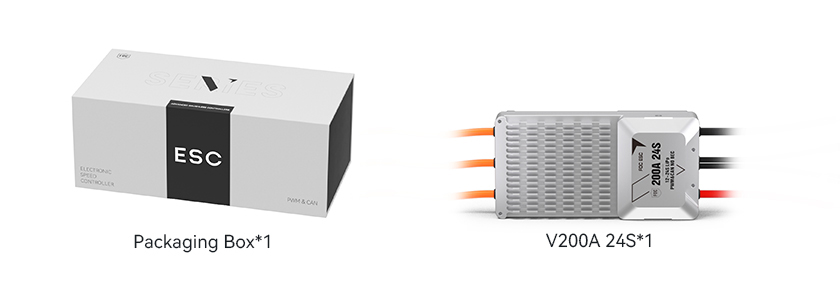

    Packing List
    V200A 24S-pack-en.jpg
    Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@tmotor.com " in time.
