    U5 Power Type UAV Motor KV400

    125.90

    Available points: 6000 Points Points reward: 125 Points

    • Water-resistant & Dust-resistant
    • Precision Bearing
    KV：
    • KV400
    Quantity：

    125.90

    USD200 Consumption Free Shipping by International Express (Excl. Remote Areas and Special Items).

    Relevant Products

    • Detail information
    • Specifications

    Hot Products

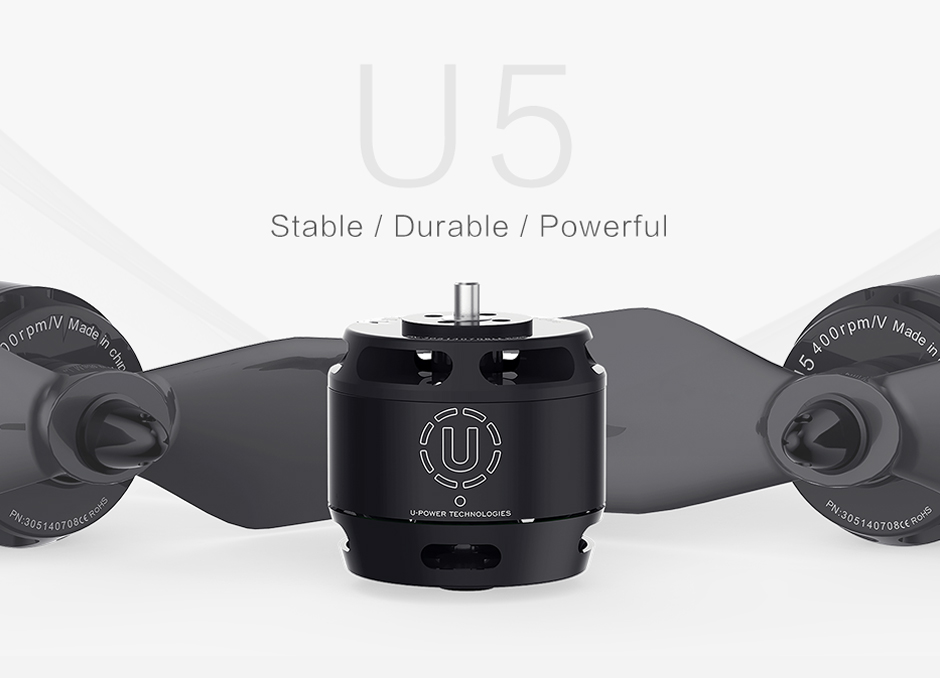

    "TMOTOR U5 KV400" (from U-series) are aimed for high end UAVs requiring big thrust.
    This kind of UAVs are usually for professional aerial photography, filming, delivery service and agriculture applications.

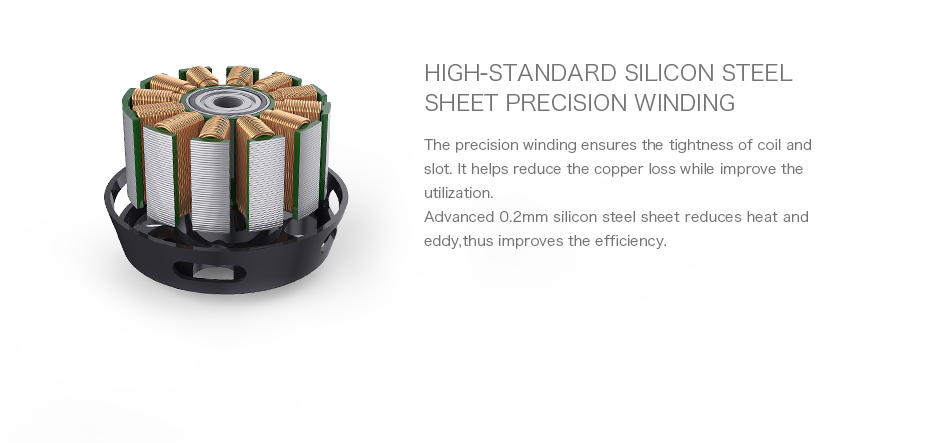

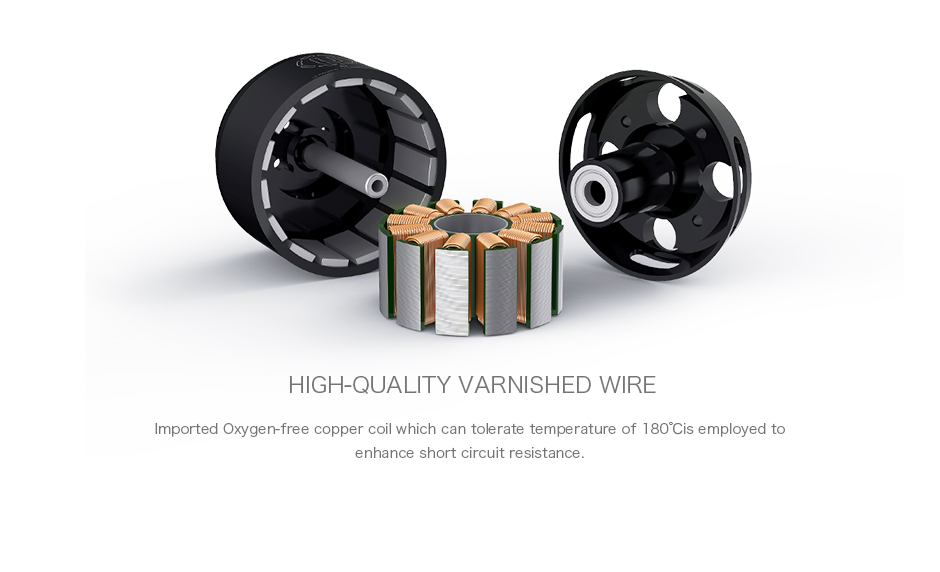

    Handmade high-temperature enameled wire has excellent fire protection, industrial grade waterproofing, anti-aging and other properties, which greatly extends the service life of the motor. The precision winding ensures the tightness of coil and slot.It helps reduce the copperloss while improve the utilization.
    Adoption of imported high-quality bearing ，enables motor run more smoothly and longer with lower noise.

    1. Max. thrust ：2.85kg

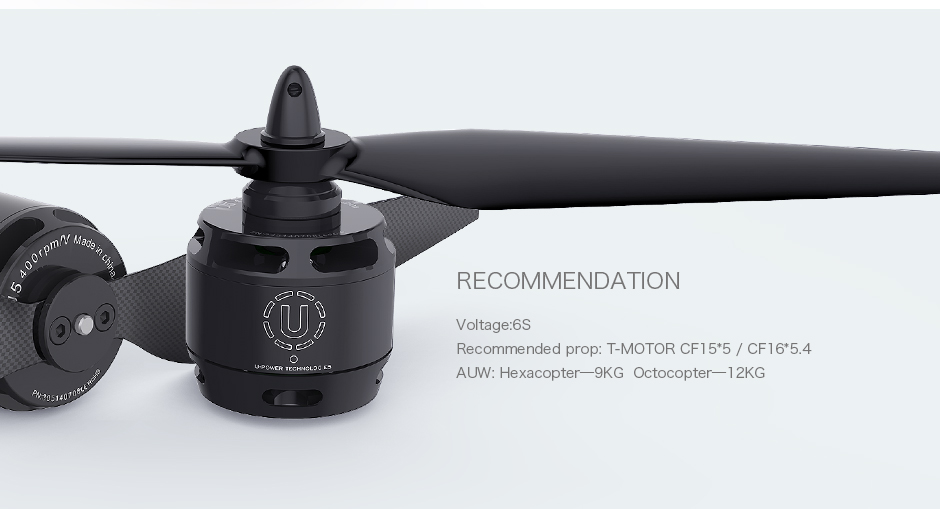

    2. Recommendation： T-MOTOR CF15*5/CF16*5.4" prop
    3. MTBF：About 1600hours
    4. Features：Industrial Grade, Waterproof, dustproof, low noise, large bearings

    If you have any questions or inquires, please contact us: onlinesales@tmotor.com




    Technical Drawing


    Specification
    InternalResistance116mQConfguration12N14P
    Shaft Diameter5mmMotor DimensionsΦ42.5×37.5mm
    AWG16#Cable Length600mm
    WeightIncluding Cables195gWeight Excluding Cables156g
    No.ofCells(Lipo)3-8Sldle Current@10v0.3A
    Max Continuous Power180S850WMax Continuous Current180S30A
    Test Data
    Item No

    Voltage
    (V)

    		PropThrottle

    Current
    (A)

    Power
    (W)

    Thrust
    (G)

    		RPM

    Eficiency

    (G/W)

    Operating
    Temperature

    (°C)

    U5

    KV400

    		22.2

    T-MOTOR
    14*4.8CF

    		50%3.475.48800430010.645
    65%6.3139.86120054008.58
    75%8.5188.7150059007.95
    85%11.4253.08182065007.19
    100%13.7304.14203069506.67

    T-MOTOR
    15*5CF

    		50%4.395.46990420010.3750
    65%7.9175.38149052008.5
    75%11.6257.52190057007.38
    85%14.5321.9222062006.9
    100%17.2381.84248065006.49

    T-MOTOR
    16*5.4CF

    		50%5.2115.441200405010.459
    65%9.4208.68175048508.39
    75%13288.6212054007.35
    85%16.9375.18265058507.06
    100%20444285062506.42
    Notes:The test condition of temperature is motor surfacetemperature at 100%throttle while the motor run 10min.
