    MN7005 Antigravity Type 6-12S UAV Motor KV115

    219.99

    Available points: 11000 Points Points reward: 219 Points

    • Imported German 7075 aviation aluminum
    • Ultra Lightweight 188g only
    • Anti-high temperature curved magnet with precise
    • Motor performance increase by 5%
    • ATA01123 prop adapter for P22inch prop
    • MN7005 is for thrust requireme
    Parameter：
    Quantity：

    219.99

    USD200 Consumption Free Shipping by International Express (Excl. Remote Areas and Special Items).

    Relevant Products

    • Detail information
    • Specifications

    Hot Products

    Technical Drawing

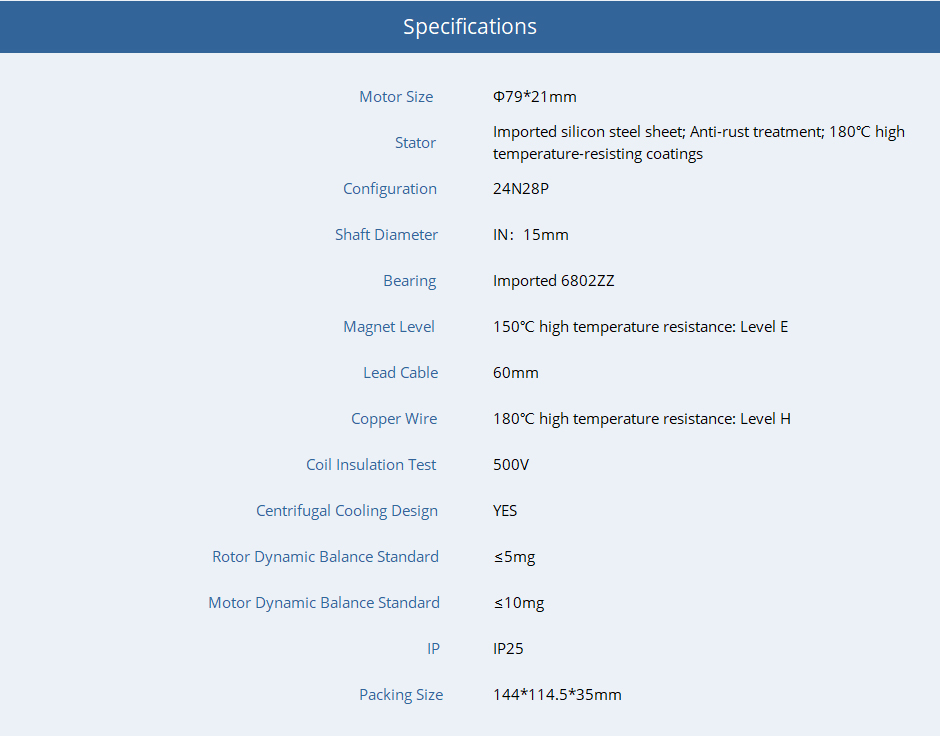

    Specification
    Motor SizeΦ79*21mmCopper Wire180℃high temperature resistance: Level H
    StatorImported silicon steel sheet; Anti-rust treatment; 180℃high temperature-resisting coatingsCoil Insulation Test500V
    Configuration24N28PCentrifugal Cooling DesignYES
    Shaft DiameterIN：15mmRotor Dynamic Balance Standard≤15mg
    BearingImported 6802ZZMotor Dynamic Balance Standard≤10mg
    Magnet Level150℃high temperature resistance: Level EPacking Size144*114.5*35mm
    Lead Cable60mm

    KV115Internal Resistance288mΩ
    Idle Current（22V）0.4ARated Voltage(Lipo)6-12S
    Peak Current（180s）15AMotor Weight
    (Incl. Cable)    		188g
    Max. Power（180s）750WPackage Weight320g
    KV230Internal Resistance71mΩ
    Idle Current（22V）0.9ARated Voltage(Lipo)6S
    Peak Current（180s）28AMotor Weight
    (Incl. Cable)    		188g
    Max. Power（180s）700WPackage Weight320g
    Test Data
    TypeVoltage
    (V)    		PropellerThrottleThrust
    (g)    		Torque
    (N*m)    		Current
    (A)    		RPMPower
    (W)    		Efficiency
    (g/W)    		Operating
    Temperature
    (℃)
    MN7005
    KV115    		48T-MOTOR

    P24*7.2”

    CF

    		40%13220.382.0219729713.6466

    (Ambient

    Temperature:

    20℃)

    42%14080.412.19203210513.4
    44%15130.442.45214211712.89
    46%16060.462.64220712612.7
    48%17070.482.88228413812.4
    50%18070.513.13236415012.05
    52%19470.553.51246016811.6
    54%20680.583.82254218311.3
    56%21640.64.05260619411.16
    58%22800.644.39269921010.87
    60%23980.674.73277822610.6
    62%25070.75.07285524310.33
    64%26270.735.45292626010.08
    66%27560.765.8229992789.91
    68%28880.796.2630752999.65
    70%30140.836.7131363209.4
    75%33460.917.9033433778.87
    80%36050.988.8334744218.56
    90%42241.1411.2937585377.86
    100%47831.3214.0740386697.15
    MN7005
    KV230    		24T-MOTOR

    P24*7.2”

    CF

    		40%14070.394.40202310513.4464

    (Ambient

    Temperature:

    21℃)

    42%15010.424.79210411413.17
    44%15920.435.18216512312.92
    46%16980.465.71226613612.51
    48%18370.496.43234715212.04
    50%19510.527.04245616711.68
    52%20630.547.65253118111.39
    54%21530.578.18259619411.11
    56%22610.68.83268420910.83
    58%23780.639.53276222510.56
    60%24910.6510.23283524110.31
    62%26050.6910.96290625910.07
    64%27080.7211.6029672739.9
    66%28410.7512.6430502979.55
    68%29480.7813.5031203179.29
    70%30600.8114.3131823369.1
    75%33440.8916.5333353878.64
    80%36320.9618.7934794388.28
    90%41841.1223.7737635517.59
    100%46911.2829.1540166706.99
    Note: Motor temperature is motor surface temperature @100% throttle running 10mins.
    (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
