    A10
    MODULAR
    Propulsion System
    For 16L quadcopter or 25L hexacopter agricultural drones
    A10
    A10
    MOTOR
    14S FOC 100A
    ESC
    MF3424P
    PROPELLER
    A10 Recommendations
    Load capacity(liquid)
    16L
    Agriculture Quadcopter Drone
    Load capacity(liquid)
    25L
    Agriculture Hexacopter Drone
    Take-off weight
    28~44kg
    Quadcopter
    Take-off weight
    42~66kg
    Hexacopter
    A10
    Silicone protective cover with two colors optional
    Fluorescent Orange
    Industrial Gray
    Technical Drawing


    Specification
    Model No.A10 KV120Tube size40mm
    SetupA10 (Motor)+14S FOC 100A (ESC)+
    MF3424P (Prop)    		Wire material,
    wire gauge, color    		Power wires：12#AWG red & black
    Signal wires: 5P Teflon
    Recommended battery12~14S (LiPo)Wire length1230±5mm
    Rated thrust7~11kgWeight1520±2%g (incl. Wires+prop)
    Efficiency at rated thrust8.48g/W (8kg)IPIPX6
    Max. thrust22.7kgRecommended ambient temperature-20～55℃
    Motor specs.
    Stator size99*15mmKV120
    ESC specs.
    Throttle range1100~1940us (fixed)Max. voltage61V
    ProtocolDRONE CAN、 UAV CAN、
    CUBE CAN    		Peak current
    (for a short time)    		100A
    (Open environment
    and temperature≤60℃)
    Control methodPWM/CANBECNO
    Prop specs
    Model No.MF3424P (Polymer Folding)Length34 inch (874mm)
    Test Data
    TypeVoltage
    (V)    		ThrottleCurrent
    (A)    		Thrust
    (g)    		Torque
    (N·m)    		RPMMotor
    Efficiency
    (%)    		Overall
    Efficiency
    (gf/W)    		Operating
    Temperature
    (℃)
    A10 KV120
    +
    14S FOC 100A
    +
    MF3424P    		5430%4.5831091.40144985.8812.57135
    (Ambient Temperature:
    27.8)
    35%6.8341721.83166086.1611.30
    40%9.8153982.33187586.2610.18
    45%13.4067092.86208686.219.26
    50%17.7681513.42230285.798.48
    55%22.9596274.01251484.967.75
    60%29.15112874.65272884.237.16
    65%36.27129635.31294083.296.60
    70%44.57147866.00315582.196.13
    75%53.48164806.64336780.935.70
    80%63.32181807.27358179.685.31
    85%73.80199407.86379478.355.00
    90%82.07210718.21394776.604.80
    95%88.87219878.50409376.004.59
    100%94.27227508.70423675.874.47

    Note: Temperature in the chart is the bell temperature after running @80% throttle for 2min.

    (Data above based on benchtest at T-MOTOR lab are for reference only.)

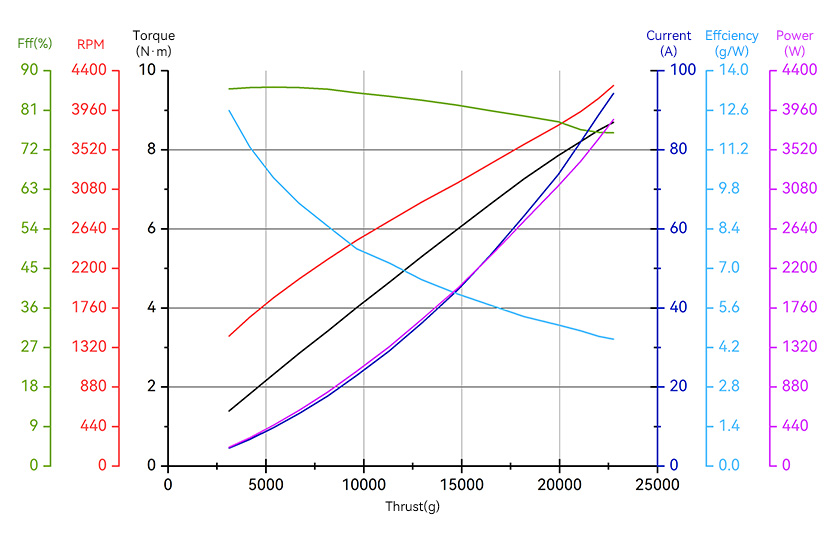

    Analysis Chart

    Load curve

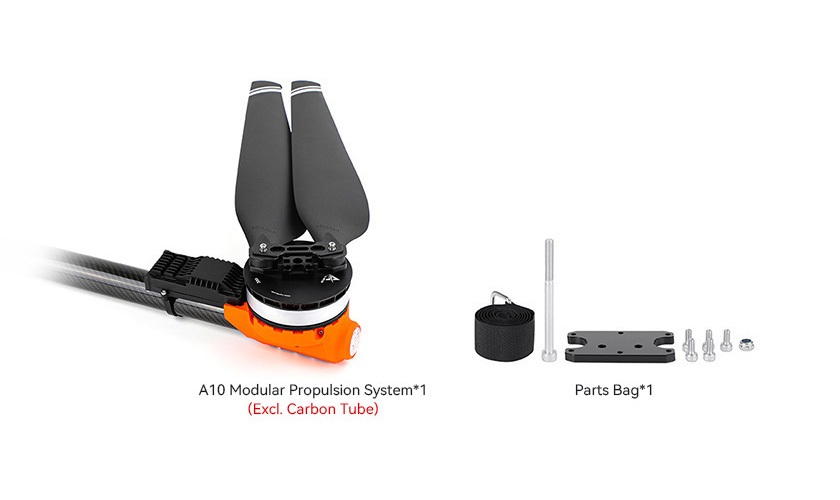

    Packing List


    Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@tmotor.com " in time.
