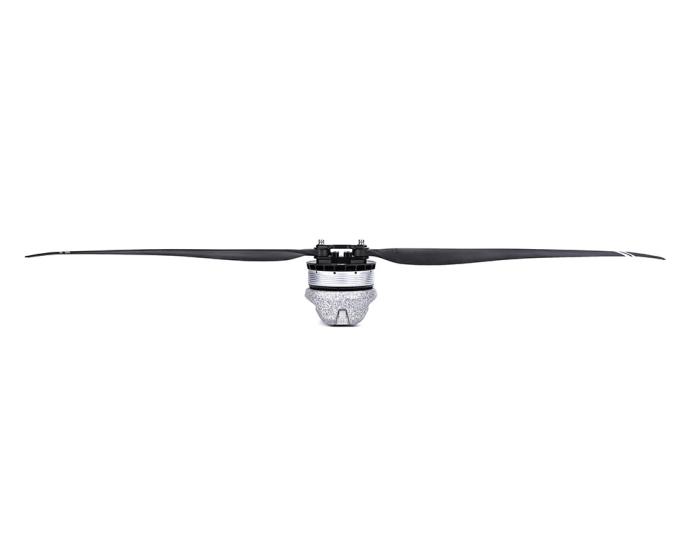

| Model No. | A14-14S KV58 | Tube size | 50mm |
| Setup | A14-14S (Motor)+14S FOC 200A (ESC)+ MF56P (Prop) | Wire material, wire gauge, color | Power wires：10#AWG red & black Signal wires: 5P Teflon |
| Recommended battery | 12~14S (LiPo) | Wire length | 1200±5mm |
| Rated thrust | 25~27kg | Weight | 4050±2%g(incl. Wires+prop) |
| Efficiency at rated thrust | 9.0g/W (25kg) | IP | IPX6 |
| Max. thrust | 56kg | Recommended ambient temperature | -20～55℃ |
| Motor specs. | |||
| Stator size | 138*25mm | KV | 65 |
| ESC specs. | |||
| Throttle range | 1100~1940us (fixed)) | Max. voltage | 60V |
| Protocol | DRONE CAN、 UAV CAN、 CUBE CAN | Peak current (for a short time) | 190A (Open environment and temperature≤60℃) |
| Control method | PWM/CAN | BEC | NO |
| Prop specs | |||
| Model No. | MF56P (Polymer Folding) | Length | 56 inch (1400mm) |
| Type | Voltage (V) | Throttle | Current (A) | Thrust (g) | Torque (N·m) | RPM | Motor Efficiency (%) | Overall Efficiency (gf/W) | Operating Temperature (℃) | |
| A14-14S KV58 + 14S FOC 200A + MF56P | 54 | 30% | 13.20 | 9287 | 6.33 | 981 | 91.30 | 13.00 | 180 (Ambient Temperature: 31.8) | |
| 35% | 18.46 | 11970 | 7.98 | 1125 | 94.40 | 12.00 | ||||
| 40% | 24.64 | 14881 | 9.66 | 1245 | 94.60 | 11.20 | ||||
| 45% | 32.10 | 17937 | 11.53 | 1339 | 93.40 | 10.40 | ||||
| 50% | 41.20 | 21429 | 13.61 | 1440 | 92.50 | 9.70 | ||||
| 55% | 51.14 | 24876 | 15.64 | 1560 | 93.10 | 9.10 | ||||
| 60% | 62.69 | 28484 | 17.88 | 1650 | 92.00 | 8.50 | ||||
| 65% | 75.67 | 32314 | 20.20 | 1773 | 92.70 | 8.00 | ||||
| 70% | 90.84 | 36381 | 22.74 | 1836 | 90.40 | 7.50 | ||||
| 75% | 107.33 | 40238 | 25.22 | 1926 | 89.40 | 7.10 | ||||
| 80% | 125.11 | 44142 | 27.68 | 2016 | 88.30 | 6.70 | ||||
| 85% | 144.85 | 48031 | 30.15 | 2105 | 87.00 | 6.30 | ||||
| 90% | 167.44 | 52178 | 32.63 | 2196 | 85.50 | 5.90 | ||||
| 95% | 198.45 | 56211 | 35.37 | 2256 | 80.60 | 5.40 | ||||
| 100% | 202.28 | 56560 | 35.70 | 2310 | 82.00 | 5.40 | ||||
Note: Temperature in the chart is the bell temperature after running @80% throttle for 2min. (Data above based on benchtest at T-MOTOR lab are for reference only.) | ||||||||||
Load curve
