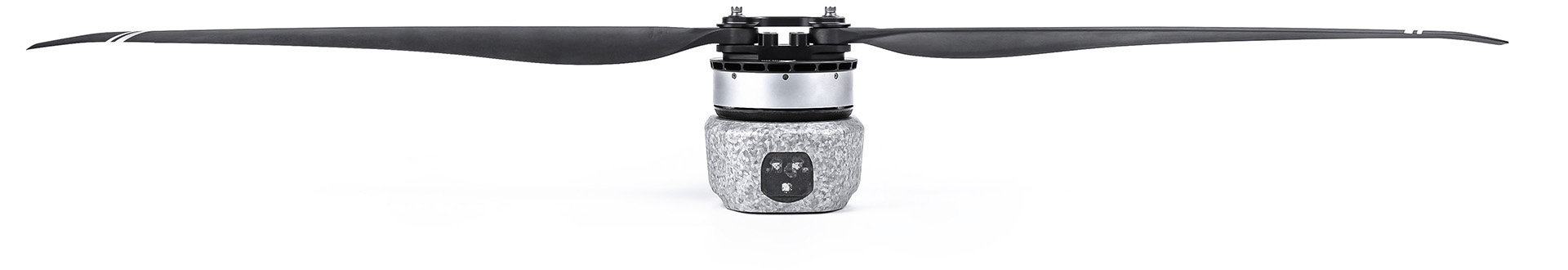

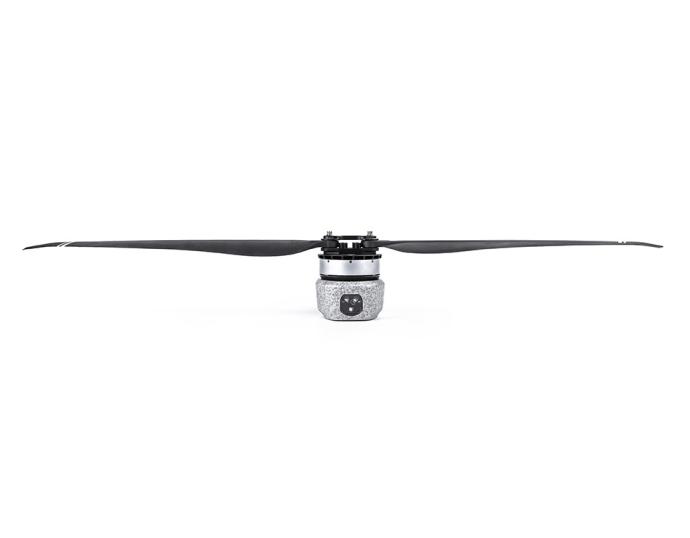

| Model No. | A12XL KV48 | Tube size | 50mm |
| Setup | A12XL-24S (Motor)+24S FOC 120A (ESC)+ MF4918P (Prop) | Wire material, wire gauge, color | Power wires: 10#AWG red & black Signal wires: 5P Teflon |
| Recommended battery | 20~24S (LiPo) | Wire length | 1700±5mm |
| Rated thrust | 20~25kg | Weight | 2800±2%g (incl. Wires+prop) |
| Efficiency at rated thrust | 8.6g/W (25kg) | IP | IPX6 |
| Max. thrust | 45kg | Recommended ambient temperature | -20～55℃ |
| Motor specs. | |||
| Stator size | 111*22mm | KV | 48 |
| ESC specs. | |||
| Throttle range | 1100~1800us | Max. voltage | 100V |
| Protocol | DRONE CAN、 UAV CAN、 CUBE CAN | Peak current (for a short time) | 120A (Openenvironment andtemperature≤60℃) |
| Control method | PWM/CAN | BEC | NO |
| Prop specs | |||
| Model No. | MF4918P (Polymer Folding) | Length | 49 inch (1244.6mm) |
| Type | Voltage (V) | Throttle (%) | Current (A) | Thrust (g) | Torque (N·m) | RPM | Motor Efficiency (%) | Overall Efficiency (gf/W) | Operating Temperature (℃) | |
| A12XL KV48 + 24S FOC 120A + MF4918P | 92 | 30% | 5.45 | 6896 | 3.92 | 1074 | 87.60 | 13.70 | 180 (Ambient Temperature: 17℃) | |
| 35% | 8.31 | 9434 | 5.27 | 1254 | 90.00 | 12.30 | ||||
| 40% | 12.03 | 12289 | 6.81 | 1413 | 91.20 | 11.10 | ||||
| 45% | 16.38 | 15290 | 8.43 | 1575 | 92.70 | 10.20 | ||||
| 50% | 21.72 | 18404 | 10.14 | 1699 | 91.00 | 9.30 | ||||
| 55% | 27.56 | 21572 | 11.89 | 1860 | 92.20 | 8.60 | ||||
| 60% | 33.85 | 24533 | 13.54 | 1980 | 91.10 | 8.00 | ||||
| 65% | 40.43 | 27415 | 15.17 | 2130 | 92.20 | 7.50 | ||||
| 70% | 48.30 | 30745 | 16.93 | 2250 | 91.10 | 7.00 | ||||
| 75% | 56.02 | 33744 | 18.56 | 2340 | 89.70 | 6.70 | ||||
| 80% | 65.37 | 37272 | 20.42 | 2433 | 87.60 | 6.30 | ||||
| 85% | 73.25 | 39767 | 21.76 | 2523 | 86.20 | 6.00 | ||||
| 90% | 79.92 | 41616 | 22.87 | 2580 | 84.60 | 5.70 | ||||
| 95% | 86.29 | 43493 | 23.85 | 2640 | 83.10 | 5.50 | ||||
| 100% | 92.88 | 45198 | 24.87 | 2700 | 81.50 | 5.20 | ||||
| Note:Temperatureinthechartisthebelltemperatureafterrunning@80%throttlefor2min. (DataabovebasedonbenchtestatT-MOTORlabareforreferenceonly.) | ||||||||||

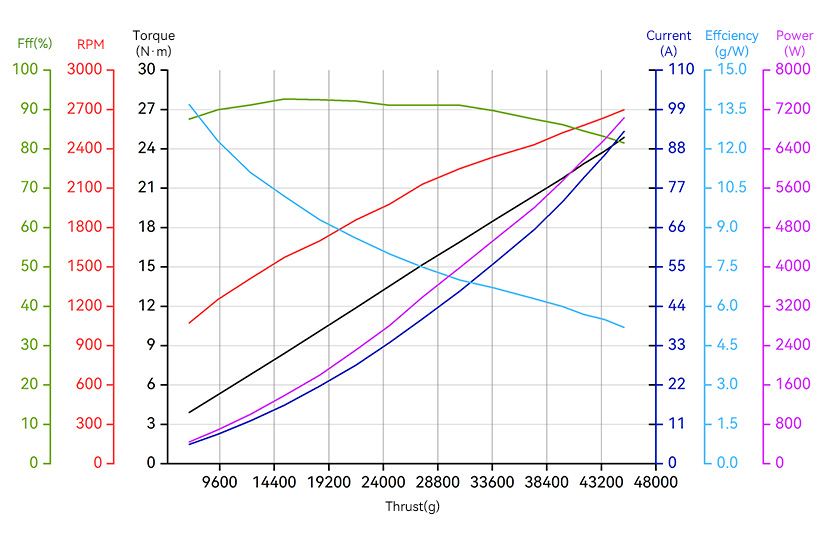

Load curve
