    X-A12XL-18S
    MODULAR Propulsion System
    X-A12XL-18S
    X-A12XL-18S
    MOTOR
    18S FOC 150A
    ESC
    PFZ4918P
    PROPELLER
    X-A12XL-18S Recommendations
    Take-off weight
    120kg
    Quadcopter
    Take-off weight
    180kg
    Hexacopter
    Technical Drawing


    Specification
    Model No.X-A12XL KV64Tube size50mm
    SetupX-A12XL-18S (Motor)+18S FOC 150A (ESC)
    +PFZ4918P (Prop)    		Wire material,
    wire gauge, color    		Power wires: 10#AWG red & black
    Signal wires: 5P Teflon
    Recommended battery14~18S (LiPo)Wire length1700±5mm
    Rated thrust30~35kgWeight5170±2%g (incl. Wires+prop)
    Efficiency at rated thrust8.2g/W (31kg)IPIPX6
    Max. thrust73.4kgRecommended ambient
    temperature    		-20～55℃
    Motor specs.
    Stator size111*22mmKV64
    ESC specs.
    Throttle range1100~1940usMax. voltage76V
    ProtocolDRONE CAN、 UAV CAN、
    CUBE CAN    		Peak current
    (for a short time)    		150A
    (Open environment
    and temperature≤60℃)
    Control methodPWM/CANBECNO
    Prop specs
    Model No.PFZ4918P (Carbon Fiber Folding)Length49 inch (1244.6mm)
    Test Data
    TypeVoltage
    (V)    		ThrottleCurrent
    (A)    		Thrust
    (g)    		Torque
    (N·m)    		RPMMotor
    Efficiency
    (%)    		Overall
    Efficiency
    (gf/W)    		Operating
    Temperature
    (℃)
    X-A12XL KV64
    +
    18S FOC 150A
    +
    PFZ4918P    		6930%7.4977974.60100793.3515.0078
    (Ambient Temperature:
    25)
    35%13.40115266.73122192.6112.39
    40%20.40157349.20142496.9111.11
    45%31.542059911.96162292.779.41
    50%43.622583015.00180893.828.53
    55%58.443126018.20199093.507.71
    60%75.923696421.56216092.537.02
    65%96.394285825.12232491.406.41
    70%118.864904028.70247890.285.95
    75%142.815521432.50262690.165.57
    80%169.996122236.20276388.785.19
    85%193.446623439.04286487.224.93
    90%216.377035641.60294885.524.69
    95%234.097348143.56301084.504.52
    100%233.877342643.52301084.534.52

    Note: Temperature in the chart is the bell temperature after running @80% throttle for 2min.

    (Data above based on benchtest at T-MOTOR lab are for reference only.)

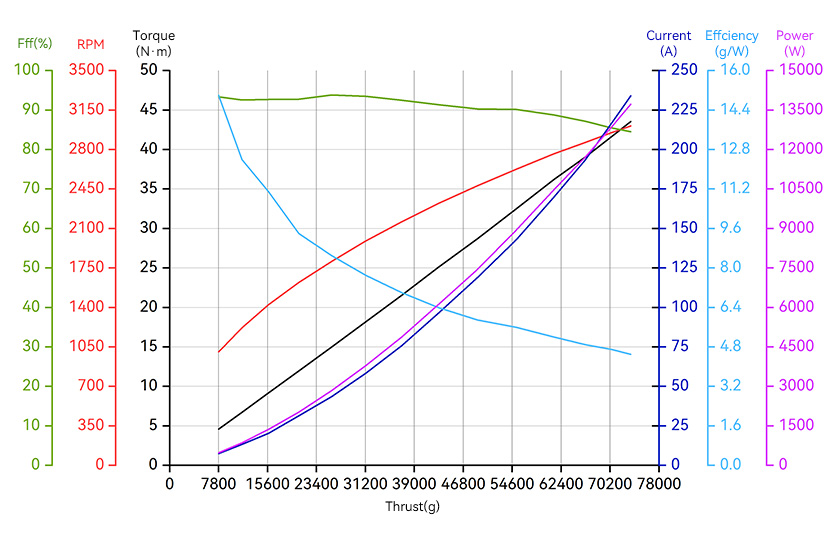

    Analysis Chart

    Load curve

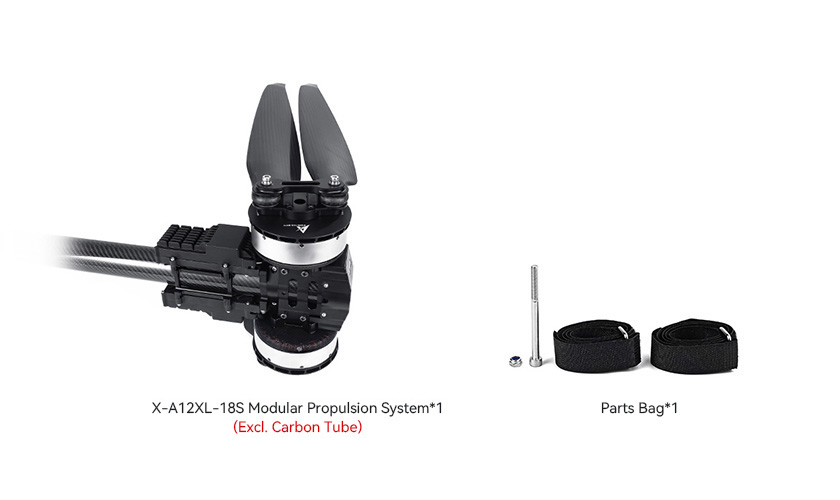

    Packing List


    Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@tmotor.com " in time.
