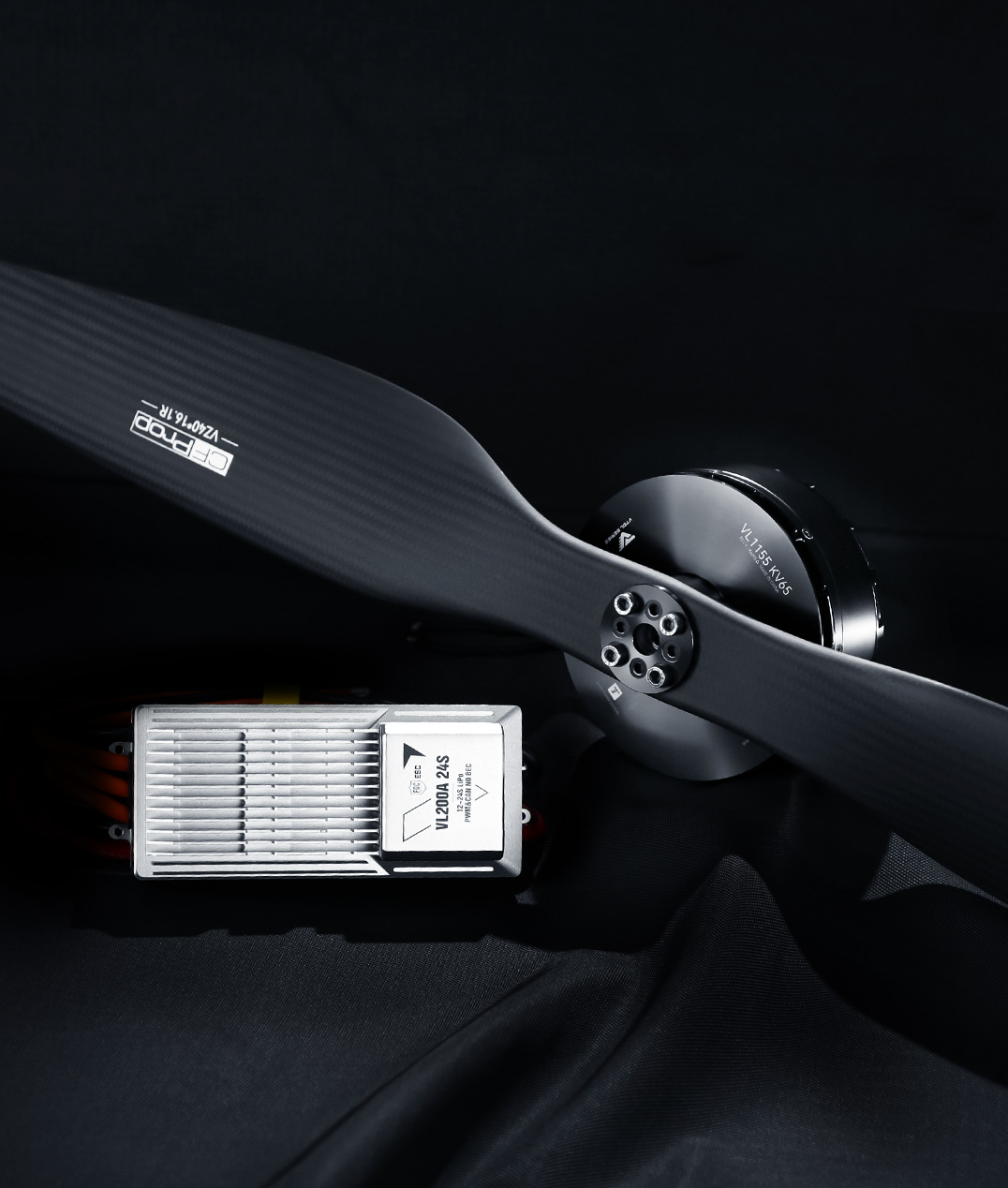

VL SERIES
PROPULSION SYSTEM

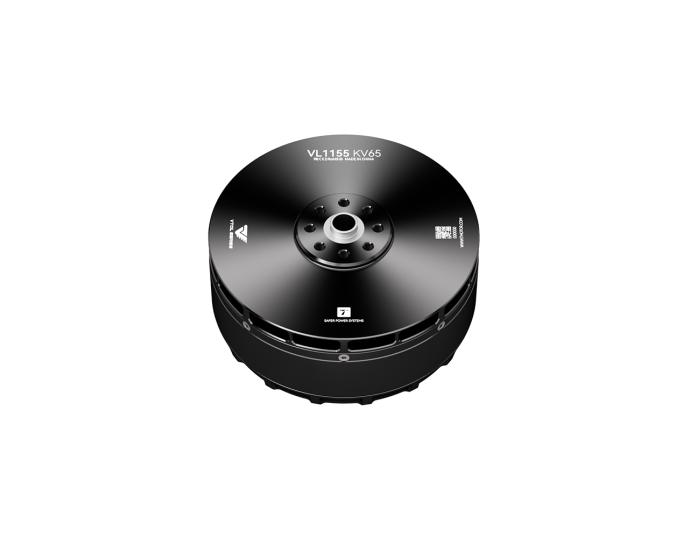

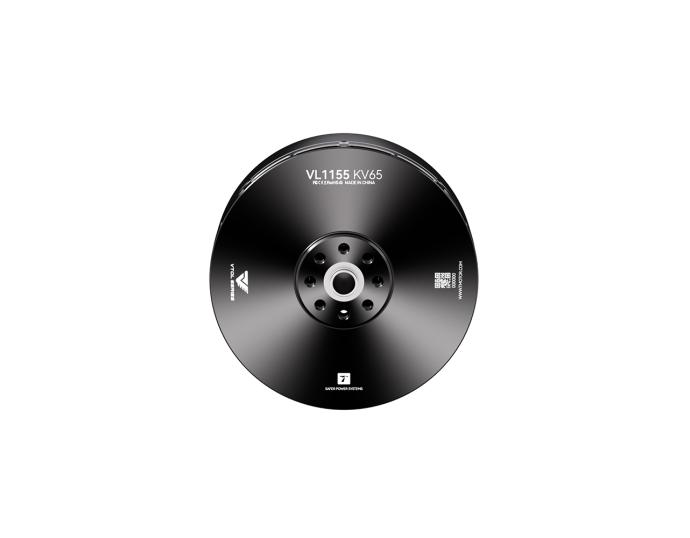

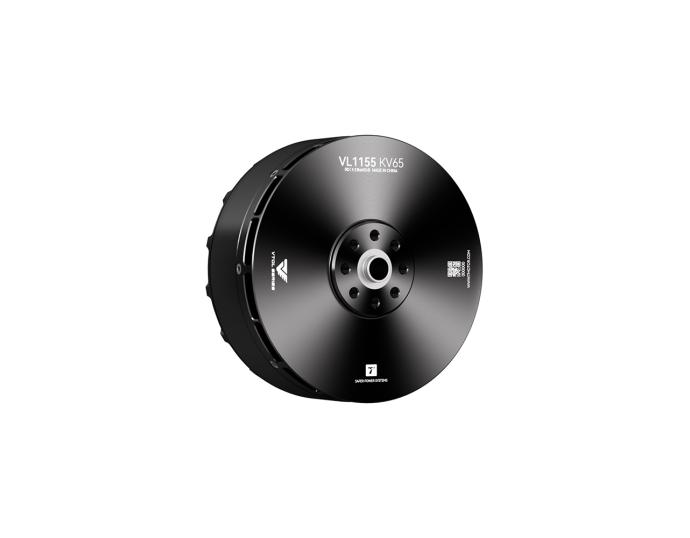

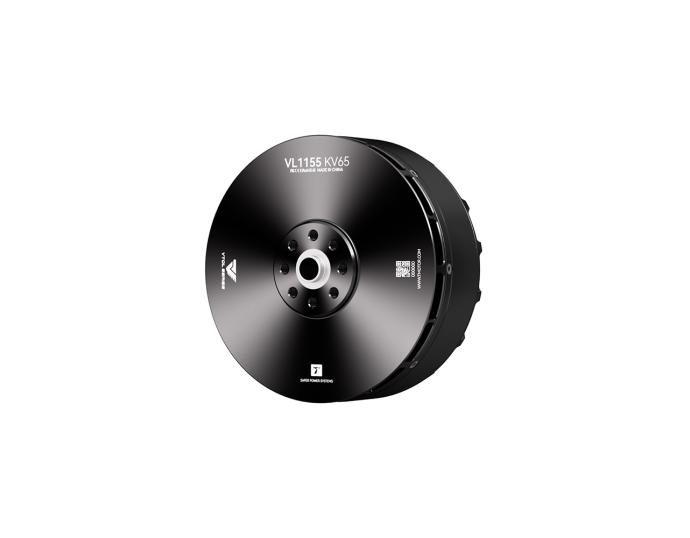

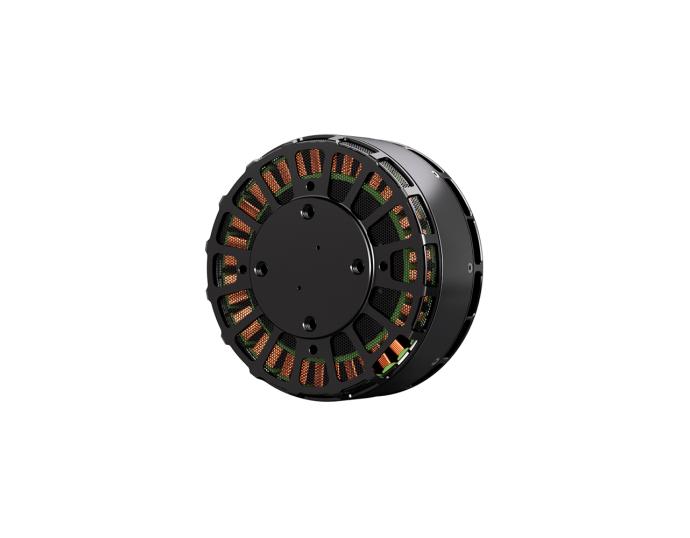

VL1155
KV65

Motor

VL200A

ESC

VA40

Propeller

Fast and Economical
Propeller Locking

Fast (Lock the propeller in seconds)

The 360° custom angle propeller-locking can effectively avoid the turbulence caused by the rotation of the rotor and ensure that the aerodynamic layout of the fixed-wing aircraft is not affected, thereby improving flight safety.

Economical (Adaptive propeller locking)

The ESC can adjust the current to control the torque to lock the propeller as per the change of external force, reducing power consumption and heat to achieve energy saving.

*The power consumption of propeller locking of the motor is approximately 10W.

IP45

Added dust-proof mesh, combined with an optimized motor structure, elevates the IP protection rating to IP45, effectively blocking dust ingress and ensuring winding insulation performance and service life.

Temperature Feedback &
Real-Time Monitoring

Even under high-load conditions, motor operation remains stable and controllable.

Recommendation

24S

Voltage

57kg

Max Thrust/Arm

90~105kg
Compound-Wing

Recommended MTOW (Quad)

Model No.	VL1155 KV65	Magnet Level	180℃

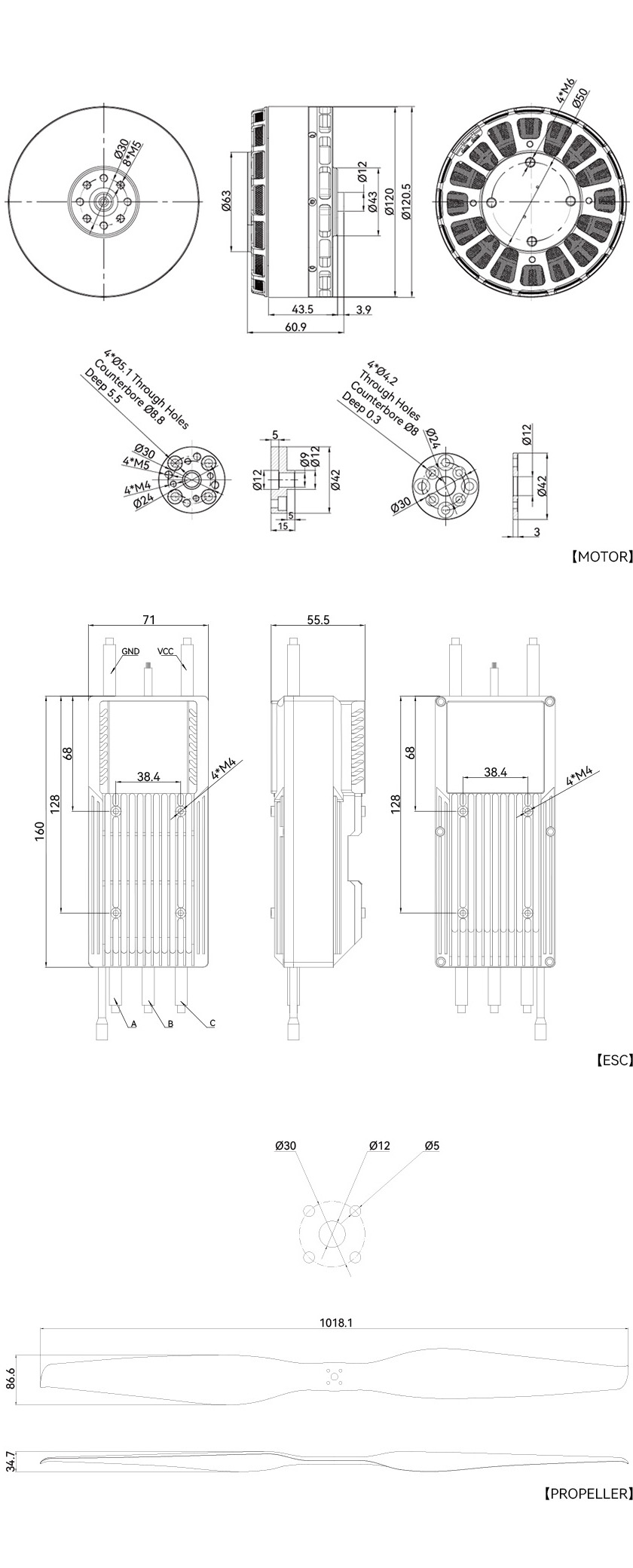

Motor Size	Φ120.5*60.9mm	Lead Cable	Enameled Wire 150mm
Stator	150°C High Temperature- Resisting Coatings	Copper Wire	200℃
Configuration	36N40P	Coil Insulation Test	1000V/5s
Shaft Diameter	IN: 15OUT: 12	Rotor Dynamic Balance Standard	≤20mg
Bearing	Imported 6002	IP	IPX5

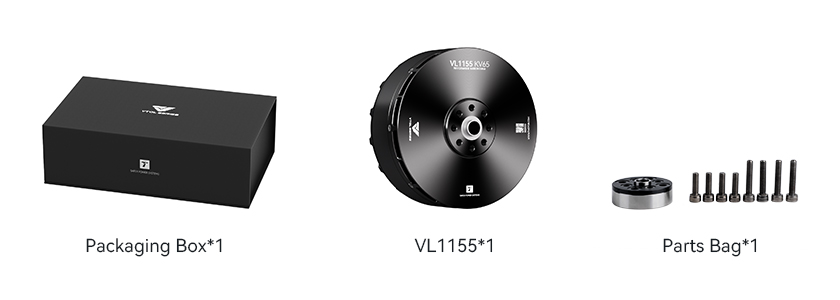

Centrifugal Cooling Design	YES	Package Size	28217280mm

Model No.	VL1155	KV (RPM/V)	65
Rated Voltage (LiPo)	24S	Idle Current (15V)	2.4A
Internal Resistance (25℃)	21.5mΩ	Peak Current	161A
Continuous Power (180s)	3300W	Ambient Temperature	-30～55℃
Max Thrust	57kg	Motor Weight (Incl. Cable)	1420g

ESC Specs
Model No.	VL200A 24S	Control	PWM/CAN
Max Voltage	108V	Protocol	CAN
Peak Current (10s)	200A (Open Environment And Temperature≤60℃)	Propeller-Locking	ElectronicPropeller- Locking
Continuous Current	120A (Under Certain Heat Dissipation Conditions)	Encoder Cables	M6-4 Aviation Connector-450±10mm
Standby Consumption	≤15mA	Output Cable	Silicone Wire-Black- 8AWG-240±10mm
Throttle Pos. Range	1100~1940us (Fixed)	Input Cable	Silicone Wire-Red/Black-8AWG-1930±15mm
Throttle Refresh Frequency	50~500Hz	Signal Cable	Shielded Cables-Black-OD4.2-5C-1980±15mm- JP-3P*2
Throttle Response Speed	300ms	Weight (Incl. Cables)	530g

Prop Specs
Model No.	VZ4016.1 Inch (1016408.9mm)	Weight (Single Blade)	208g

Type	Voltage (V)	Throttle	Thrust (gf)	Torque (N·m)	Current (A)	RPM	Power (W)	Effciency (gf/W)	Operating Temperature (℃)
VL1155 KV65 + VL200A 24S + VZ40*16.1	88.8	30%	8381	4.03	9.55	1675	848	9.89	112 (Ambient Temperature: 25)
		35%	11109	5.28	14.12	1917	1253	8.87
		40%	13918	6.60	19.51	2158	1733	8.03
		45%	17346	8.18	26.57	2395	2362	7.35
		50%	21205	9.96	35.41	2627	3149	6.73
		55%	25384	11.92	46.08	2862	4111	6.17
		60%	29536	13.93	58.02	3077	5168	5.72
		65%	34027	16.02	71.63	3288	6377	5.34
		70%	38565	18.18	87.61	3487	7804	4.94
		75%	42963	20.40	104.97	3681	9392	4.58
		80%	46531	22.12	120.63	3823	10721	4.34
		85%	48946	23.24	131.61	3914	11689	4.19
		90%	51623	24.55	144.99	4010	12866	4.01
		95%	54183	25.79	158.93	4099	14075	3.85
		100%	55265	26.39	166.36	4140	14739	3.75
VL1155 KV65 + VL200A 24S + VZ40*16.1	100	30%	10459	5.02	11.92	1896	1192	8.78	/
		35%	13986	6.64	17.58	2166	1757	7.96
		40%	17956	8.47	24.86	2432	2486	7.22
		45%	22342	10.48	34.10	2691	3410	6.55
		50%	27029	12.69	45.05	2941	4507	6.00
		55%	32049	15.09	58.16	3190	5824	5.50
		60%	36999	17.45	72.49	3416	7252	5.10
		65%	41892	19.86	90.25	3627	9025	4.64
		70%	46361	22.10	107.03	3818	10705	4.33
		75%	50548	24.12	124.62	3972	12475	4.05
		80%	53598	25.59	140.63	4091	14075	3.81
		85%	54992	26.34	148.64	4146	14789	3.72
		90%	56871	27.22	158.46	4204	15806	3.60
		100%	57036	27.29	161.83	4214	16141	3.53
Note: The motor temperature refers to the coil temperature after 10 minutes of operation under a 88.8V voltage and 26kg load. （Date above based on benchtest are for reference only,comparion with that of other motor types is not recommended.）

VL1155
