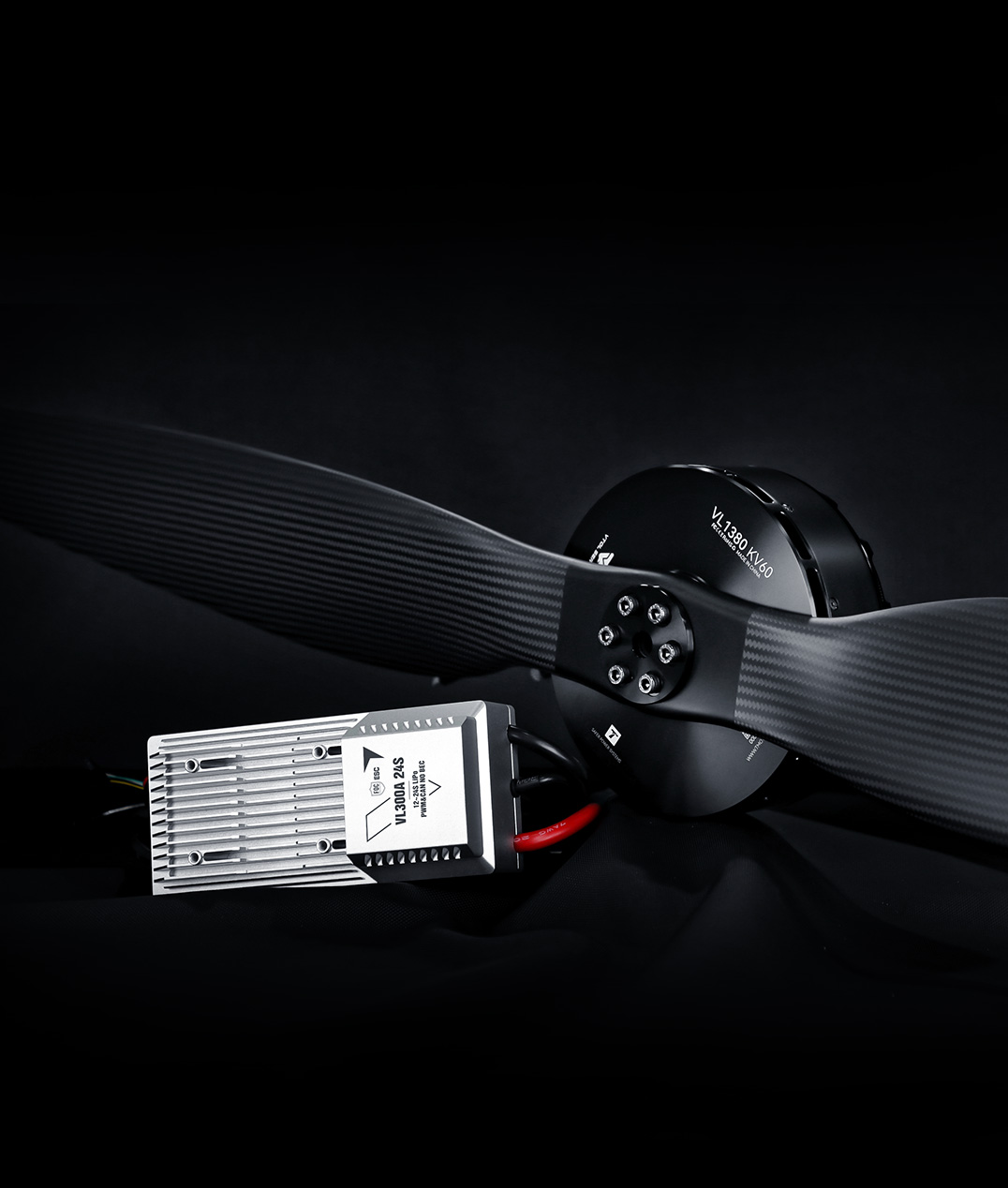

VL SERIES
PROPULSION SYSTEM

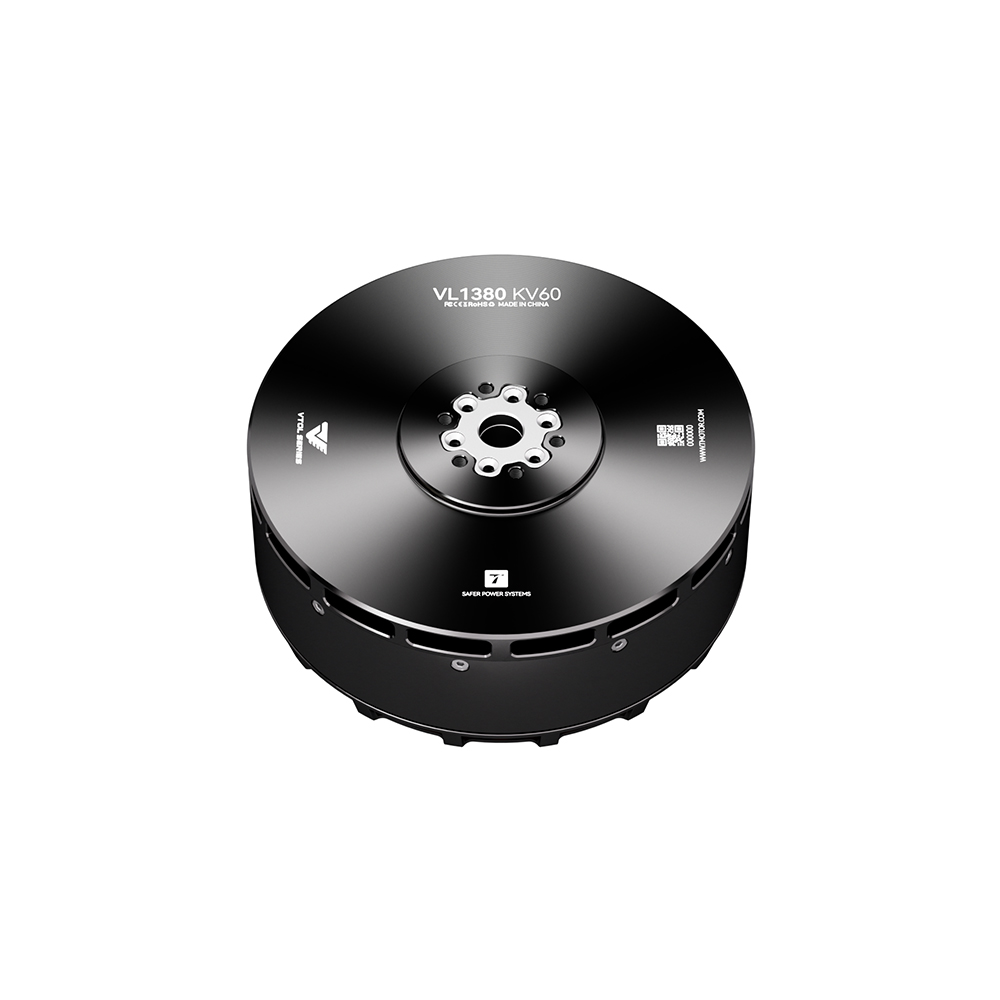

VL1380
KV60

Motor

VL300A

ESC

VZ45

Propeller

Fast and Economical
Propeller Locking

Fast (Lock the propeller in seconds)

The 360° custom angle propeller-locking can effectively avoid the turbulence caused by the rotation of the rotor and ensure that the aerodynamic layout of the fixed-wing aircraft is not affected, thereby improving flight safety.

Economical (Adaptive propeller locking)

The ESC can adjust the current to control the torque to lock the propeller as per the change of external force, reducing power consumption and heat to achieve energy saving.

*The power consumption of propeller locking of the motor is approximately 10W.

IP45

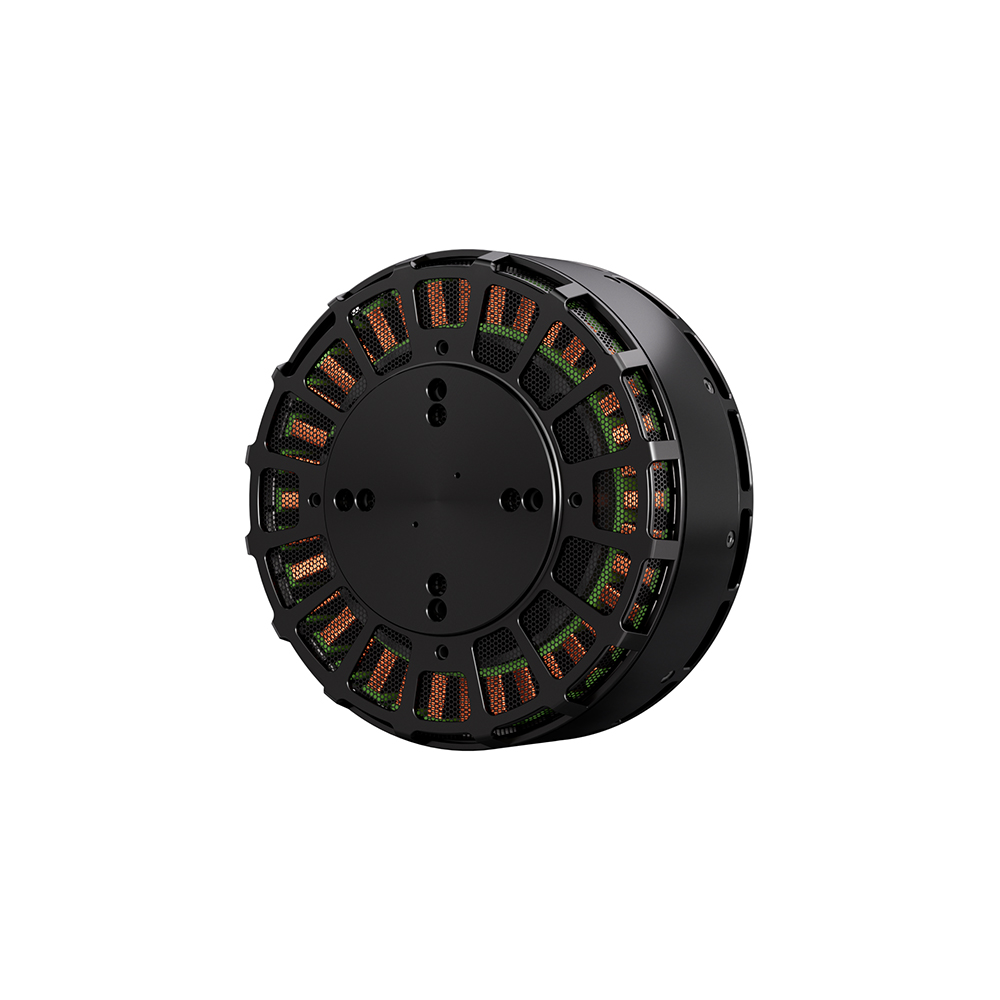

Added dust-proof mesh, combined with an optimized motor structure, elevates the IP protection rating to IP45, effectively blocking dust ingress and ensuring winding insulation performance and service life.

Temperature Feedback &
Real-Time Monitoring

Even under high-load conditions, motor operation remains stable and controllable.

Recommendation

24S

Voltage

83kg

Max Thrust/Arm

140~150kg
Compound-Wing

Recommended MTOW (Quad)

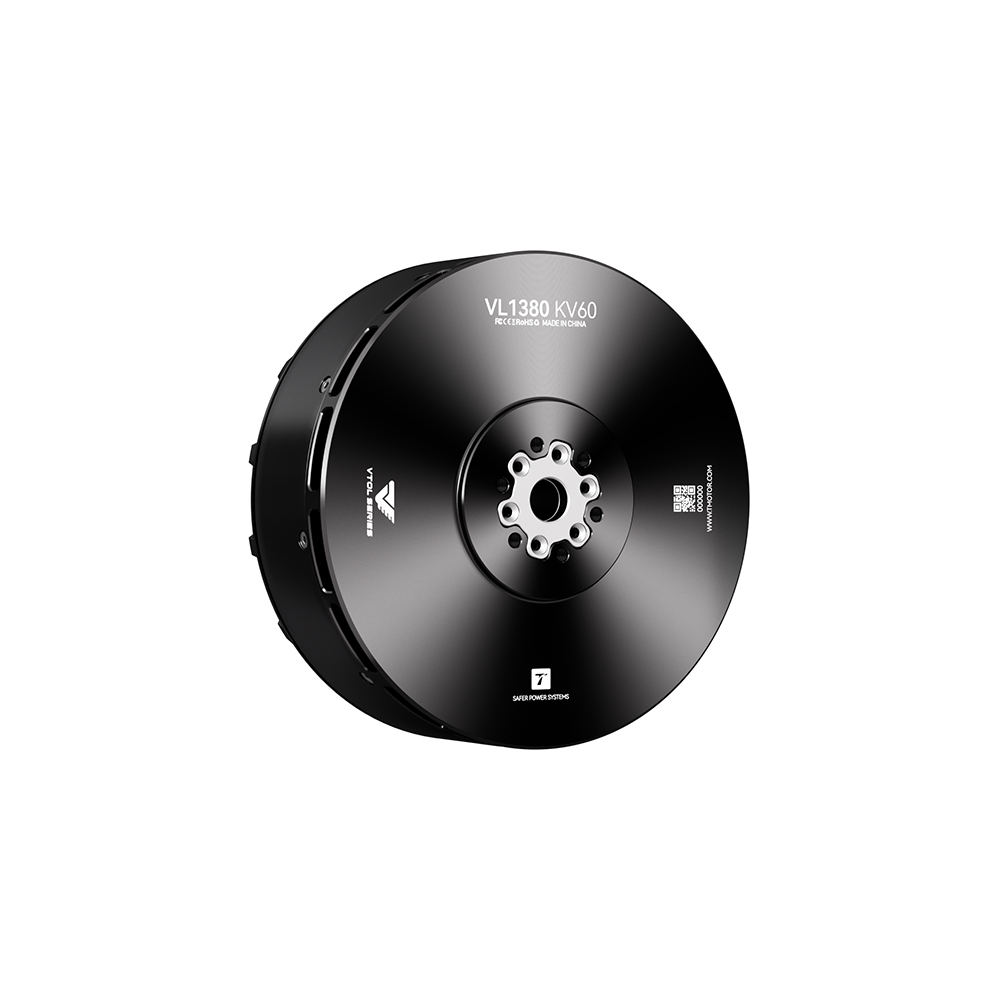

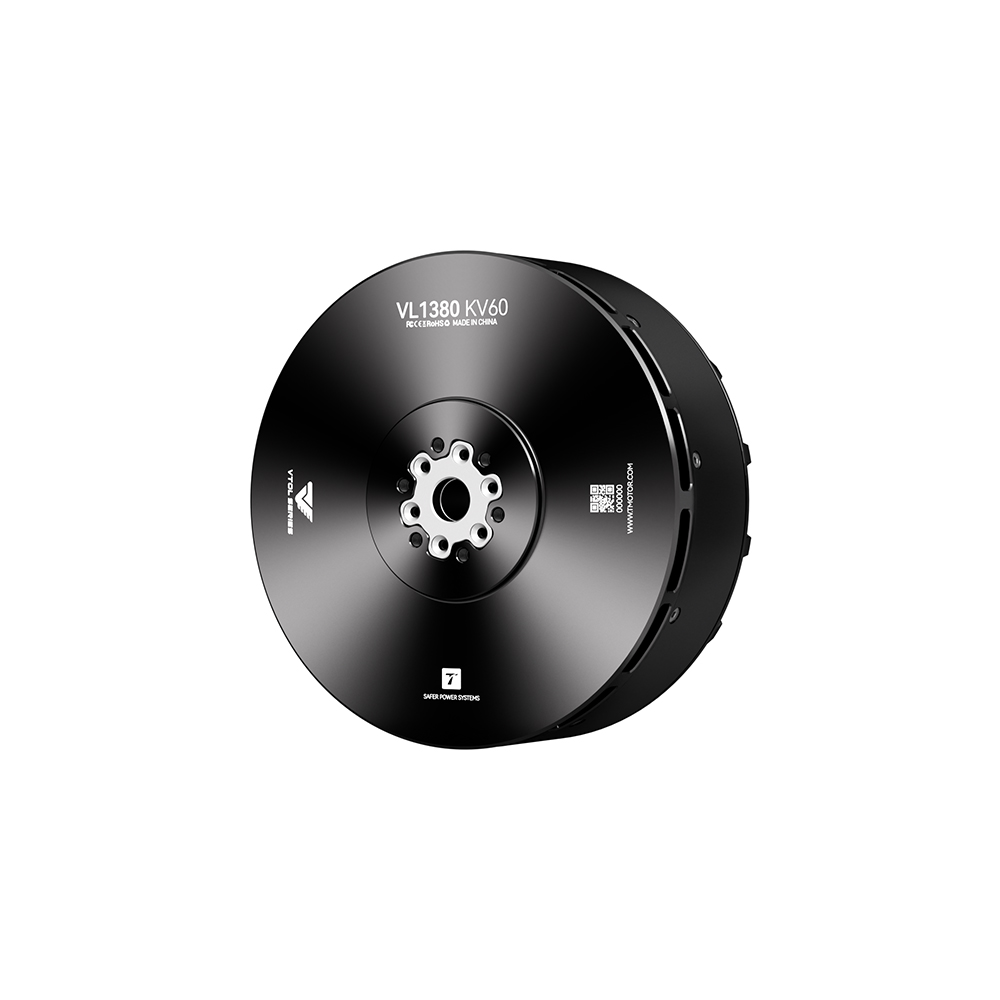

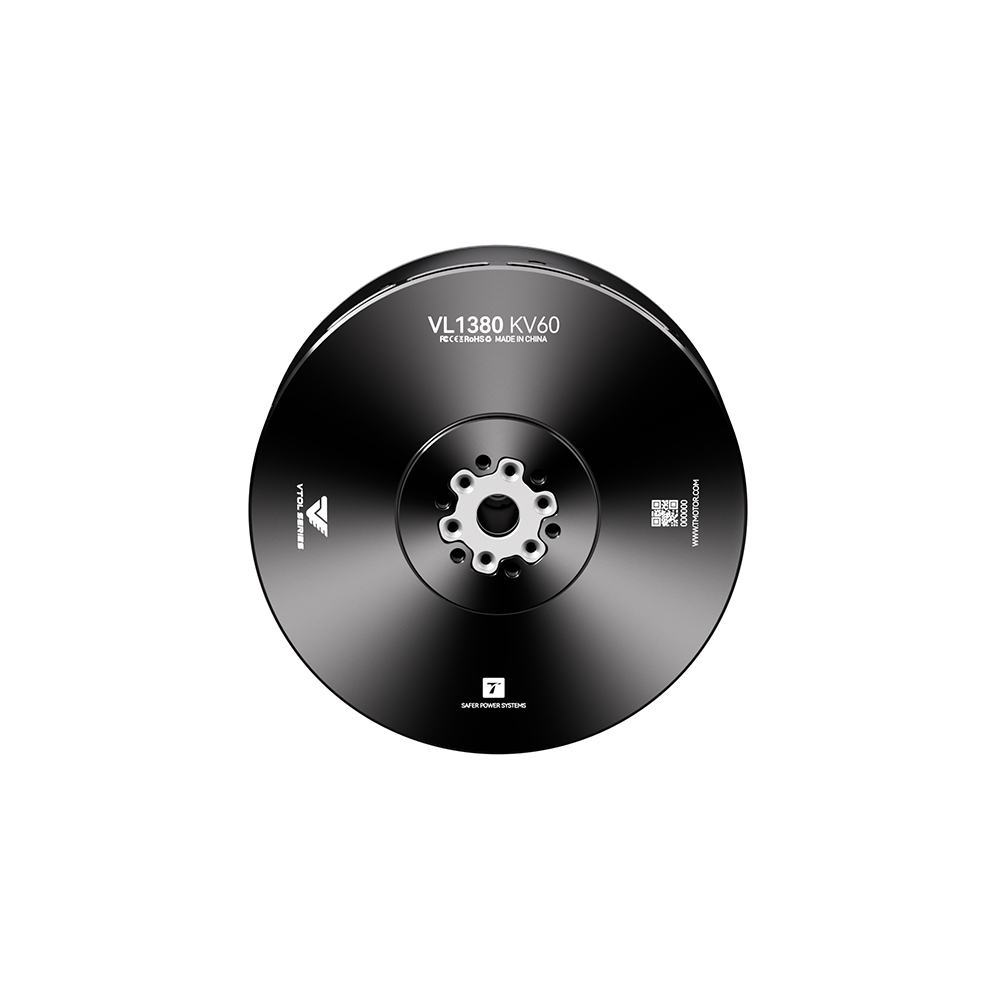

Model No.	VL1380 KV60	Magnet Level	180℃
Motor Size	Φ149.6*63.8mm	Lead Cable	Enameled Wire 150mm
Stator	150°C High Temperature- Resisting Coatings	Copper Wire	200℃
Configuration	36N42P	Coil Insulation Test	1000V/5s
Shaft Diameter	IN: 20	Rotor Dynamic Balance Standard	≤20mg
Bearing	Imported 6904	IP	IPX5
Centrifugal Cooling Design	YES	Package Size	28217280mm

Model No.	VL1380	KV (RPM/V)	60
Rated Voltage (LiPo)	24S	Idle Current (15V)	4.8A
Internal Resistance (25℃)	13mΩ	Peak Current	230A
Continuous Power (180s)	4500W	Ambient Temperature	-30～55℃
Max Thrust	83kg	Motor Weight (Incl. Cable)	2400g

ESC Specs
Model No.	VL300A 24S	Control	PWM/CAN
Max Voltage	108V	Protocol	CAN
Peak Current (10s)	300A (Open Environment And Temperature≤60℃)	Propeller-Locking	ElectronicPropeller- Locking
Continuous Current	150A (Under Certain Heat Dissipation Conditions)	Encoder Cables	M6-4 Aviation Connector-465±10mm
Standby Consumption	≤15mA	Output Cable	Silicone Wire-Black- 7AWG-290±10mm
Throttle Pos. Range	1100~1940us (Fixed)	Input Cable	Silicone Wire-Red/Black-7AWG-1950±15mm
Throttle Refresh Frequency	50~500Hz	Signal Cable	Shielded Cables-Black-OD4.2-5C-2030±15mm- JP-3P*2
Throttle Response Speed	300ms	Weight (Incl. Cables)	825g

Prop Specs
Model No.	VZ4518 Inch (1143457.2mm)	Weight (Single Blade)	320g

Type	Voltage (V)	Throttle	Thrust (gf)	Torque (N·m)	Current (A)	RPM	Power (W)	Effciency (gf/W)	Operating Temperature (℃)
VL1380 KV60 + VL300A 24S + VZ45*18	88.8	30%	14032	7.50	17.73	1626	1569	8.94	135 (Ambient Temperature: 25)
		35%	19108	10.19	26.93	1896	2386	8.01
		40%	24240	12.86	37.22	2136	3287	7.38
		45%	29121	15.56	48.66	2346	4296	6.78
		50%	34422	18.36	62.00	2547	5480	6.28
		55%	39550	21.17	76.39	2748	6743	5.87
		60%	44430	23.81	91.61	2898	8065	5.51
		65%	50700	27.27	111.47	3082	9853	5.15
		70%	55969	30.21	130.78	3240	11536	4.85
		75%	61670	33.42	153.04	3399	13494	4.57
		80%	66814	36.30	175.10	3532	15442	4.33
		85%	69354	37.79	185.95	3630	16388	4.23
		90%	73596	40.31	207.84	3714	18305	4.02
		95%	77287	42.50	228.85	3786	20173	3.83
		100%	79141	43.53	240.83	3852	21222	3.73
VL1380 KV60 + VL300A 24S + VZ45*18	100	30%	17954	9.55	21.82	1860	2185	8.22	/
		35%	24465	13.02	33.47	2190	3352	7.30
		40%	30662	16.27	46.23	2409	4621	6.64
		45%	37026	19.74	60.91	2652	6089	6.08
		50%	43436	23.24	77.64	2865	7756	5.60
		55%	49515	26.50	95.24	3076	9515	5.20
		60%	56497	30.38	116.45	3270	11645	4.85
		65%	62920	33.95	139.20	3480	13898	4.53
		70%	68898	37.41	162.90	3586	16186	4.26
		75%	74257	40.53	187.79	3720	18649	3.98
		80%	78560	43.05	209.52	3832	20807	3.78
		85%	80635	44.34	220.30	3870	21953	3.67
		90%	82461	45.05	231.82	3930	23096	3.57
		100%	83024	45.65	234.24	3930	23326	3.56
Note: The motor temperature refers to the coil temperature after 10 minutes of operation under a 88.8V voltage and 40kg load. （Date above based on benchtest are for reference only,comparion with that of other motor types is not recommended.）
