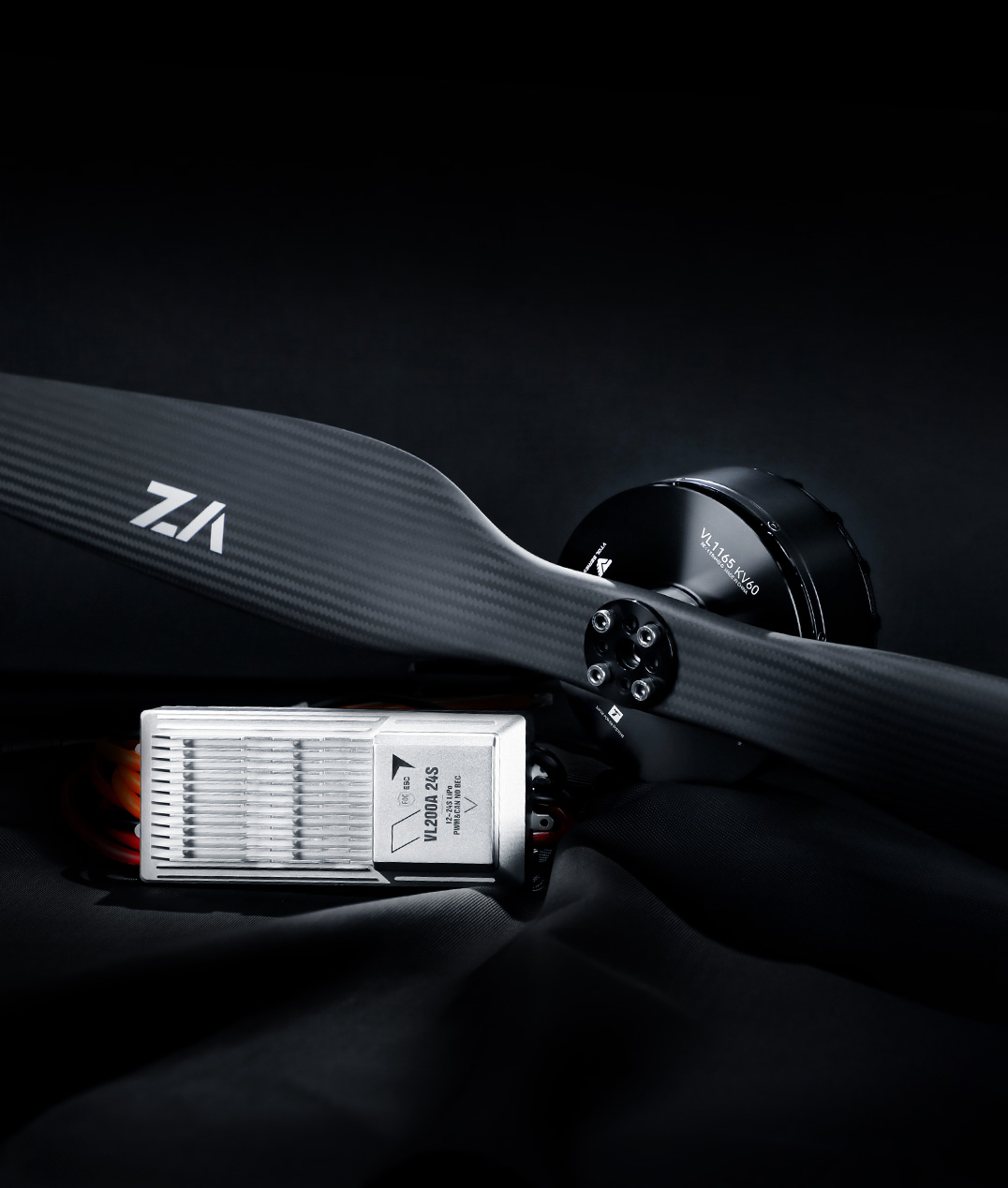

VL SERIES
PROPULSION SYSTEM

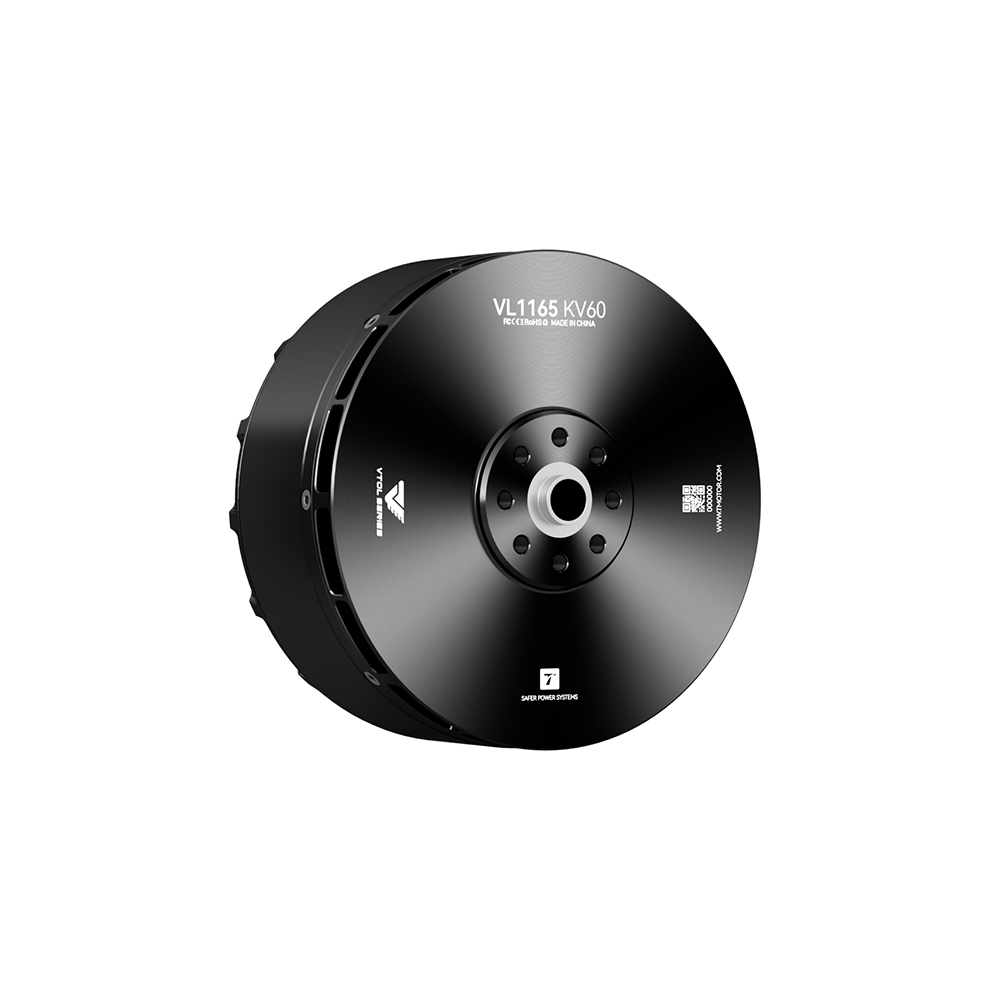

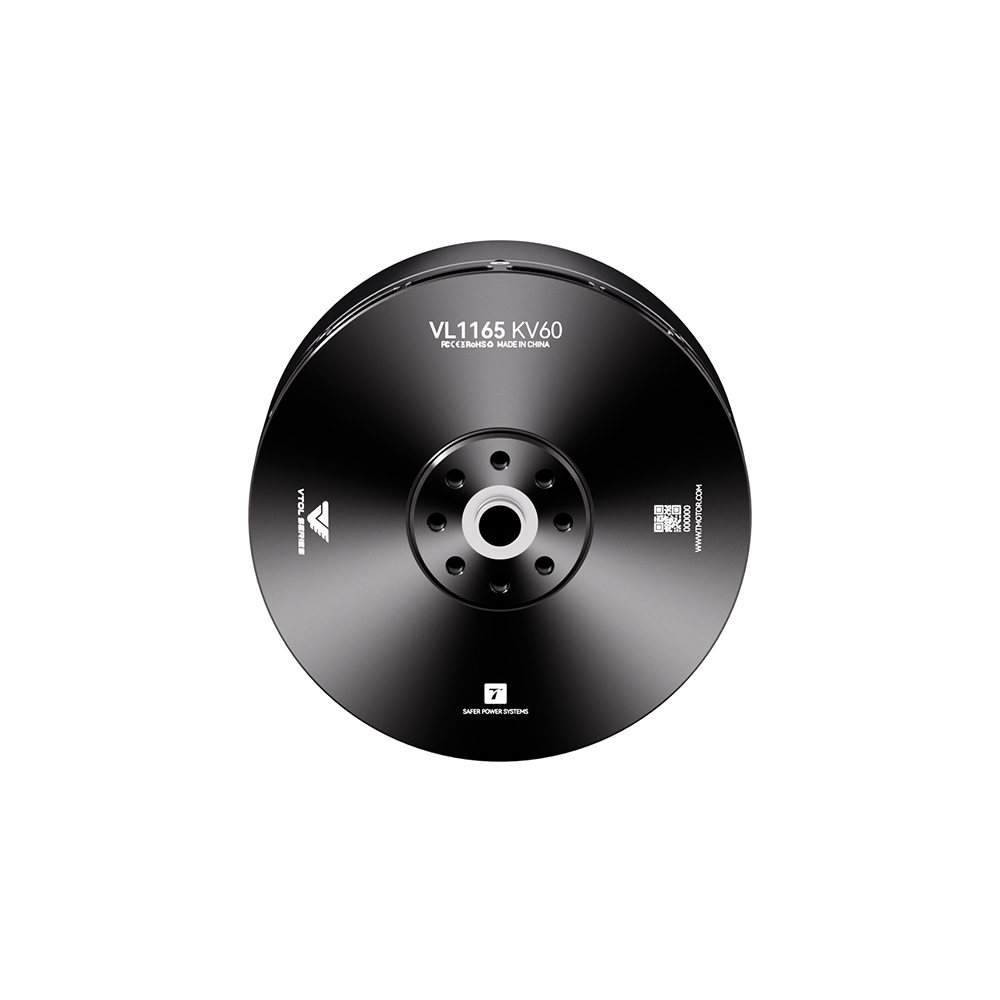

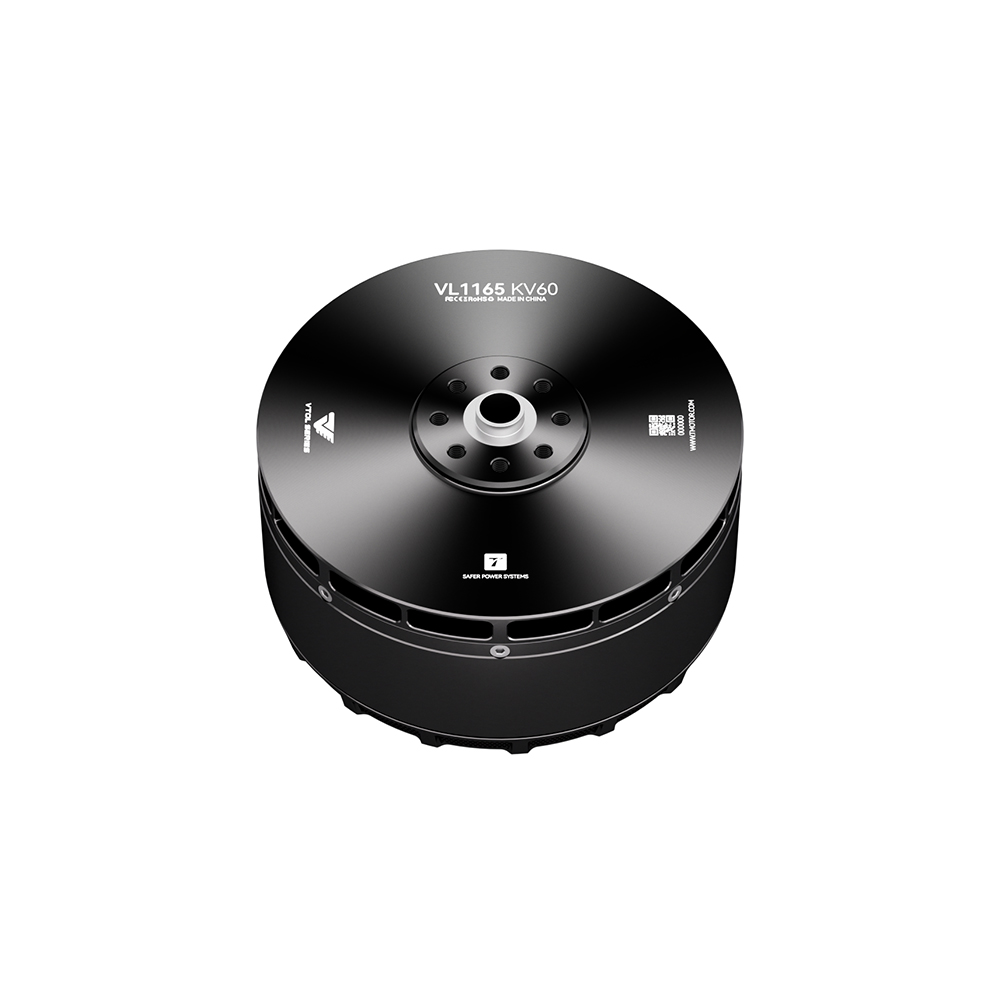

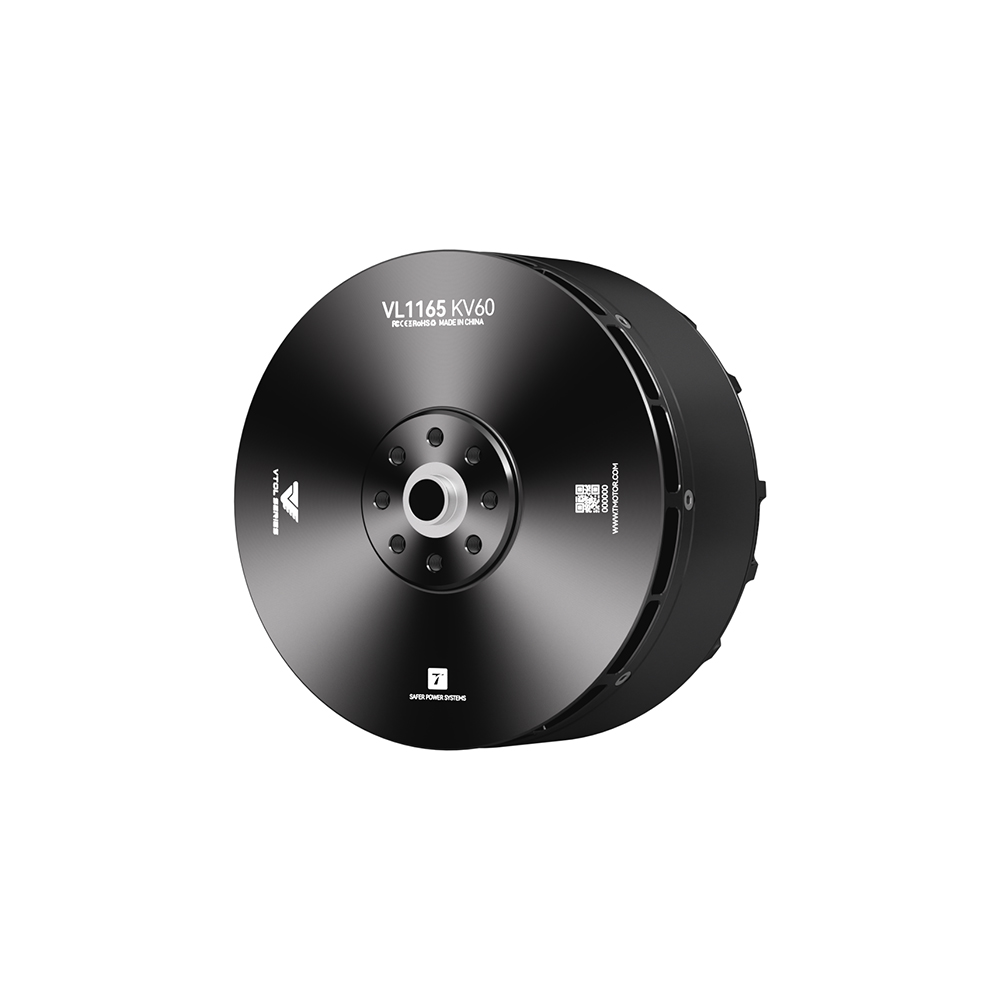

VL1165
KV60

Motor

VL200A

ESC

VA42

Propeller

Fast and Economical
Propeller Locking

Fast (Lock the propeller in seconds)

The 360° custom angle propeller-locking can effectively avoid the turbulence caused by the rotation of the rotor and ensure that the aerodynamic layout of the fixed-wing aircraft is not affected, thereby improving flight safety.

Economical (Adaptive propeller locking)

The ESC can adjust the current to control the torque to lock the propeller as per the change of external force, reducing power consumption and heat to achieve energy saving.

*The power consumption of propeller locking of the motor is approximately 10W.

IP45

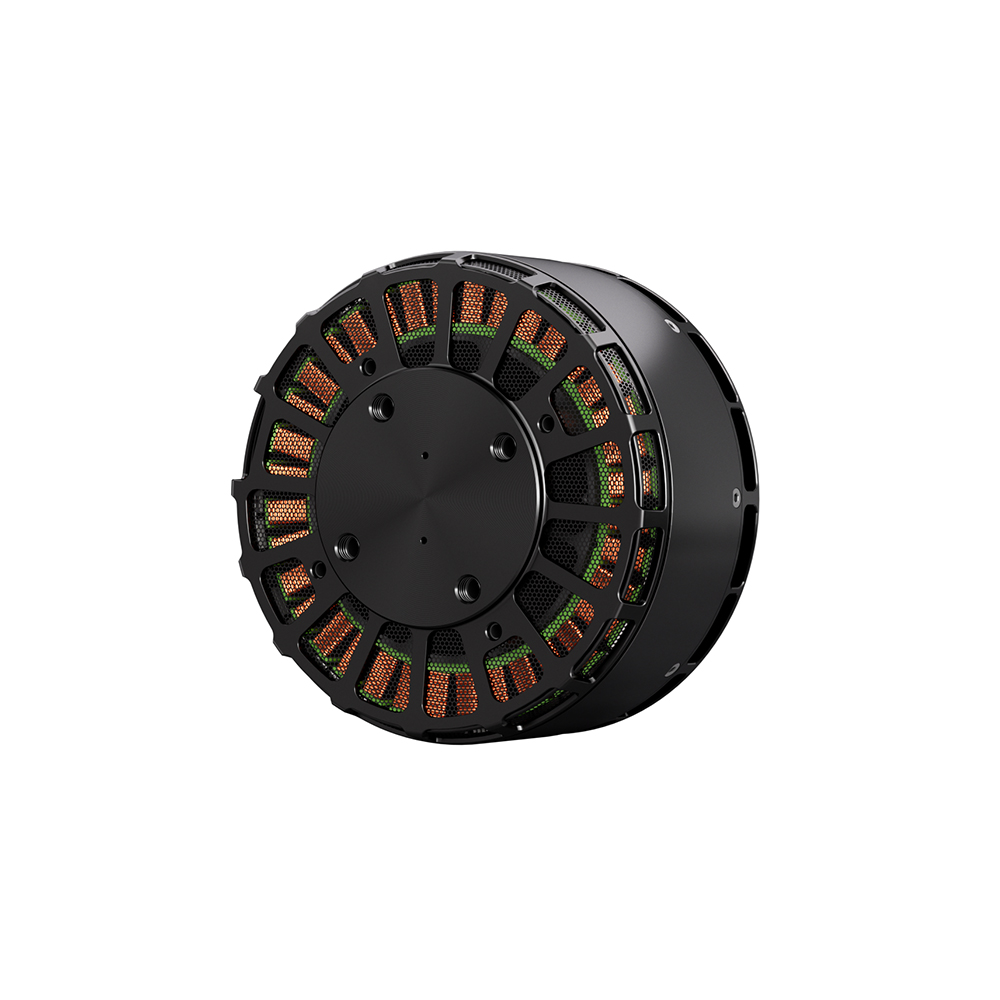

Added dust-proof mesh, combined with an optimized motor structure, elevates the IP protection rating to IP45, effectively blocking dust ingress and ensuring winding insulation performance and service life.

Temperature Feedback &
Real-Time Monitoring

Even under high-load conditions, motor operation remains stable and controllable.

Recommendation

24S

Voltage

66kg

Max Thrust/Arm

115~125kg
Compound-Wing

Recommended MTOW (Quad)

Model No.	VL1165 KV60	Magnet Level	180℃

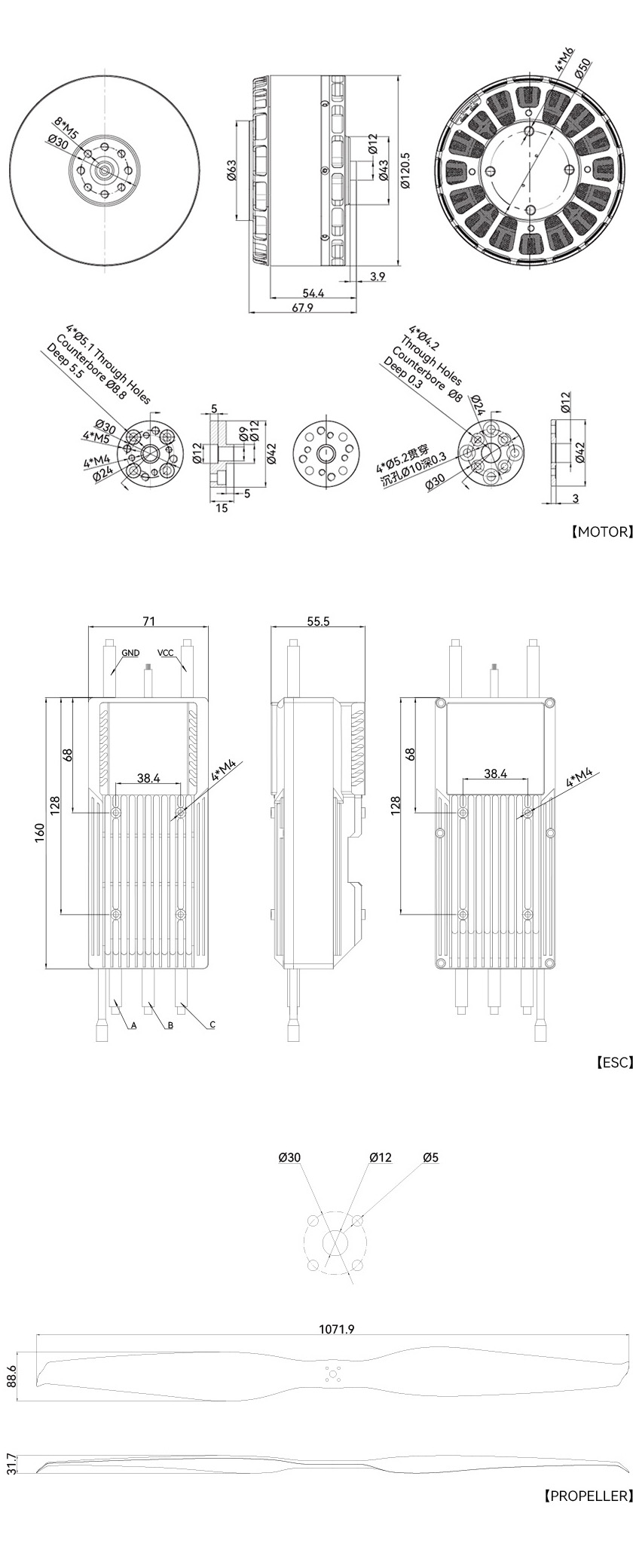

Motor Size	Φ120.5*67.9mm	Lead Cable	Enameled Wire 150mm
Stator	150°C High Temperature- Resisting Coatings	Copper Wire	200℃
Configuration	36N40P	Coil Insulation Test	1000V/5s
Shaft Diameter	IN: 15OUT: 12	Rotor Dynamic Balance Standard	≤20mg
Bearing	Imported 6002	IP	IPX5
Centrifugal Cooling Design	YES	Package Size	28217280mm

Model No.	VL1165	KV (RPM/V)	60
Rated Voltage (LiPo)	24S	Idle Current (15V)	2.9A
Internal Resistance (25℃)	18mΩ	Peak Current	180A
Continuous Power (180s)	3500W	Ambient Temperature	-30～55℃
Max Thrust	66kg	Motor Weight (Incl. Cable)	1710g

ESC Specs
Model No.	VL200A 24S	Control	PWM/CAN
Max Voltage	108V	Protocol	CAN
Peak Current (10s)	200A (Open Environment And Temperature≤60℃)	Propeller-Locking	ElectronicPropeller- Locking
Continuous Current	120A (Under Certain Heat Dissipation Conditions)	Encoder Cables	M6-4 Aviation Connector-450±10mm
Standby Consumption	≤15mA	Output Cable	Silicone Wire-Black- 8AWG-240±10mm
Throttle Pos. Range	1100~1940us (Fixed)	Input Cable	Silicone Wire-Red/Black-8AWG-1930±15mm
Throttle Refresh Frequency	50~500Hz	Signal Cable	Shielded Cables-Black-OD4.2-5C-1980±15mm- JP-3P*2
Throttle Response Speed	300ms	Weight (Incl. Cables)	530g

Prop Specs
Model No.	VZ4216.5 Inch (1066.8419.1mm)	Weight (Single Blade)	273g

Type	Voltage (V)	Throttle	Thrust (gf)	Torque (N·m)	Current (A)	RPM	Power (W)	Effciency (gf/W)	Operating Temperature (℃)
VL1165 KV60 + VL200A 24S + VZ42*16.5	88.8	30%	10240	4.79	12.52	1837	1113	9.20	108 (Ambient Temperature: 25)
		35%	14007	6.49	19.03	2122	1692	8.28
		40%	17592	8.16	26.38	2371	2345	7.50
		45%	21051	9.78	34.28	2600	3050	6.90
		50%	24984	11.59	43.74	2812	3890	6.42
		55%	28755	13.36	54.20	3010	4821	5.96
		60%	32852	15.26	65.83	3202	5852	5.61
		65%	37212	17.27	79.10	3383	7031	5.29
		70%	41558	19.30	93.40	3555	8302	5.01
		75%	45393	21.10	108.87	3692	9658	4.70
		80%	49844	23.27	125.54	3854	11134	4.48
		85%	52475	24.49	135.57	3935	12021	4.37
		90%	56244	26.33	152.64	4067	13529	4.16
		95%	59951	28.13	170.67	4184	15123	3.96
		100%	61704	29.01	180.12	4243	15964	3.87
VL1165 KV60 + VL200A 24S + VZ42*16.5	100	30%	13217	6.03	15.43	2050	1545	8.55	/
		35%	17831	8.13	23.38	2364	2341	7.62
		40%	22572	10.31	32.97	2646	3303	6.83
		45%	27214	12.46	43.24	2899	4330	6.28
		50%	32017	14.67	55.27	3134	5537	5.78
		55%	36900	16.97	68.82	3355	6892	5.35
		60%	40934	18.86	82.19	3512	8229	4.97
		65%	46332	21.46	98.73	3729	9873	4.69
		70%	51298	23.90	117.11	3921	11707	4.38
		75%	56600	26.44	136.95	4084	13688	4.14
		80%	61191	28.70	156.93	4222	15678	3.90
		85%	62822	29.52	162.95	4276	16277	3.86
		90%	65893	30.83	179.29	4352	17911	3.68
		100%	66032	31.08	179.91	4371	17971	3.67
Note: The motor temperature refers to the coil temperature after 10 minutes of operation under a 88.8V voltage and 30kg load. （Date above based on benchtest are for reference only,comparion with that of other motor types is not recommended.）

VL1165
