    V602 KV180 12S Vtol Brushless Drone Motor

    139.90

    Available points: 6000 Points Points reward: 139 Points

    KV：
    • KV180
    Quantity：

    139.90

    USD200 Consumption Free Shipping by International Express (Excl. Remote Areas and Special Items).

    • Detail information
    • Specifications

    Hot Products

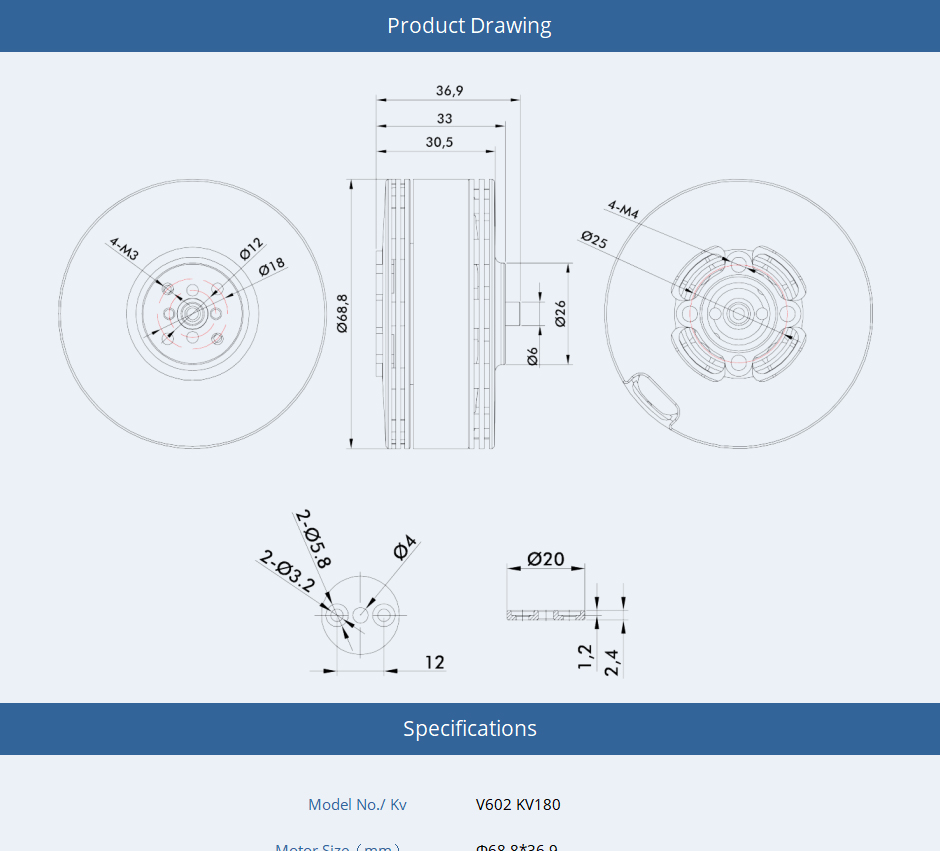

    Technical Drawing

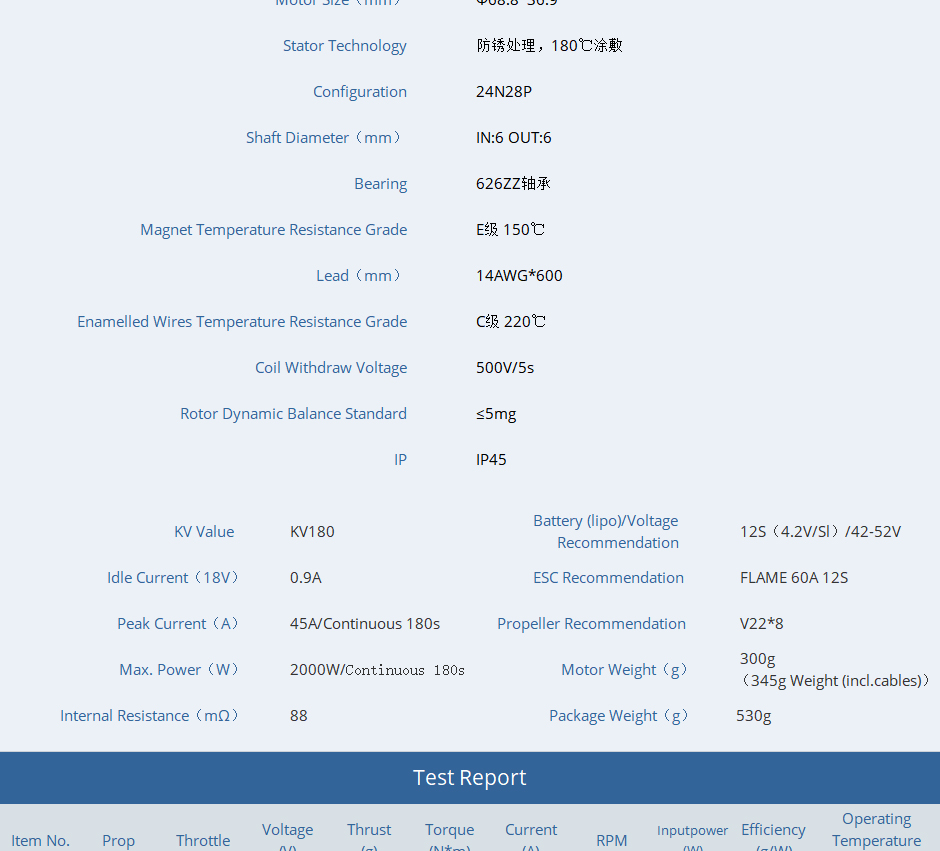

    Specification
    Model No./ KvV602 KV180Magnet Temperature Resistance GradeClass E 150℃
    Motor Size（mm）Φ68.8*36.9Lead（mm）14AWG*600
    Stator TechnologyAnti-rust treatment;180°C high temperature-resisting coatingsEnamelled Wires Temperature Resistance GradeClass C 220℃
    Configuration24N28PCoil Withdraw Voltage500V/5s
    Shaft Diameter（mm）IN:6 OUT:6Rotor Dynamic Balance Standard≤5mg
    BearingImported 626ZZIPIP45
    KV ValueKV180Battery (lipo)/Voltage
    Recommendation    		12S（4.2V/Sl）/42-52V
    Idle Current（18V）0.9AESC RecommendationFLAME 60A 12S
    Peak Current（A）45A/Continuous 180sPropeller RecommendationV22*7.4
    Max. Power（W）2000W/Continuous 180sMotor Weight（g）300g
    （345g Weight (incl.cables)）
    Internal Resistance（mΩ）88Package Weight（g）530g

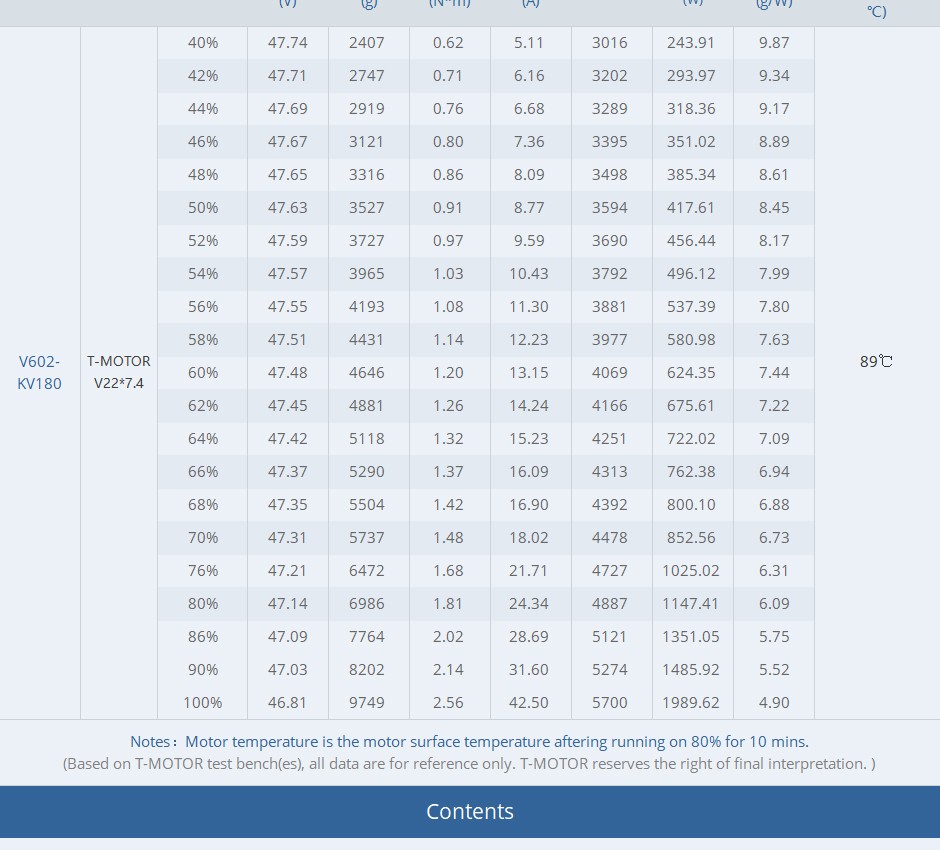

    Test Data
    Item No.PropThrottleVoltage
    (V)    		Thrust
    (g)    		Torque
    (N*m)    		Current
    (A)    		RPMInputpower
    (W)    		Efficiency
    (g/W)    		Operating
    Temperature
    ℃)
    V602-
    KV180

    T-MOTOR
    V22*7.4

    		40%47.7424070.625.113016243.919.8789℃
    42%47.7127470.716.163202293.979.34
    44%47.6929190.766.683289318.369.17
    46%47.6731210.807.363395351.028.89
    48%47.6533160.868.093498385.348.61
    50%47.6335270.918.773594417.618.45
    52%47.5937270.979.593690456.448.17
    54%47.5739651.0310.433792496.127.99
    56%47.5541931.0811.303881537.397.80
    58%47.5144311.1412.233977580.987.63
    60%47.4846461.2013.154069624.357.44
    62%47.4548811.2614.244166675.617.22
    64%47.4251181.3215.234251722.027.09
    66%47.3752901.3716.094313762.386.94
    68%47.3555041.4216.904392800.106.88
    70%47.3157371.4818.024478852.566.73
    76%47.2164721.6821.7147271025.026.31
    80%47.1469861.8124.3448871147.416.09
    86%47.0977642.0228.6951211351.055.75
    90%47.0382022.1431.6052741485.925.52
    100%46.8197492.5642.5057001989.624.90
    Notes：Motor temperature is the motor surface temperature aftering running on 80% for 10 mins.
    (Based on T-MOTOR test bench(es), all data are for reference only. T-MOTOR reserves the right of final interpretation. )

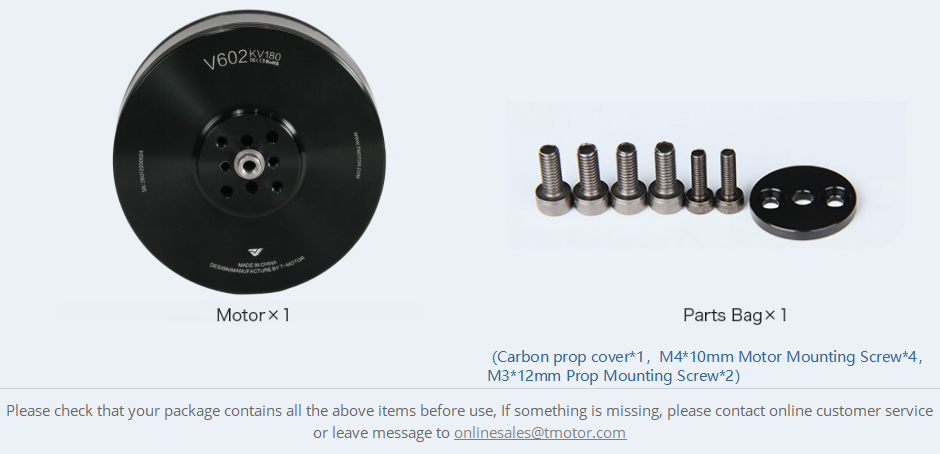

    Packing List


    Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@tmotor.com " in time.
