Name: AM40 3D/4D Fixed-Wing Drone Motor 1500KV/1850KV
Brand: T-Motor
SKU: T-MOTOR001049
Price: 25.90 USD
Availability: InStock

Relevant Products

BPP-4D Pro Freestyle Flight Plane Power Combo Set Motor ESC Prop

$39.99 Buy Now

Detail information
Specifications

Hot Products

About T-MOTOR AM40 4D Freestyle Rc Fixed Wing Airplane Motor

T-Motor AM40 breaks the tradition through new 3D/4D design,you can switch 3D to 4D flight freely,and best on 150-320g indoor&outdoor planes.

AM40 4D Hightlight:

1.For medium and high pilots,best on 150-320g F3P inoor& outdoor planes

2.Ensure smooth operation of all flight postures more excellent control and a better balance experience

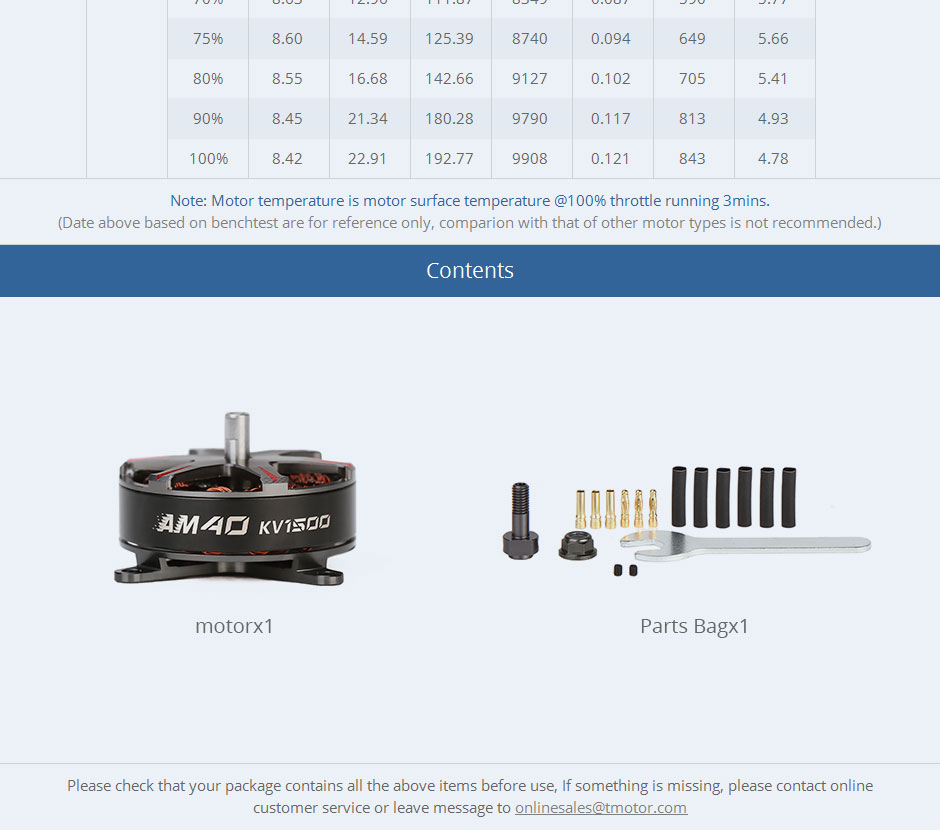

Packing List Includes:

1x T-MOTOR AM40 4D Motor

1x Hardware pack

Matching Guide:

T-MOTOR AM16A ESC

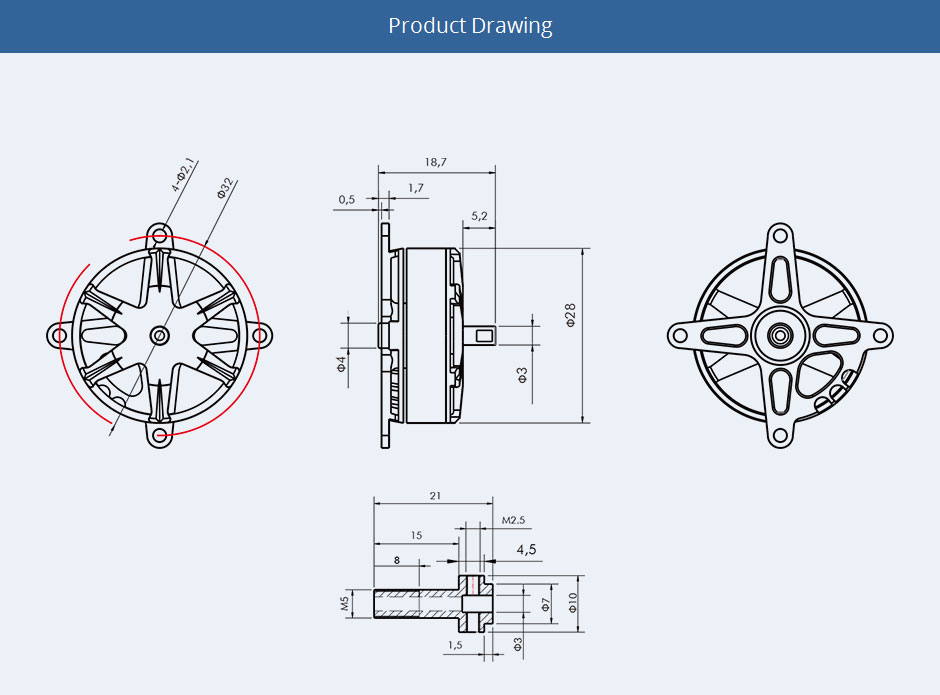

Technical Drawing

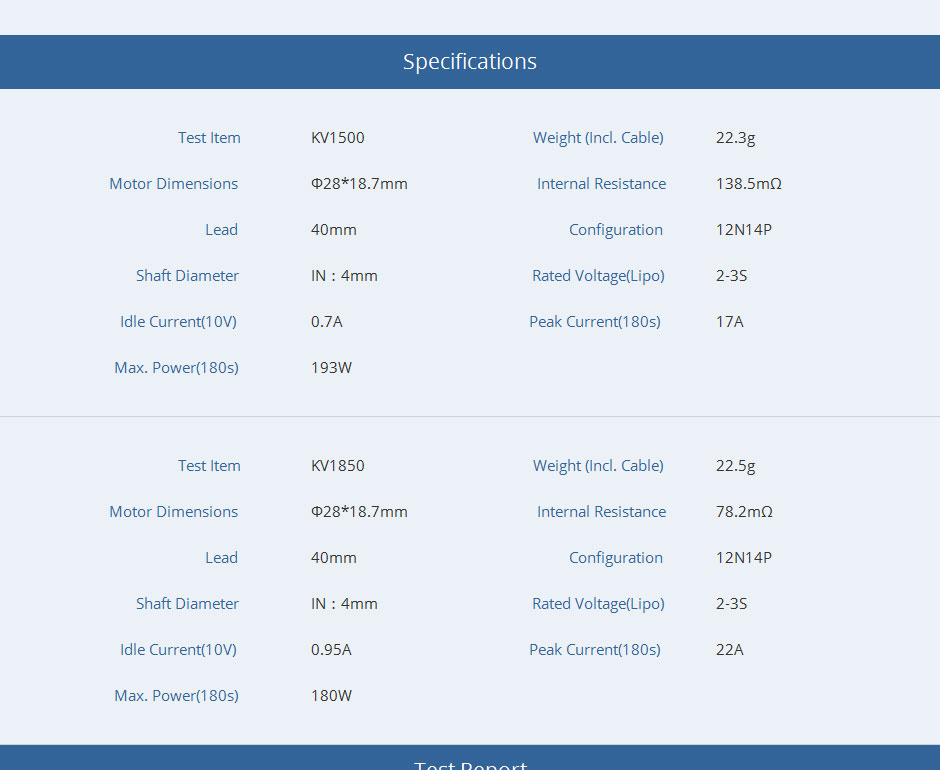

Specification

Test Item	KV1500	Weight (Incl. Cable)	22.3g
Motor Dimensions	Φ28*18.7mm	Internal Resistance	138.5mΩ
Lead	40mm	Configuration	12N14P
Shaft Diameter	IN：4mm	Rated Voltage(Lipo)	2-3S
Idle Current(10V)	0.7A	Peak Current(180s)	17A
Max. Power(180s)	193W

Test Item	KV1850	Weight (Incl. Cable)	22.5g
Motor Dimensions	Φ28*18.7mm	Internal Resistance	78.2mΩ
Lead	40mm	Configuration	12N14P
Shaft Diameter	IN：4mm	Rated Voltage(Lipo)	2-3S
Idle Current(10V)	0.95A	Peak Current(180s)	22A
Max. Power(180s)	180W

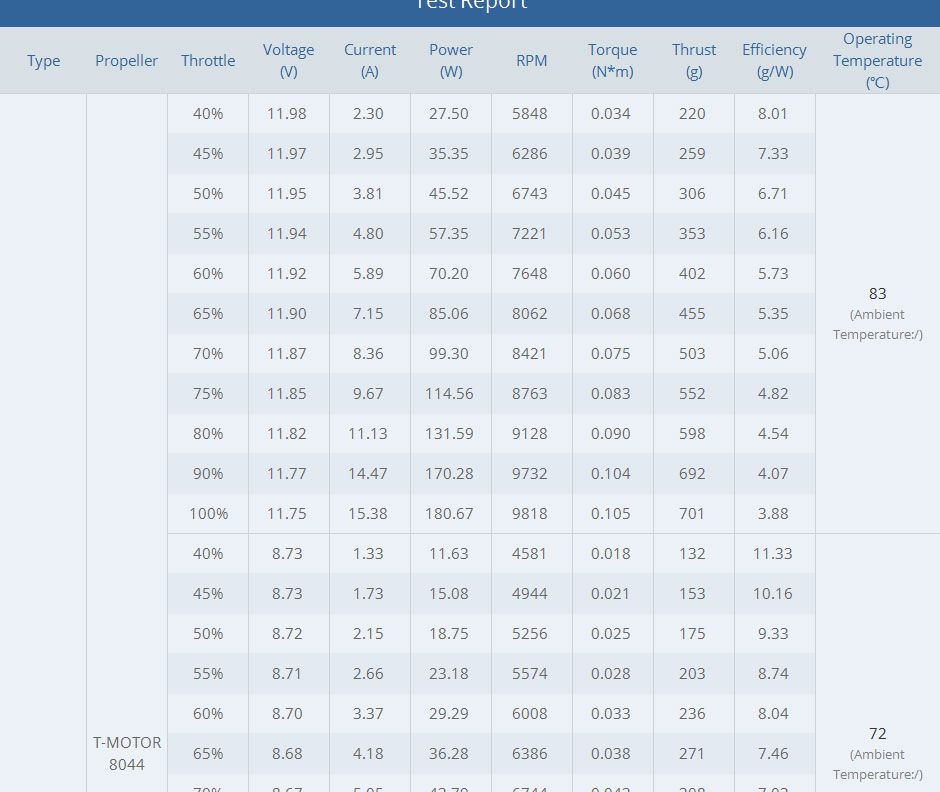

Test Data

Type	Propeller	Throttle	Voltage (V)	Current (A)	Power (W)	RPM	Torque (N*m)	Thrust (g)	Efficiency (g/W)	Operating Temperature (℃)
AM40 KV1500	T-MOTOR 8044	40%	11.98	2.30	27.50	5848	0.034	220	8.01	83 (Ambient Temperature: /)
		45%	11.97	2.95	35.35	6286	0.039	259	7.33
		50%	11.95	3.81	45.52	6743	0.045	306	6.71
		55%	11.94	4.80	57.35	7221	0.053	353	6.16
		60%	11.92	5.89	70.20	7648	0.060	402	5.73
		65%	11.90	7.15	85.06	8062	0.068	455	5.35
		70%	11.87	8.36	99.30	8421	0.075	503	5.06
		75%	11.85	9.67	114.56	8763	0.083	552	4.82
		80%	11.82	11.13	131.59	9128	0.090	598	4.54
		90%	11.77	14.47	170.28	9732	0.104	692	4.07
		100%	11.75	15.38	180.67	9818	0.105	701	3.88
		40%	8.73	1.33	11.63	4581	0.018	132	11.33	72 (Ambient Temperature: /)
		45%	8.73	1.73	15.08	4944	0.021	153	10.16
		50%	8.72	2.15	18.75	5256	0.025	175	9.33
		55%	8.71	2.66	23.18	5574	0.028	203	8.74
		60%	8.70	3.37	29.29	6008	0.033	236	8.04
		65%	8.68	4.18	36.28	6386	0.038	271	7.46
		70%	8.67	5.05	43.79	6744	0.043	308	7.03
		75%	8.65	5.94	51.39	7068	0.047	342	6.66
		80%	8.64	6.99	60.33	7411	0.053	380	6.30
		90%	8.60	9.31	80.03	8052	0.064	450	5.63
		100%	8.58	10.14	87.00	8255	0.067	526	5.43

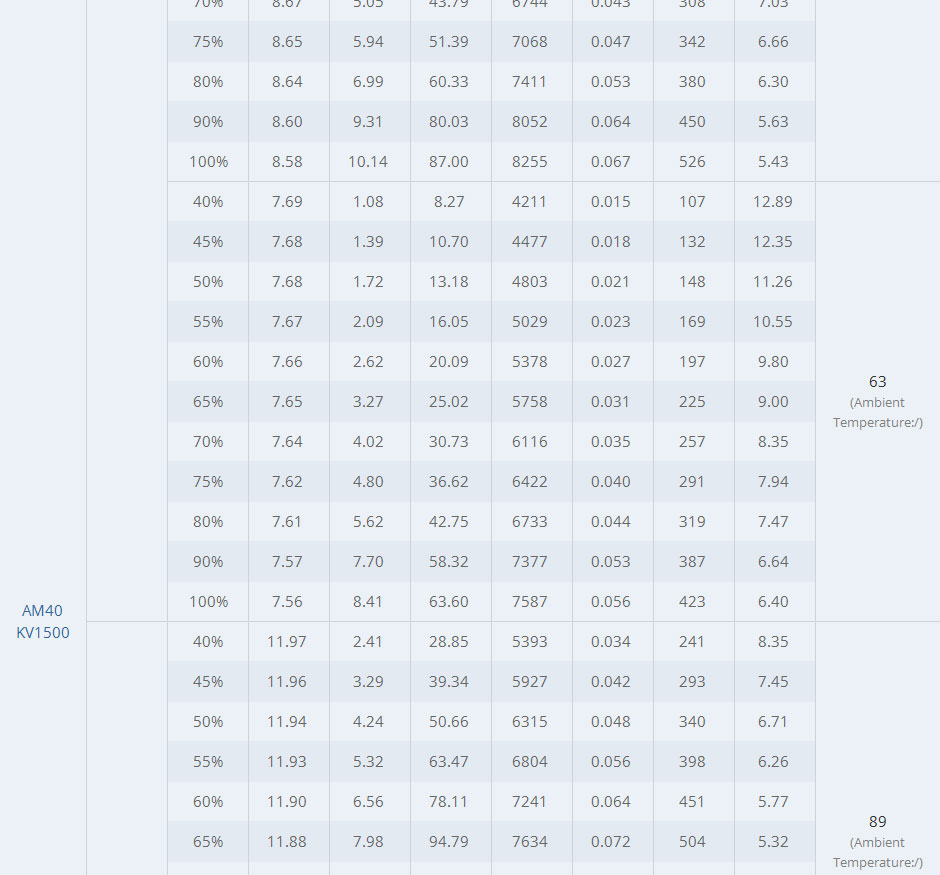

		40%	7.69	1.08	8.27	4211	0.015	107	12.89	63 (Ambient Temperature: /)
		45%	7.68	1.39	10.70	4477	0.018	132	12.35
		50%	7.68	1.72	13.18	4803	0.021	148	11.26
		55%	7.67	2.09	16.05	5029	0.023	169	10.55
		60%	7.66	2.62	20.09	5378	0.027	197	9.80
		65%	7.65	3.27	25.02	5758	0.031	225	9.00
		70%	7.64	4.02	30.73	6116	0.035	257	8.35
		75%	7.62	4.80	36.62	6422	0.040	291	7.94
		80%	7.61	5.62	42.75	6733	0.044	319	7.47
		90%	7.57	7.70	58.32	7377	0.053	387	6.64
		100%	7.56	8.41	63.60	7587	0.056	423	6.40

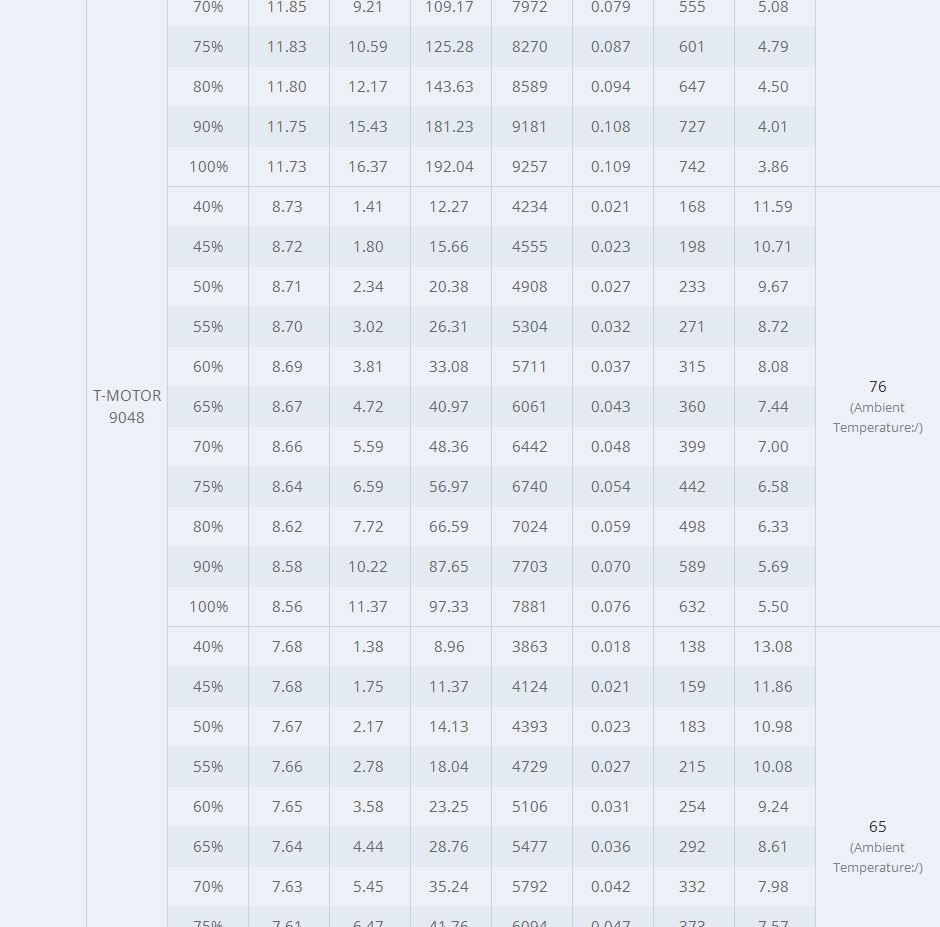

	T-MOTOR 9048	40%	11.97	2.41	28.85	5393	0.034	241	8.35	89 (Ambient Temperature: /)
		45%	11.96	3.29	39.34	5927	0.042	293	7.45
		50%	11.94	4.24	50.66	6315	0.048	340	6.71
		55%	11.93	5.32	63.47	6804	0.056	398	6.26
		60%	11.90	6.56	78.11	7241	0.064	451	5.77
		65%	11.88	7.98	94.79	7634	0.072	504	5.32
		70%	11.85	9.21	109.17	7972	0.079	555	5.08
		75%	11.83	10.59	125.28	8270	0.087	601	4.79
		80%	11.80	12.17	143.63	8589	0.094	647	4.50
		90%	11.75	15.43	181.23	9181	0.108	727	4.01
		100%	11.73	16.37	192.04	9257	0.109	742	3.86
		40%	8.73	1.41	12.27	4234	0.021	168	11.59	76 (Ambient Temperature: /)
		45%	8.72	1.80	15.66	4555	0.023	198	10.71
		50%	8.71	2.34	20.38	4908	0.027	233	9.67
		55%	8.70	3.02	26.31	5304	0.032	271	8.72
		60%	8.69	3.81	33.08	5711	0.037	315	8.08
		65%	8.67	4.72	40.97	6061	0.043	360	7.44
		70%	8.66	5.59	48.36	6442	0.048	399	7.00
		75%	8.64	6.59	56.97	6740	0.054	442	6.58
		80%	8.62	7.72	66.59	7024	0.059	498	6.33
		90%	8.58	10.22	87.65	7703	0.070	589	5.69
		100%	8.56	11.37	97.33	7881	0.076	632	5.50
		40%	7.68	1.38	8.96	3863	0.018	138	13.08	65 (Ambient Temperature: /)
		45%	7.68	1.75	11.37	4124	0.021	159	11.86
		50%	7.67	2.17	14.13	4393	0.023	183	10.98
		55%	7.66	2.78	18.04	4729	0.027	215	10.08
		60%	7.65	3.58	23.25	5106	0.031	254	9.24
		65%	7.64	4.44	28.76	5477	0.036	292	8.61
		70%	7.63	5.45	35.24	5792	0.042	332	7.98
		75%	7.61	6.47	41.76	6094	0.047	373	7.57
		80%	7.60	7.60	48.91	6394	0.052	412	7.14
90%		7.56	10.22	65.47	6989	0.061	493	6.38
100%		7.54	11.14	71.24	7117	0.064	532	6.18
Note: Motor temperature is motor surface temperature @100% throttle running 3mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)

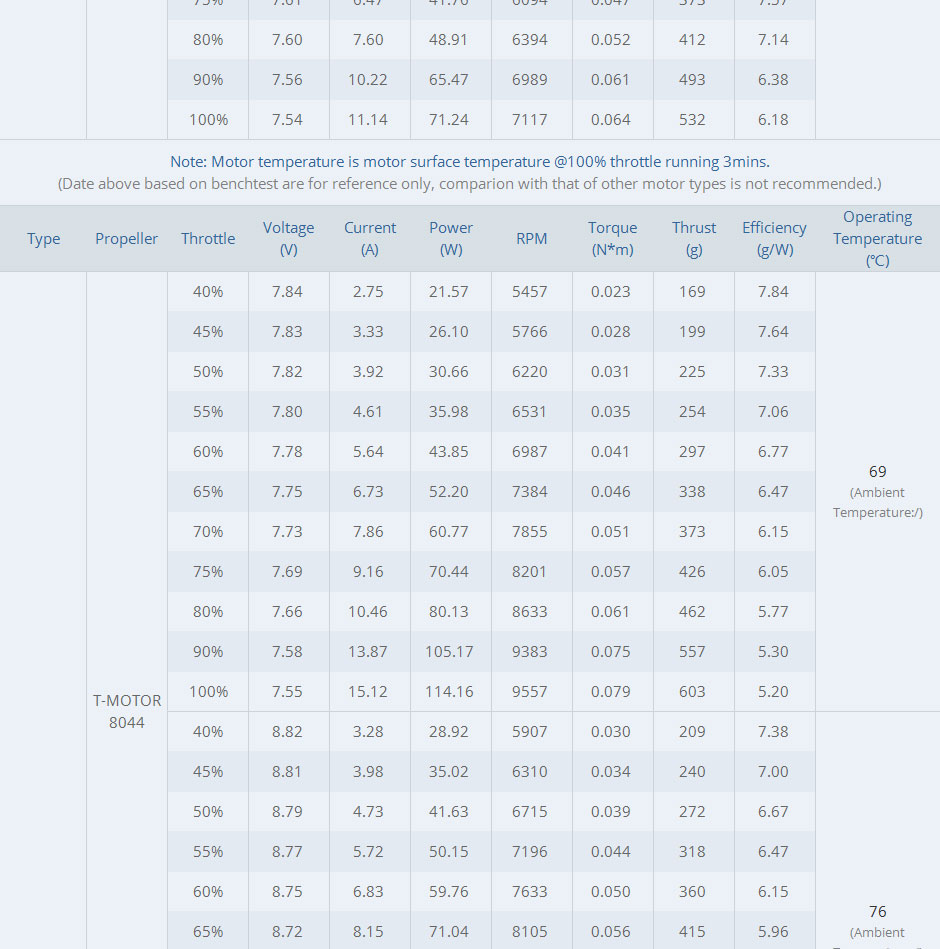

AM40 KV1850	T-MOTOR 8044	40%	7.84	2.75	21.57	5457	0.023	169	7.84	69 (Ambient Temperature: /)
		45%	7.83	3.33	26.10	5766	0.028	199	7.64
		50%	7.82	3.92	30.66	6220	0.031	225	7.33
		55%	7.80	4.61	35.98	6531	0.035	254	7.06
		60%	7.78	5.64	43.85	6987	0.041	297	6.77
		65%	7.75	6.73	52.20	7384	0.046	338	6.47
		70%	7.73	7.86	60.77	7855	0.051	373	6.15
		75%	7.69	9.16	70.44	8201	0.057	426	6.05
		80%	7.66	10.46	80.13	8633	0.061	462	5.77
		90%	7.58	13.87	105.17	9383	0.075	557	5.30
		100%	7.55	15.12	114.16	9557	0.079	603	5.20
		40%	8.82	3.28	28.92	5907	0.030	209	7.38	76 (Ambient Temperature: /)
		45%	8.81	3.98	35.02	6310	0.034	240	7.00
		50%	8.79	4.73	41.63	6715	0.039	272	6.67
		55%	8.77	5.72	50.15	7196	0.044	318	6.47
		60%	8.75	6.83	59.76	7633	0.050	360	6.15
		65%	8.72	8.15	71.04	8105	0.056	415	5.96
		70%	8.69	9.59	83.25	8487	0.063	464	5.68
		75%	8.65	11.11	96.10	8876	0.069	518	5.50
		80%	8.62	12.89	111.04	9306	0.076	565	5.19
		90%	8.52	16.87	143.74	10025	0.091	675	4.79
		100%	8.50	18.03	153.21	10323	0.094	702	4.67

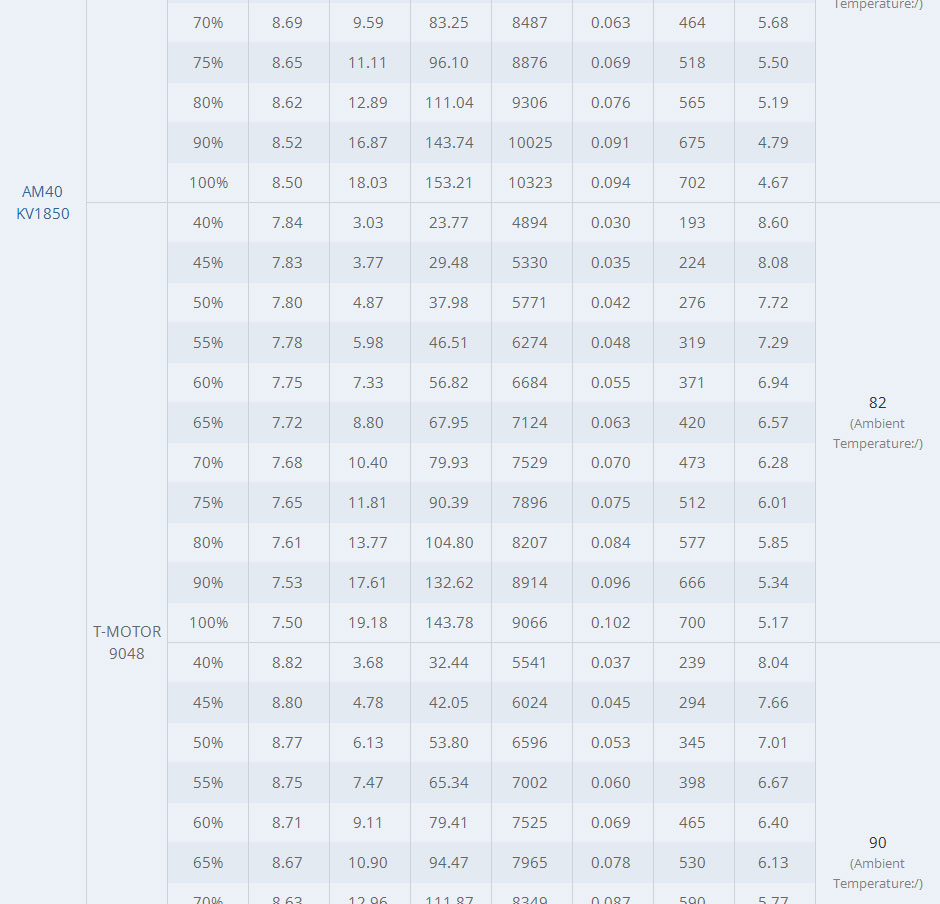

	T-MOTOR 9048	40%	7.84	3.03	23.77	4894	0.030	193	8.60	82 (Ambient Temperature: /)
		45%	7.83	3.77	29.48	5330	0.035	224	8.08
		50%	7.80	4.87	37.98	5771	0.042	276	7.72
		55%	7.78	5.98	46.51	6274	0.048	319	7.29
		60%	7.75	7.33	56.82	6684	0.055	371	6.94
		65%	7.72	8.80	67.95	7124	0.063	420	6.57
		70%	7.68	10.40	79.93	7529	0.070	473	6.28
		75%	7.65	11.81	90.39	7896	0.075	512	6.01
		80%	7.61	13.77	104.80	8207	0.084	577	5.85
		90%	7.53	17.61	132.62	8914	0.096	666	5.34
		100%	7.50	19.18	143.78	9066	0.102	700	5.17
		40%	8.82	3.68	32.44	5541	0.037	239	8.04	90 (Ambient Temperature: /)
		45%	8.80	4.78	42.05	6024	0.045	294	7.66
		50%	8.77	6.13	53.80	6596	0.053	345	7.01
		55%	8.75	7.47	65.34	7002	0.060	398	6.67
		60%	8.71	9.11	79.41	7525	0.069	465	6.40
		65%	8.67	10.90	94.47	7965	0.078	530	6.13
		70%	8.63	12.96	111.87	8349	0.087	590	5.77
		75%	8.60	14.59	125.39	8740	0.094	649	5.66
		80%	8.55	16.68	142.66	9127	0.102	705	5.41
		90%	8.45	21.34	180.28	9790	0.117	813	4.93
		100%	8.42	22.91	192.77	9908	0.121	843	4.78
Note: Motor temperature is motor surface temperature @100% throttle running 3mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
