    AM600 3D 6S Freestyle Flight Plane Motor 525KV/555KV

    129.00

    Available points: 6500 Points Points reward: 129 Points

    1.Suitable for 60"-64" 3D plane
    2.Evolution of hollowed lightweight design
    3.with up to 8298g of thrust
    KV：
    • KV525
    • KV555
    Quantity：

    129.00

    USD200 Consumption Free Shipping by International Express (Excl. Remote Areas and Special Items).

    Relevant Products

    • Detail information
    • Specifications

    Hot Products

    About T-MOTOR RC AM600 3D 6S Freestyle Flight Plane Motor


    T-Motor AM600 360g lightweight and robust, with a large diameter design for greater torque and faster response, and has been tested by professional platform and champions,

    Suitable for 3D plane from 60 to 64 inches, 8298g extreme thrust,and can be used with different propellers to achieve light load, efficient or violent flight.


    AM600 3D Hightlight:

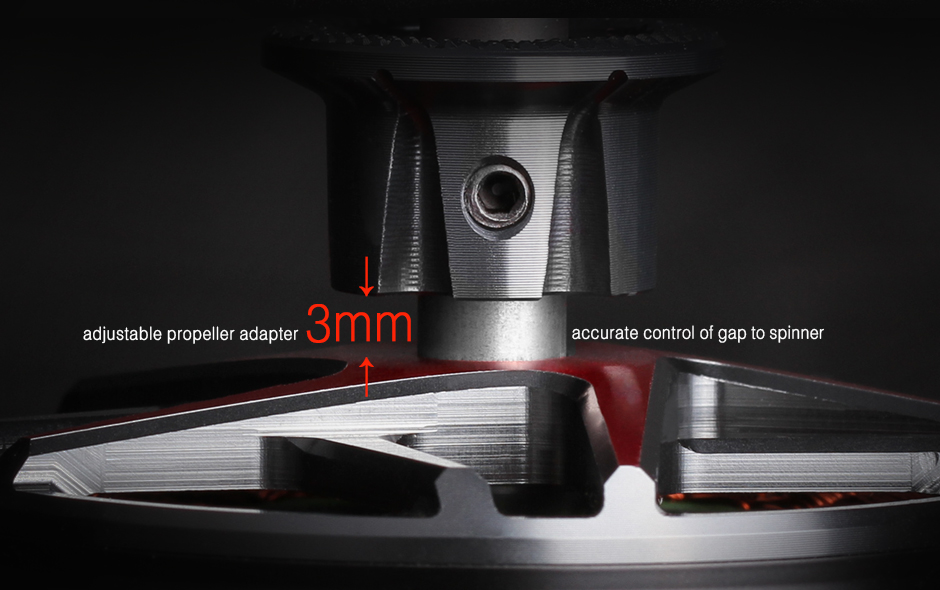

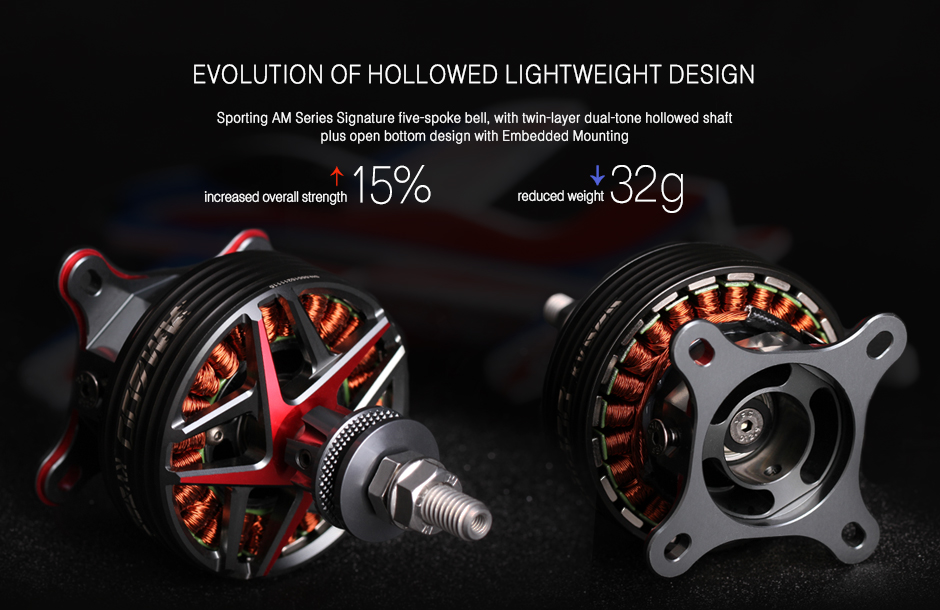

    1.The T-Motor AM600 is very well made. Thanks to the ripples on the motor bell and the hollow shaft, the motor is more robust and lighter than its predecessors.

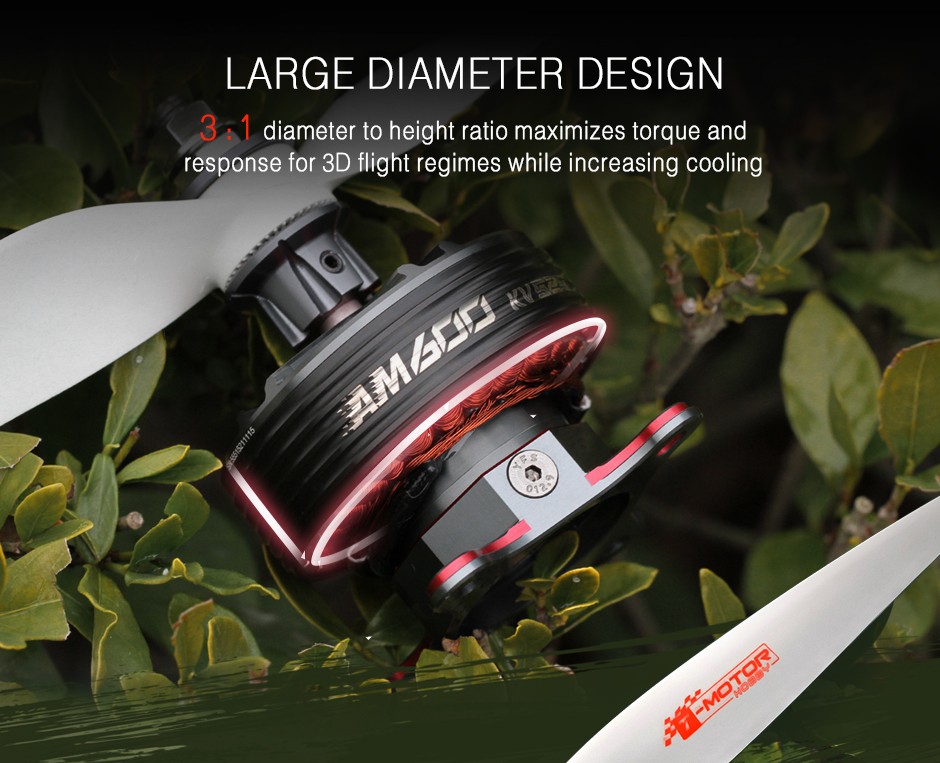

       The ratio of the diameter and engine height ratio is 3:1 for higher torque and better cooling.

    2.Continuing the AM family's weight-saving hollow design, the weight is reduced by 32g and the overall strength is increased by 15%.

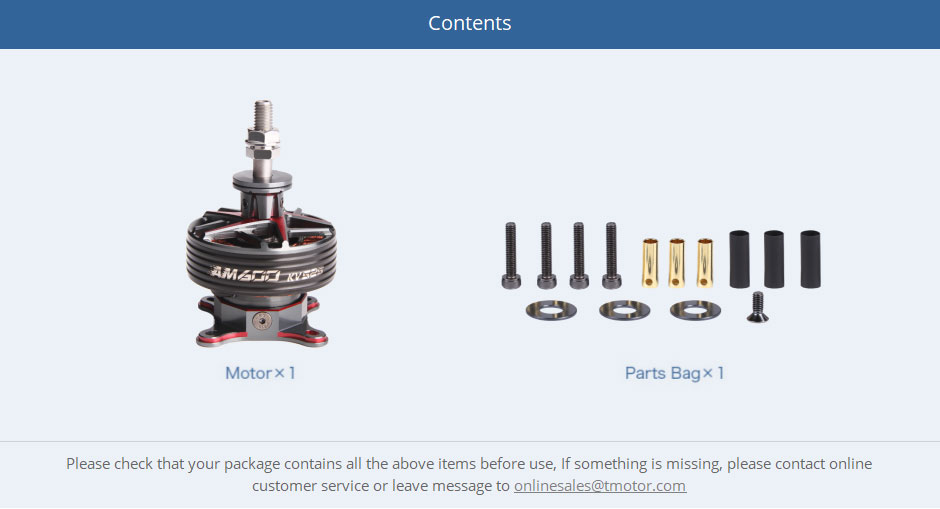

    Packing List Includes:


    1x T-MOTOR AM600 Motor

    1x Hardware pack


    Matching Guide:


    T-MOTOR AM116A ESC

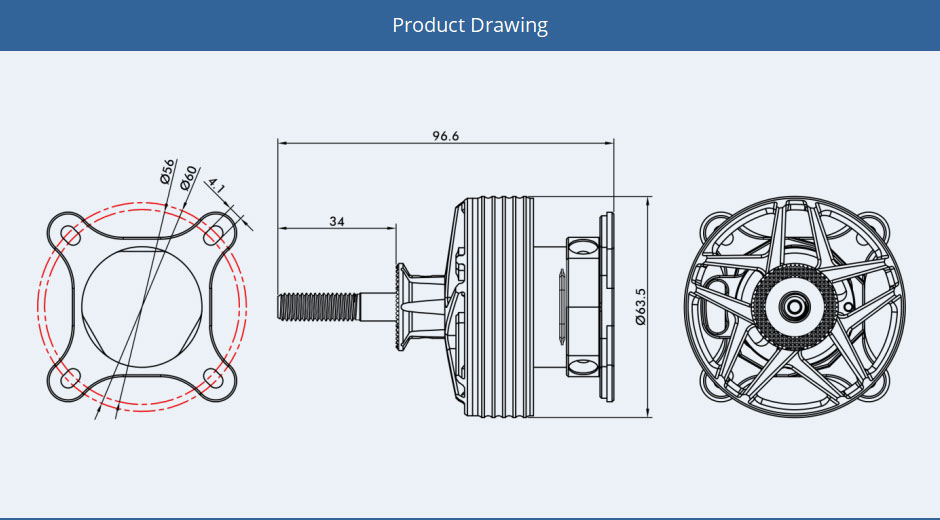

    Technical Drawing

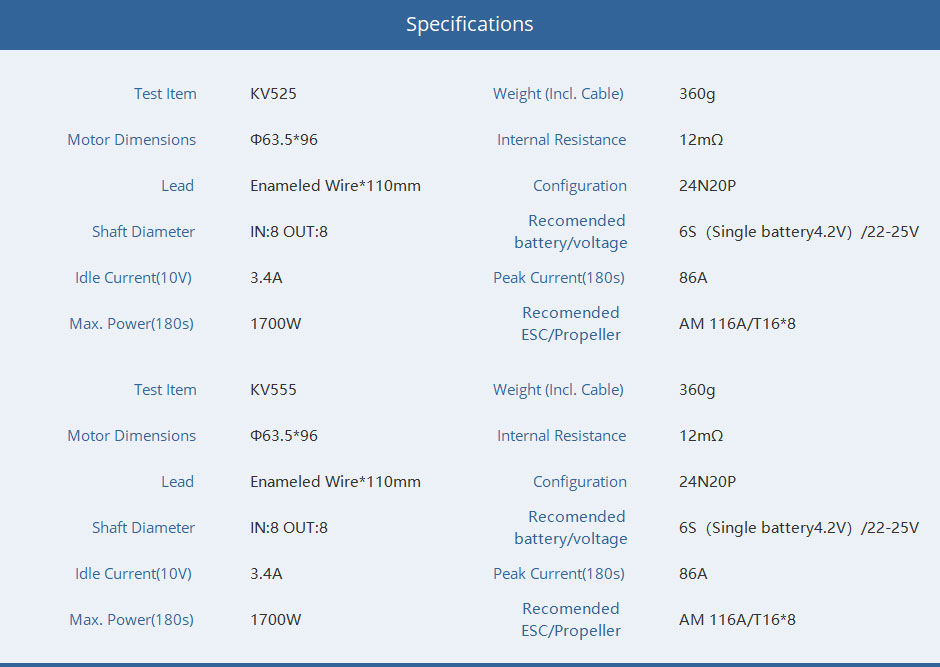

    Specification
    Test ItemKV525Weight (Incl. Cable)360g
    Motor DimensionsΦ63.5*96Internal Resistance12mΩ
    LeadEnameled Wire*110mmConfiguration24N20P
    Shaft DiameterIN:8 OUT:8Recomended battery/voltage6S（Single battery4.2V）/22-25V
    Idle Current(10V)3.4APeak Current(180s)86A
    Max. Power(180s)1700WRecomended ESC/PropellerAM 116A/T16*8
    Test ItemKV555Weight (Incl. Cable)360g
    Motor DimensionsΦ63.5*96Internal Resistance12mΩ
    LeadEnameled Wire*110mmConfiguration24N20P
    Shaft DiameterIN:8 OUT:8Recomended battery/voltage6S（Single battery4.2V）/22-25V
    Idle Current(10V)3.4APeak Current(180s)86A
    Max. Power(180s)1700WRecomended ESC/PropellerAM 116A/T16*8

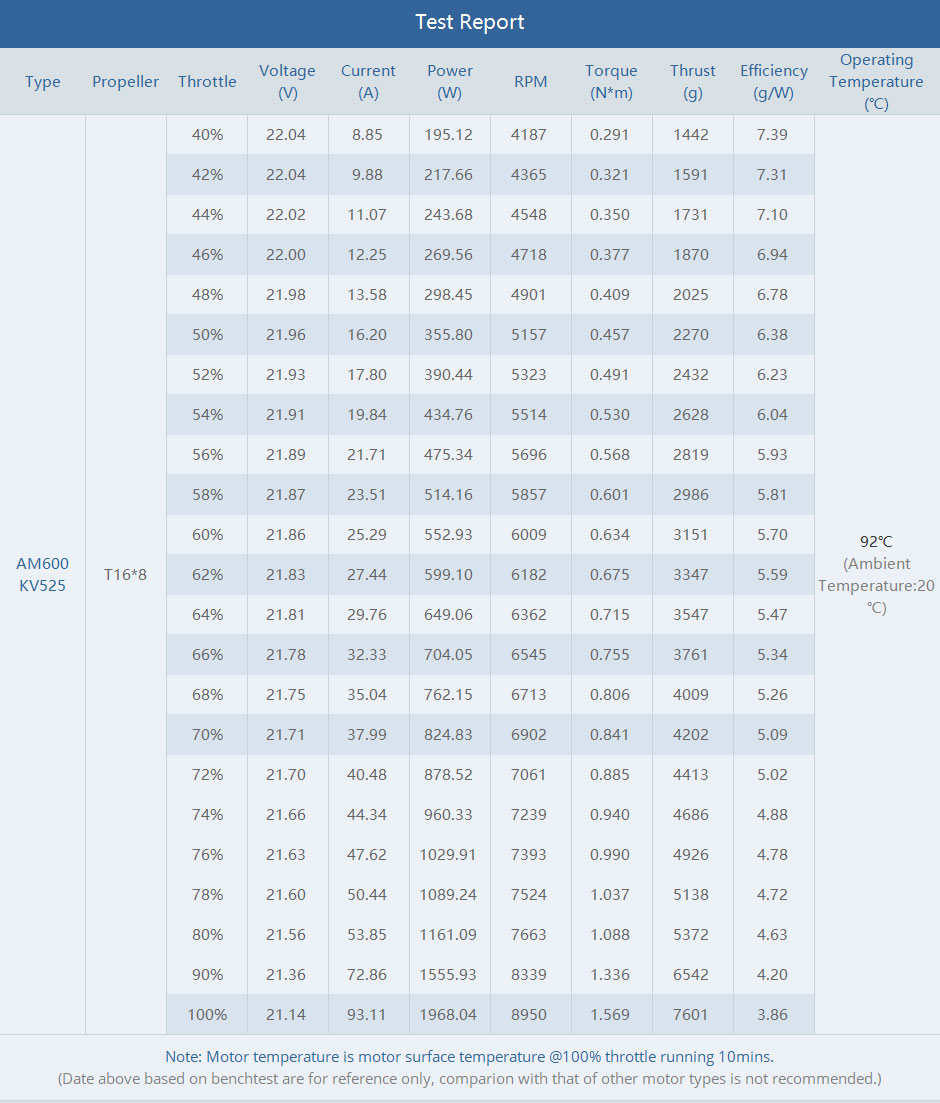

    Test Data
    TypePropellerThrottleVoltage
    (V)    		Current
    (A)    		Power
    (W)    		RPMTorque
    (N*m)    		Thrust
    (g)    		Efficiency
    (g/W)    		Operating
    Temperature
    (℃)
    AM600
    KV525    		T16*840%22.048.85195.1241870.29114427.3992℃
    (Ambient
    Temperatue:
    20℃)
    42%22.049.88217.6643650.32115917.31
    44%22.0211.07243.6845480.35017317.10
    46%22.0012.25269.5647180.37718706.94
    48%21.9813.58298.4549010.40920256.78
    50%21.9616.20355.8051570.45722706.38
    52%21.9317.80390.4453230.49124326.23
    54%21.9119.84434.7655140.53026286.04
    56%21.8921.71475.3456960.56828195.93
    58%21.8723.51514.1658570.60129865.81
    60%21.8625.29552.9360090.63431515.70
    62%21.8327.44599.1061820.67533475.59
    64%21.8129.76649.0663620.71535475.47
    66%21.7832.33704.0565450.75537615.34
    68%21.7535.04762.1567130.80640095.26
    70%21.7137.99824.8369020.84142025.09
    72%21.7040.48878.5270610.88544135.02
    74%21.6644.34960.3372390.94046864.88
    76%21.6347.621029.9173930.99049264.78
    78%21.6050.441089.2475241.03751384.72
    80%21.5653.851161.0976631.08853724.63
    90%21.3672.861555.9383391.33665424.20
    100%21.1493.111968.0489501.56976013.86
    Note: Motor temperature is motor surface temperature @100% throttle running 10mins.
    (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)

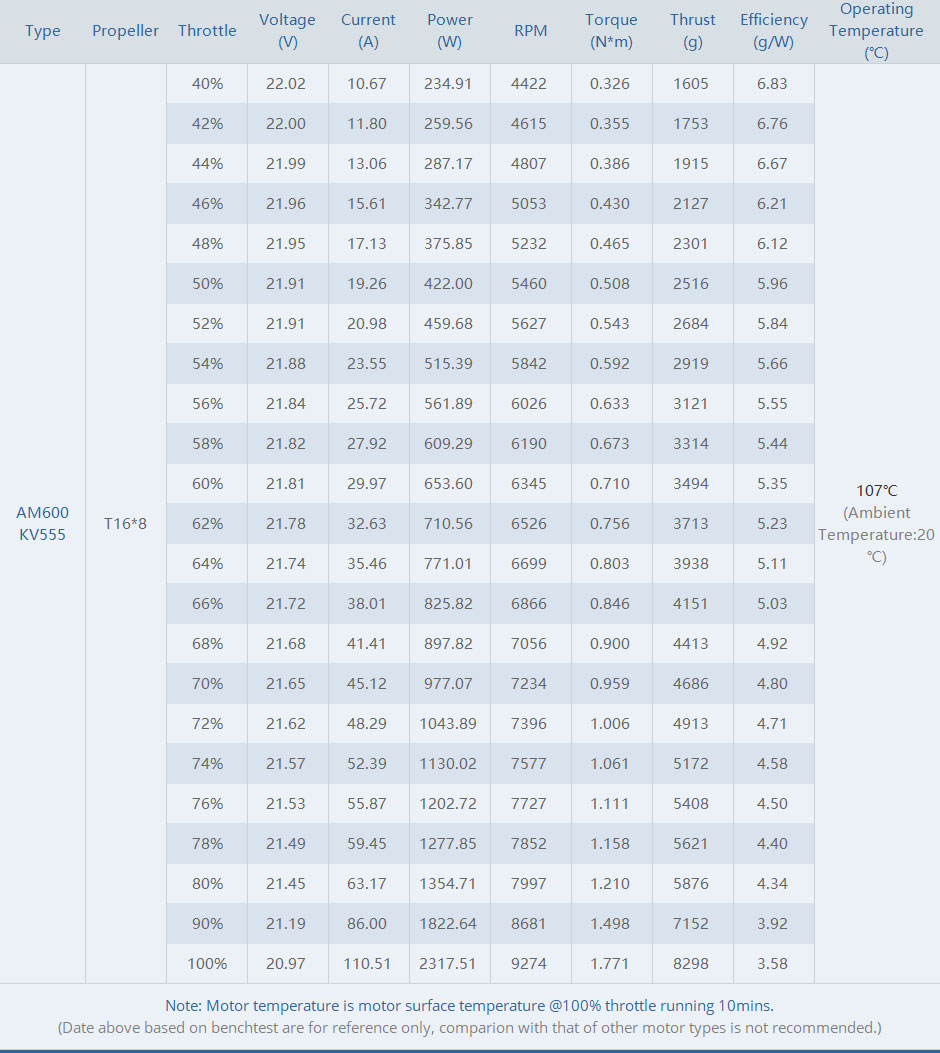

    AM600
    KV555    		T16*840%22.0210.67234.9144220.32616056.83107℃
    (Ambient
    Temperatue:
    20℃)
    42%22.0011.80259.5646150.35517536.76
    44%21.9913.06287.1748070.38619156.67
    46%21.9615.61342.7750530.43021276.21
    48%21.9517.13375.8552320.46523016.12
    50%21.9119.26422.0054600.50825165.96
    52%21.9120.98459.6856270.54326845.84
    54%21.8823.55515.3958420.59229195.66
    56%21.8425.72561.8960260.63331215.55
    58%21.8227.92609.2961900.67333145.44
    60%21.8129.97653.6063450.71034945.35
    62%21.7832.63710.5665260.75637135.23
    64%21.7435.46771.0166990.80339385.11
    66%21.7238.01825.8268660.84641515.03
    68%21.6841.41897.8270560.90044134.92
    70%21.6545.12977.0772340.95946864.80
    72%21.6248.291043.8973961.00649134.71
    74%21.5752.391130.0275771.06151724.58
    76%21.5355.871202.7277271.11154084.50
    78%21.4959.451277.8578521.15856214.40
    80%21.4563.171354.7179971.21058764.34
    90%21.1986.001822.6486811.49871523.92
    100%20.97110.512317.5192741.77182983.58
    Note: Motor temperature is motor surface temperature @100% throttle running 10mins.
    (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
    Packing List

    Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@tmotor.com " in time.
